Specifications
Brand Name :
JEWELLED
Model Number :
JLDA13
Place of Origin :
China
MOQ :
1 piece
Price :
$45-$80
Payment Terms :
TT /Paypal
Supply Ability :
100K/month
Delivery Time :
3-5 working days for sample
Packaging Details :
1pc/bubble bag, proper qty in a carton
Product name :
Embedded System Motherboard ARM Android Board PX30 1.6GHZ 2G DDR4 LVDS Display Control Board For Digital Signage JLD-A13
Network Connectivity :
Supports 10/100M Ethernet and 2.4GHz Wi-Fi, integrated with Bluetooth functionality.
Audio Features :
Stereo output with Dolby sound effects, equipped with a 3.5mm headphone jack, 2P1.25 microphone jack, and 4P2.0 speaker jack.
CPU :
Quad-core Cortex-A53 processor with a clock speed of 1.6GHz.
GPU :
IMG PowerVR GE8300, supporting OpenGL ES 3.2, Vulkan 1.1, and OpenCL 1.2.
Memory :
Supports 1G/2G/4G DDR4 options.
Storage :
eMMC storage with optional capacities of 16G-128G.
Type :
Multilayer pcb
Material :
RF4
Layer :
4
PCB Size :
118mm*75mm*1.6mm
OS :
Supports Android 10 or later versions.
Camera :
USB
Customized :
Support
USB Interfaces :
Built-in 3 USB 2.0 ports, 1 external USB 2.0 HOST port, and 1 OTG port.
Description

Embedded System Motherboard ARM Android Board PX30 1.6GHZ 2G DDR4 LVDS Display Control Board For Digital Signage JLD-A13

Summary


JLD-A13 is a motherboard used in advertising machine, automatic terminal, tablet and other fields. It uses a full A133 processor, main control includes quad-core ARM Cortex-A53 CPU and IMG PowerVR GE8300 GPU, on-board LP-DDR4 and EMMC memory. With the customized Android10 operating system, to ensure the speed and smooth running of various applications. In the reservation of conventional peripheral interface at the same time to achieve ultra-thin and ultra-small design, while with a dedicated background management information release system, can achieve a variety of different scenarios of digital signage functions


This product has some features

l Rich interface, ultra-thin design

l Support 4K video decoding.

l Support dual channel LVDS or MIPI display.

l Low power consumption design

l Dedicated background management information release system

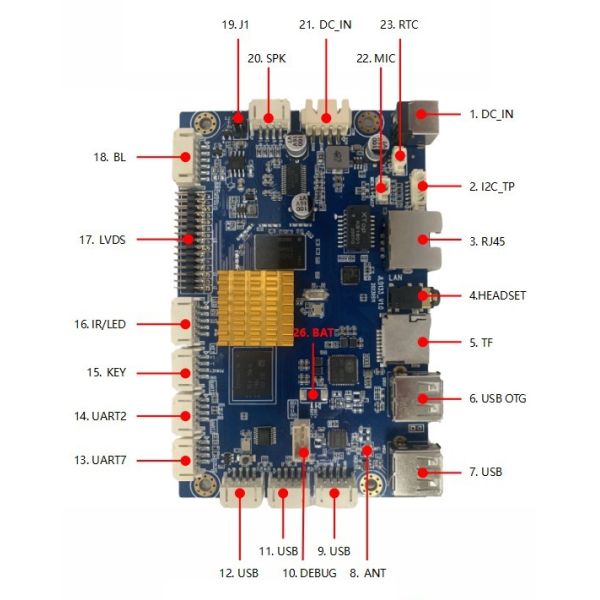

Product interface photos


Embedded ARM Android Board PX30 1.6GHZ 2G DDR4 LVDS Display Control Board For Digital Signage JLD-A13

Main functional parameters

CPU

A133 quad-core Cortex-A53 has a main frequency of 1.6GHz

GPU

IMG PowerVR GE8300 support OpenGL ES3.2, Vulkan1.1, OpenCL1.2

Memory

1G/2G/4G DDR4 option

EMMC

16G-128G option

Display

Support LVDS(dual 8 1920*1080),MIPI

Audio output

Stereo, support Dolby sound effect

audio port

3.5mm headphone jack, 2P1.25 microphone jack, 4P2.0 speaker jack

Ethernet

Support 10/100M cable

Wi-Fi

2.4G WiFi BT

OS

Android 10 or later

TP

I2C and USB interface touch screen

Memory card type

TF-CARD

USB interface

Built-in USB 2.0 sockets (3), external USB 2.0 HOST (1), external OTG (1)

serial port

3 in total, types option,,TTL(1-3),RS232(0-2)

RTC

Support power-off clock memory and automatic power on and off

Camera

USB Camera

PCB size

118mm*75mm*1.6mm

Power supply

DC12V3A input

Adaptive temperature

-20°-80℃



Our motherboard has a wide range of application scenarios. The application scenario of the motherboard depends on the function requirements of our customers.


Certificate

Embedded ARM Android Board PX30 1.6GHZ 2G DDR4 LVDS Display Control Board For Digital Signage JLD-A13


Packing

1. At Buyer's Request;
2. Inner, vacuum package;
3.Outer, standard export carton;



FAQ

Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.


Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
