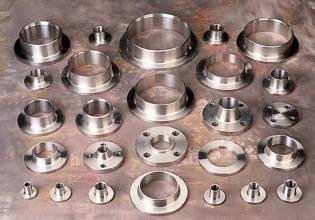

304 316 316L Slip On Stainless Steel Forged Steel Flanges For Oil And Gas Use
304 316 316L Slip On Stainless Steel Forged Steel Flanges For Oil And Gas Use
304 316 316L Slip On Stainless Steel Forged Steel Flanges For Oil And Gas Use
304 316 316L Slip On Stainless Steel Forged Steel Flanges For Oil And Gas Use
304 316 316L Slip On Stainless Steel Forged Steel Flanges For Oil And Gas Use
304 316 316L Slip On Stainless Steel Forged Steel Flanges For Oil And Gas Use
Specifications
Place of Origin :
WENZHOU
Certification :
ISO9001: 2008, CE
Model Number :
φ500mm-φ3500mm
MOQ :
10pc
Price :
negotiation
Packaging Details :
Usually packing by plywood case suit for sea delivery
Delivery Time :
20 DAYS after advanced 30%-50% payment or according to customers requirement
Payment Terms :
L/C,T/T,FOB.CNF.CIF.PAYPAL,WESTUNTI
Supply Ability :
flexible
Description
Features:High StrengthApplication:Petroleum|Chemical|Pivoting Support|Overhaul Need|Machinery|Engineering|Electric Power|Metallurgy|Sh
Brand Name:BAIYEColor:Customized
Dimensions:According To DrawingsForging Machine:Forging Hydraulic Press|Ring Roll
Forging Weight:100kg|100kg-12tonMachinery:CNC-Machine
Material:Carbon Steel|Stainless Steel|Alloy SteelMaterial Standard:ANSI
Product Name:Forged Steel Flange



304 316 316L Slip On Stainless Steel Forged Steel Flanges For Oil And Gas Use

Description:

Flange Type

Welding Neck ,
Slip On,
Blind Flange
Socket welding Flange
Lap Joint Flange
Plate/Flat Flange
Orifice Flange
Threaded Flange
Loose plate Flange
Spectacle Flange
Anchor Flange
SAE Flange

Face FinishRF,FF,RTJ,TF,GF
Standard&Class


(1)DIN 2573 PN6 DIN 2576 PN10 DIN2502 PN16 DIN2503 P25-40 DIN2566 PN16,DIN2631-2635
(2)ANSI B16.5,A105 150LB 300LB 400LB 600LB 900LB 1500LB 2500LB
WNRF SORF BLRF THRF SWRF LJRF
(3)JIS SS400 OR SF440 5K 10K 16K 20K 30K SOPFF SOHFF BLFF
(4) UNI 2276 2277 2278 6084 6089 6090 2544 2282 6091-6093
(5) EN1092 PN6 PN10 PN16 PN25 PN40 TYPE1 TYPE2 TYPE 5 TYPE 12 TYPE 13
(6)BS4504 SANI1123 1000/3 1600/3 2500/3 T/D T/E T/F
(7) AS2129 TABLE D TABLE H TABLE E
(8) GOST 12820-80 12821-80

Material


Carbon Steel : ASTM A105
A694 F42/ 46 /52 /56 / 60 / 65 / 70 /
A350 LF3/ A350 LF2, Etc
RST37.2 OR C22.8,P245GH,P65GH,A266CL2,S235JR.S275R,S355JR
Alloy Steel : ASTM A182 F1/ F5/ F9/ F11/ F22/ F91/ Etc.
Stainless Steel: ASTM A182 F304/ 304L/ 304H/ 316/ 316L 317/ 317L/ 321 / 310 Etc

Packaging


Wooden Cases, wooden or steel pallet plastic bag or as per customers requirement

Applications range


petroleum, smelting, foodstuff, power, papermaking, chemical, medical equipment, aviation, boiler heat, exchanger, gas metallurgy, shipbuilding, construction, etc.


Applications:
The product widely applies in the petroleum, chemical, the electric power, the metallurgy, the shipbuilding, the bearing, the pivoting support and the overhaul need.
Superiority
1. We had already passed the authentification by the ISO90012008, and established a completed set of quality assurance system.
2. Under such a complete set of quality assurance systems, there is a complete set of regulations for ordering, order handling, quality design, purchasing raw materials, working out production plan,production,test and inspection,packaging,storage,delivering, etc
3. We also have a complete set of equipment and techniques for testing and controlling the performance
of the forging products,which ensures our product quality to take a leading position among the products
in domestic market and reach the international standard.
KCM TECHNOLOGY GROUP CO.,LTD
Address: Bin Hai Economic Development Industrial Zone.
WenZhou,ZheJiang Province,China

Tel :+0086-577-86879200
Fax :+86-577-86918728
Phone :+86 13175600492
Skype :Andy YOU 229
Web:www.kcmtech-valve.com&www.andy-valve.com
Email:admin@kcmtech-valve.com&sales@andy-valve.com
Main products:Cast steel(iron) gate check globe ball valve,strainer(API600)
Forged steel gate,globe,positionswing check valve(API602)
Forged steel ball valve,SS gate glove check ball valve(API603)
Stainless steel Camlock&grooved couplings,screwed fittings
-----------------------------------------------------------------------
