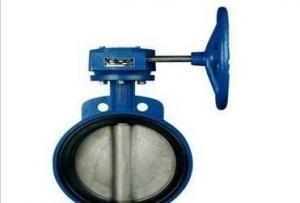

Resilient Seal Wafer Butterfly Valves DN300 PN10 For Potable Water,CAST IRON,CI,PN16,JIS 10K
Resilient Seal Wafer Butterfly Valves DN300 PN10 For Potable Water,CAST IRON,CI,PN16,JIS 10K
Resilient Seal Wafer Butterfly Valves DN300 PN10 For Potable Water,CAST IRON,CI,PN16,JIS 10K
Resilient Seal Wafer Butterfly Valves DN300 PN10 For Potable Water,CAST IRON,CI,PN16,JIS 10K
Specifications
Brand Name :
OEM
Model Number :
D371J-10
Certification :
ISO 9001
Place of Origin :
wenzhou
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
90,0pcs per month
Delivery Time :
usually within 35 days after received your payment
Packaging Details :
Usually packing by plywood case suit for sea delivery
Product Name :
butterfly valve
Size :
DN50 ~DN3000
Pressure :
PN10/16/125lbs/150lbs/JIS 5K/JIS10K
Standard :
DIN / BS / AWWA / JIS
Temperature :
-20~120 C
Body :
Cast iron/ ductile iron
Description
Product Advantages:
1) Small in size and light in weight and maintaince.
It can be mounted whereever needed.
2) Simple, compact structure, quick 90 degree on-off operation.
3) Disc has two-way bearing, perfect seal, without leakage under
the pressure test.
4) Flow curve tending to straight-line. Excellent regulation performance.
5) Various kinds of materials, applicable to different medium.
6) Strong wash and brush resistance and can fit to bad working condition.


Size: DN50 - 3000
Temperature: -15℃ - 150℃
Pressure: 1.0MPa/1.6MPa

Materials
Materials of Body : Ductile Iron (GGG40, GGG50). Cast Iron (GG25), Stainless Steel


Materials of Disc : Stainless Steel. Nickel Plated, Ductile Iron, Ductile Iron Coated Plastic,

Titanium Steel, Copper Alloy etc


Materials of Seat : Ethylene-Propylene-Diene Monomer (EPDM), Polytetrafluoroethylene (PTFE),

Nitrile Rubber (NBR), Chloroprene, Chlorosulfonated Polyethylene (Hypalon),

Silicon, Fluoroelastomer (VITON) , Caoutchouc etc.


Materials of Stem : Stainless Steel. Carbon Steel ,2Cr13


A butterfly valve is a type of flow control device, typically used to regulate a fluid flowing through a section of pipe.
The valve is similar in operation to a ball valve. A flat circular plate is positioned in the center of the pipe.
The plate has a rod through it connected to an actuator on the outside of the valve. Rotating the actuator turns the
plate either parallel or perpendicular to the flow. Unlike a ball valve, the plate is always present within the flow,
therefore a pressure drop is always induced in the flow regardless of valve position.


Wafer Rubber Seated Butterfly Valves

DN
(mm)		PN
(MPa)		Connection dimensions(mm)
LDD1Zφd
401.0/1.6431451104-18
50431651254-18
65461851454-18
80462001604-18/8-18
100522201808-18
125562502108-18
150562852408-22
200603402958-22/12-22
25068395/405350/35512-22
30078445/460400/41012-22
3501.07850546016-22
40010256551516-26
45011461556520-26
50012767062020-26
60015478072520-30
70016589584024-30
800190101595024-33
9002031115105028-33
10002161230116028-39
12002541455138032-39
12000.6/0.252541400/13751340/132032-34/32-30
14002791620/15751560/162036-34/36-30
16003181820/17851760/173040-34/40-30
18003562045/19851970/193044-41/44-30
20004062265/21852180/213048-48/48-30


Resilient Seal Wafer Butterfly Valves DN300 PN10 For Potable Water,CAST IRON,CI,PN16,JIS 10K
