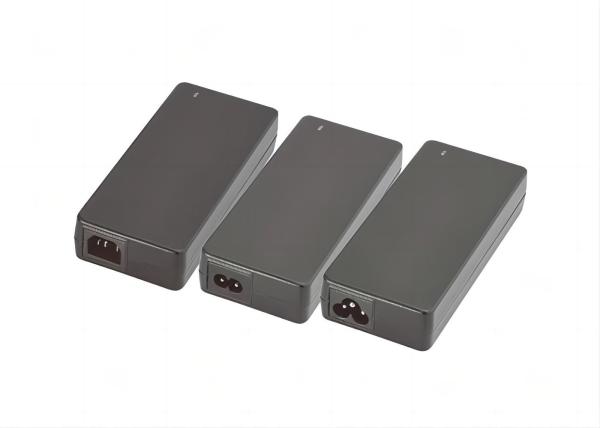

APS93 EN/IEC 62368 Certified 80W~100W AC DC Adapter 12V 24V 36V Switching Power Supply 48V 56V Desktop Transformer
APS93 EN/IEC 62368 Certified 80W~100W AC DC Adapter 12V 24V 36V Switching Power Supply 48V 56V Desktop Transformer
APS93 EN/IEC 62368 Certified 80W~100W AC DC Adapter 12V 24V 36V Switching Power Supply 48V 56V Desktop Transformer
APS93 EN/IEC 62368 Certified 80W~100W AC DC Adapter 12V 24V 36V Switching Power Supply 48V 56V Desktop Transformer
Specifications
Place of Origin :
Shenzhen
Brand Name :
ANENpower
Certification :
UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Model Number :
APS93
MOQ :
500pcs
Packaging Details :
PE bag / White box / Custom made
Delivery Time :
18~25 working days after receiving the deposit
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Price :
Please contact our Sales
Input Range :
100 to 240Vac, 50/60Hz
Power Range :
80 ~ 100W max
Certificate :
UL/cUL, FCC, CB, GS, CE, TUV, PSE, KC, KCC, SAA, RCM, UKCA
Application :
Consumer Electronic Devices · Telecommunication Devices · Office Facilities · Industrial Equipments
MTBF :
＞100,000 hours
Size :
130.55L x 58.8W x 25.4H (mm)
Description

APS93 EN/IEC 62368 Certified 80W~100W AC DC Adapter 12V 24V 36V Switching Power Supply 48V 56V Desktop Transformer

APS93 is a 40~65W compact size highly reliable Desktop style single-output green adaptor series, which is compact and convenient for carry. APS93 is a class II power unit, accepting the input range from 100VAC to 240VAC. The whole series provides different models with output voltages ranging between 12VDC and 56VDC that it can satisfy the demands for various types of consumer electronic devices.

APS93 is compliant with the lastest U.S energy regulation EISA 2007/DOE(Level VI), EU ErP and CoC version 5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.​

1, LPS Compliance
2, AC input power suitable for the world
3, Meet DOE/CEC/ERP Level VI
4, Over voltage, over current, short circuit and over load protection
5, Per pieces adapter is 100% full load -burn in test (4 hours)
6, All the products have passed the full load test process aging
7, Low interference & noise
8, Standard: EN/IEC 62368, EN/IEC 61558, EN/IEC 60601 or EN/IEC 61347
9, Certification: UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA

Input Range 100 ~ 240Vac, 50 / 60Hz
Power Range 80 ~ 100W max
Output Range 12 ~ 56V / 1820mA ~ 6.67A
Protection Over load protection
Over voltage protection
Short circuit protection
Safety Approvals UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Standard EN/IEC 62368, EN/IEC 61558, EN/IEC 61347, EN/IEC 60601 for your selection
Efficiency Level VI
AC plug EU / US / UK / AU and Others for your selection
Standard DC Connector 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 / 4.0*1.7 / 3.5*1.35 / 6.3*3.0 with pin inside
Operating Temperature Range 0--40°C
Storage Temperature Range -20 --- 85°C
High Humidity Operation + 40 °C and 90 ~ 95% Humidity
Net weight About 350g per unit
MTBF 100,000 hours
Application Consumer Electronic Devices · Telecommunication Devices · Office Facilities · Industrial Equipments
Packing PE bag + Carton or White Box + Carton or As your Request

APS93 EN/IEC 62368 Certified 80W~100W AC DC Adapter 12V 24V 36V Switching Power Supply 48V 56V Desktop Transformer

MODEL No. MAX. OUTPUT
POWER (W)		 OUTPUT
VOLTAGE (Vo)		 MIN.
LOAD (Io)		 MAX.
LOAD (Io)		 LOAD
REGULATION		 LINE
REGULATION		 RIPPLE &
NOISE
APS93A 80W 12~18V 0A 6.66A ± 5% ± 1% 270mV
APS93B 80W 19~24V 0A 4.21A ± 5% ± 1% 360mV
APS93C 80W 32~42V 0A 2.5A ± 5% ± 1% 630mV
APS93D 80W 44~56V 0A 1.81A ± 5% ± 1% 840mV
APS93E 90W 12~18V 0A 7.5A ± 5% ± 1% 270mV
APS93F 90W 19~24V 0A 4.73A ± 5% ± 1% 360mV
APS93G 90W 32~42V 0A 2.81A ± 5% ± 1% 630mV
APS93H 90W 44~56V 0A 2.04A ± 5% ± 1% 840mV
APS93J 100W 32~42V 0A 3.12A ± 5% ± 1% 630mV
APS93K 100W 44~56V 0A 2.27A ± 5% ± 1% 840mV
