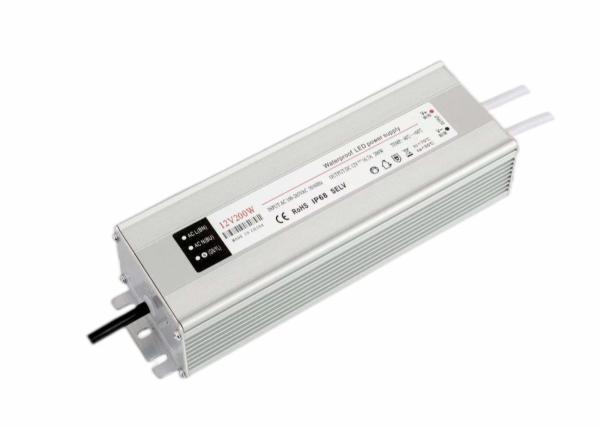

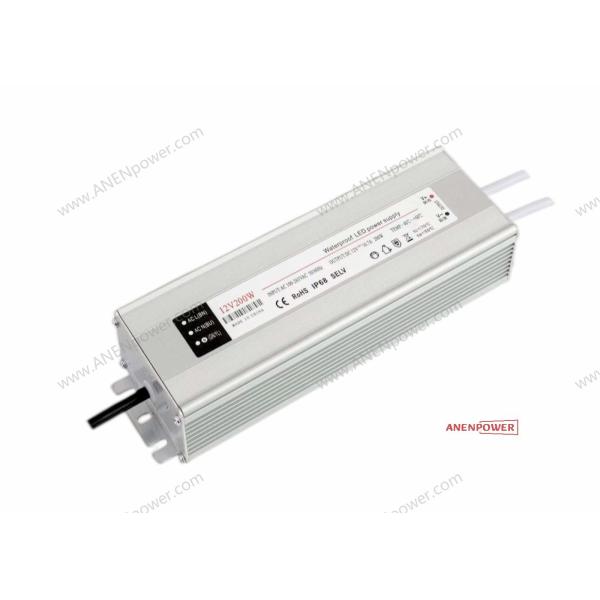

12V/24V/36V/48V Waterproof LED Power Supply - 200W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
12V/24V/36V/48V Waterproof LED Power Supply - 200W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
Specifications
Brand Name :
ANENpower
Model Number :
APL200W
Certification :
UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Place of Origin :
Shenzhen
MOQ :
500pcs
Price :
Please contact our Sales
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Delivery Time :
18~25 working days after receiving the deposit
Packaging Details :
PE bag / White box / Custom made
Input :
100~277Vac, 50/60Hz
Output Power :
200W Max
Output Voltage :
12V/ 24V/ 36V /48V
Safety Approvals :
UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA
Standard :
EN/IEC 61347, UL 1310
Applicants :
LED Lighting Advertising, LED Display, LED Strips, etc.
Warranty :
3~5 Years
Waterproof Grade :
IP67 / IP68
Description

12V/24V/36V/48V Waterproof LED Power Supply - 200W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver

Our 12V/24V/36V/48V Waterproof LED Power Supply is designed to provide reliable power for outdoor lighting applications, featuring a 200W output and an IP67 waterproof rating. Whether for street lighting, garden illumination, or industrial use, this LED driver ensures consistent and stable performance, even in harsh weather conditions.

Built to withstand the toughest environments, this power supply is fully protected against dust and water, making it ideal for outdoor installations. The IP67 rating ensures long-lasting durability, so your LED lighting systems can perform continuously, regardless of rain, snow, or dust.

With multiple voltage options and a 200W output, this LED power supply is versatile enough to support a wide range of lighting needs. It delivers reliable power to high-performance LED fixtures, ensuring smooth operation and extended lifespan for any outdoor lighting project.

MODEL DETAIL SPEC. APL200W-12016660 APL200W-2408330 APL200W-3605550 APL200W-4804160
INPUT Input Voltage: 100-240VAC/200-240VAC
Input Frequency: 50/60Hz
Inrush Current: 65A/230VAC at full load
AC Current: 2.27A/115VAC 1.14A/230VAC
Leakage Current: ＜0.25mA/240VAC
Efficiency: 88%
OUTPUT DC Voltage: 12V 24V 36V 48V
Rated Current: 16.66A 8.33A 5.55A 4.16A
Rated Power: 200W
Voltage Tolerance: ±5.0%
Ripple and Noise: 120mVp-p 240mVp-p 360mVp-p 480mVp-p
Line Regulation: ±3%
Load Regulation: ±5%
Setup, Rise, Hold Up time: 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTAL Operating Temperature: -20 ~ +50 (Refer to "Derating Curve")
Storage Temp: -40℃ ~ 85℃
Storage Humidity: 20 ~ 95% RH
Working Humidity: 20 ~ 95% RH non-condensing
PROTECTION Over Load: Above 105%-130% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V
36V:41.4 ~ 48.6V 48V:55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature: Shut down o/p voltage, re-power on to recover
SAFETY & EMC Safety Regulations: EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
Withstand Voltage: I/P-O/P:3.75KVAC
Harmonic EN61000-3-2 Class C EN61000-3-3
EMI: Compliance to EN55015
EMS: compliance to 61547:2009
OTHER MTBF: 200,000 Hours Minimum at Full Load at 25℃ Ambient
Size: 220*70*42mm
Weight: 2600g / pcs
Packaging: 5PCS/CTN

12V/24V/36V/48V Waterproof LED Power Supply - 200W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
