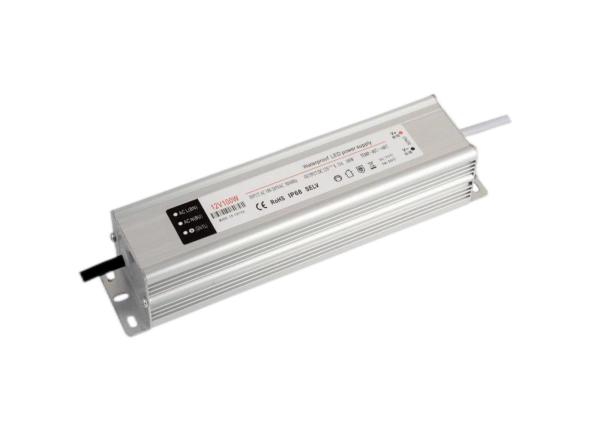

12V/24V/36V/48V LED Waterproof Power Supply - 100W Output, IP67 Rated, Reliable Outdoor Lighting Driver
12V/24V/36V/48V LED Waterproof Power Supply - 100W Output, IP67 Rated, Reliable Outdoor Lighting Driver
Specifications
Brand Name :
ANENpower
Model Number :
APL100W
Certification :
UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Place of Origin :
Shenzhen
MOQ :
500pcs
Price :
Please contact our Sales
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Delivery Time :
18~25 working days after receiving the deposit
Packaging Details :
PE bag / White box / Custom made
Input :
100~277Vac, 50/60Hz
Output Power :
100W Max
Output Voltage :
12V/ 24V/ 36V /48V
Safety Approvals :
UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA
Standard :
EN/IEC 61347, UL 1310
Applicants :
LED Lighting Advertising, LED Display, LED Strips, Etc.
Warranty :
3~5 Years
Waterproof Grade :
IP67 / IP68
Description

12V/24V/36V/48V Waterproof LED Power Supply - 100W Output, IP67 Rated | Reliable Outdoor Lighting LED Driver

Power your outdoor lighting with confidence using our 100W Waterproof LED Power Supply. This IP67-rated LED driver is engineered to deliver consistent, safe, and efficient performance in demanding outdoor environments. Perfect for residential and commercial lighting projects, it ensures reliability and durability for long-lasting use.

Key Features:

  • Multiple Voltage Options: Supports 12V, 24V, 36V, and 48V outputs, compatible with various LED lighting systems.

  • 100W High Efficiency: Delivers stable power output to support high-performance LED lights.

  • Weatherproof and Durable: IP67-rated enclosure provides excellent protection against dust, water, and harsh weather.

  • Built for Longevity: Designed with high-quality materials for long-term outdoor use.

  • Certified Safety: CE and ROHS certified for compliance with global safety and environmental standards.

Applications:

  • Outdoor LED strip lighting

  • Garden and pathway lighting

  • Landscape and architectural illumination

  • Commercial signage and billboards

  • Decorative LED systems for outdoor events

Compact, lightweight, and robust, this 100W LED driver is easy to install and built to withstand tough outdoor conditions. Whether for residential projects or large-scale commercial applications, it delivers dependable power where you need it most. Choose our 100W Waterproof LED Power Supply for efficient, reliable, and durable outdoor lighting solutions. Brighten your world, rain or shine.

MODEL DETAIL SPEC. APL100W-1208333 APL100W-2404160 APL100W-3602777 APL100W-4802083
INPUT Input Voltage: 100-240VAC/200-240VAC
Input Frequency: 50/60Hz
Inrush Current: 65A/230VAC at full load
AC Current: 0.85A/115VAC 0.42A/230VAC
Leakage Current: ＜0.25mA/240VAC
Efficiency: 88%
OUTPUT DC Voltage: 12V 24V 36V 48V
Rated Current: 8333mA 4160mA 2777mA 2083mA
Rated Power: 100W
Voltage Tolerance: ±5.0%
Ripple and Noise: 120mVp-p 240mVp-p 360mVp-p 480mVp-p
Line Regulation: ±3%
Load Regulation: ±5%
Setup, Rise, Hold Up time: 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTAL Operating Temperature: -20 ~ +50 (Refer to "Derating Curve")
Storage Temp: -40℃ ~ 85℃
Storage Humidity: 20 ~ 95% RH
Working Humidity: 20 ~ 95% RH non-condensing
PROTECTION Over Load: Above 105%-130% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V
36V:41.4 ~ 48.6V 48V:55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature: Shut down o/p voltage, re-power on to recover
SAFETY & EMC Safety Regulations: EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
Withstand Voltage: I/P-O/P:3.75KVAC
Harmonic EN61000-3-2 Class C EN61000-3-3
EMI: Compliance to EN55015
EMS: compliance to 61547:2009
OTHER MTBF: 200,000 Hours Minimum at Full Load at 25℃ Ambient
Size: 190*48*30mm
Weight: 1066g / pcs
Packaging: 20PCS/CTN

12V/24V/36V/48V LED Waterproof Power Supply - 100W Output, IP67 Rated, Reliable Outdoor Lighting Driver
