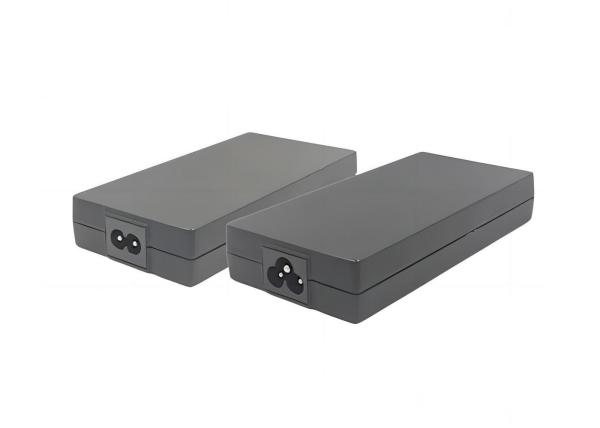

EN/IEC 62368 Certified 150W Max SMPS 24V 48V AC DC Adapter 12V 34V Power Supply 19V Desktop Transformer
EN/IEC 62368 Certified 150W Max SMPS 24V 48V AC DC Adapter 12V 34V Power Supply 19V Desktop Transformer
Specifications
Brand Name :
ANENpower
Model Number :
APS153
Certification :
UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Place of Origin :
Shenzhen
MOQ :
500pcs
Price :
Please contact our Sales
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Delivery Time :
18~25 working days after receiving the deposit
Packaging Details :
PE bag / White box / Custom made
Input Range :
100 ~ 240Vac, 50 / 60Hz
Power Range :
135 ~ 150W
Certificate :
UL/cUL, FCC, CB, GS, CE, TUV, PSE, KC, KCC, SAA, RCM, UKCA
Application :
Consumer Electronic Devices · Telecommunication Devices · Office Facilities · Industrial Equipments
MTBF :
＞100,000 hours
Case Size :
138.2L x 68.3W x 23.5H mm
Description

EN/IEC 62368 Certified 150W Max SMPS 24V 48V AC DC Adapter 12V 34V Power Supply 19V Desktop Transformer

Experience reliable and efficient power delivery with our EN/IEC 61558 certified 150W max SMPS (Switched-Mode Power Supply) adapter. Designed to accommodate a range of voltage outputs—24V, 48V, 12V, 34V, and 19V—this versatile power supply is ideal for various electronic devices and applications.

With its compact design and advanced switching technology, this desktop transformer provides stable and efficient AC to DC conversion, ensuring consistent performance for your equipment. The EN/IEC 61558 certification guarantees compliance with international safety standards, giving you peace of mind when powering sensitive devices.

Whether for industrial, commercial, or personal use, this high-quality power adapter is built to deliver reliable performance and adaptability to meet your diverse power needs. Choose this robust 150W SMPS power supply for a dependable and efficient solution to your power requirements.

Input Range 100 ~ 240Vac, 50 / 60Hz
Power Range 135 ~ 150W max
Output Range 12 ~ 56V / 2.96A ~ 11.66A
Protection Over load protection
Over voltage protection
Short circuit protection
Safety Approvals UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Standard EN/IEC 62368, EN/IEC 61558, EN/IEC 61347, EN/IEC 60601 for your selection
Efficiency Level VI
AC plug EU / US / UK / AU and Others for your selection
Standard DC Connector 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 / 4.0*1.7 / 3.5*1.35 / 6.3*3.0 with pin inside
Operating Temperature Range 0--40°C
Storage Temperature Range -20 --- 85°C
High Humidity Operation + 40 °C and 90 ~ 95% Humidity
Net weight About 390g per unit
MTBF 100,000 hours
Application Consumer Electronic Devices · Telecommunication Devices · Office Facilities · Industrial Equipments
Packing PE bag + Carton or White Box + Carton or As your Request

EN/IEC 62368 Certified 150W Max SMPS 24V 48V AC DC Adapter 12V 34V Power Supply 19V Desktop Transformer

MODEL No. MAX. OUTPUT
POWER (W)		 OUTPUT
VOLTAGE (Vo)		 MIN.
LOAD (Io)		 MAX.
LOAD (Io)		 LOAD
REGULATION		 LINE
REGULATION		 RIPPLE &
NOISE
APS153A 135W 12~18V 0A 11.25A ± 5% ± 1% 180mV
APS153B 135W 19~24V 0A 7.1A ± 5% ± 1% 240mV
APS153C 135W 32~42V 0A 4.21A ± 5% ± 1% 420mV
APS153D 135W 44~56V 0A 3.06A ± 5% ± 1% 560mV
APS153E 150W 12~18V 0A 12.5A ± 5% ± 1% 180mV
APS153F 150W 19~24V 0A 7.89A ± 5% ± 1% 240mV
APS153G 150W 32~42V 0A 4.68A ± 5% ± 1% 420mV
APS153H 150W 44~56V 0A 3.4A ± 5% ± 1% 560mV
