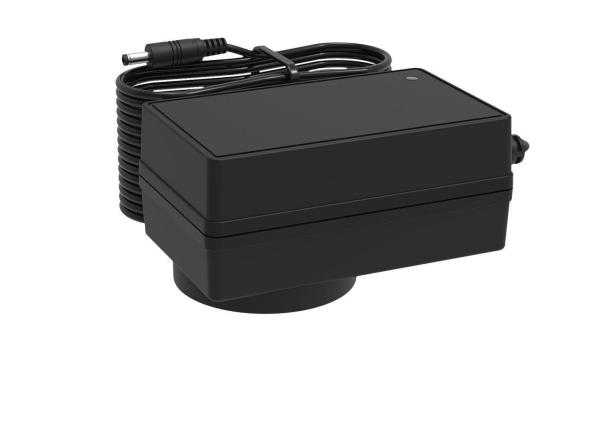

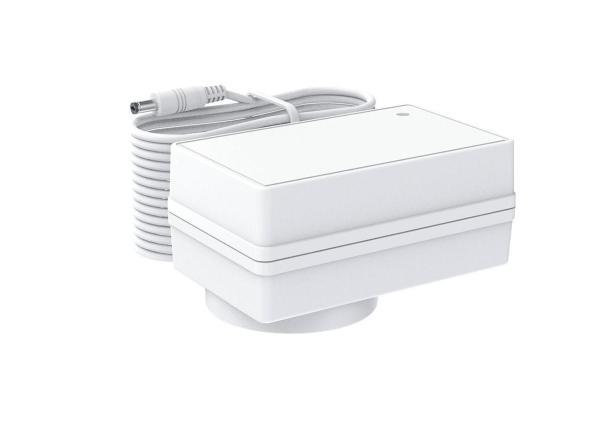

25.2W Max Detachable Plug UL 1310 Certified 12.6V 16.8V 8.4V Lithium Battery Charger 12V 14.4V 21V 24V Power Supply​
25.2W Max Detachable Plug UL 1310 Certified 12.6V 16.8V 8.4V Lithium Battery Charger 12V 14.4V 21V 24V Power Supply​
25.2W Max Detachable Plug UL 1310 Certified 12.6V 16.8V 8.4V Lithium Battery Charger 12V 14.4V 21V 24V Power Supply​
25.2W Max Detachable Plug UL 1310 Certified 12.6V 16.8V 8.4V Lithium Battery Charger 12V 14.4V 21V 24V Power Supply​
Specifications
Brand Name :
ANENpower
Model Number :
APB25H
Certification :
UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Place of Origin :
Shenzhen
MOQ :
500pcs
Price :
Please contact our Sales
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Delivery Time :
18~25 working days after receiving the deposit
Packaging Details :
PE bag / White box / Custom made
Input Range :
100 ~ 240VAC , 50 / 60Hz
Output Power :
25.2W Max
Output Range :
6~24V / 0.8~3.0A
Warranty :
3~5 Years
Certificates :
Complied With UL 1310, CSA C22.2 No. 107.2-01, EN/IEC 60335-1/EN IEC 60335-2-29, FCC Part 15B, CE EMC(EN 55014-1+EN 55014-2)
Applications :
Power And Gardening Tools, Small Home Appliances, E-bikes, Or E-scooters, Etc.
Description

25.2W Max Detachable Plug UL 1310 Certified 12.6V 16.8V 8.4V Battery Charger 12V 14.4V 21V 24V Power Supply​

APB25H battery chargers for sealed Lithium / Lead acid batteries specifically designed for the personal electric vehicle and robot markets. They are based on switchmode technology, which makes them more efficient and smaller than the old fashioned transformer chargers, and are microprocessor controlled to make them very accurate. These may be left on the battery indefinitely to gently maintain the battery at full charge. This battery chargers enables the highly efficient charging operation of Li-Ion batteries used in applications such as power and gardening tools, small home appliances, e-bikes, or e-scooters at a competitive cost.

1, Lithium / Lead-Acid Battery Charger
2, Constant Power Charging Mode
3, Battery Polarity Reverse Protection
4, LED Charging Indicator
5, Step Fast Charging Capability
6, Protections: Short circuit / Over voltage / Over current / Over temperature
7, MTBF > 50,000 hours
8, Recommend for Lithium / Lead-Acid Battery

Datasheet
Input Range: 100 to 240V AC , 50 / 60Hz
Regular Output parameters: 6V 3A(7.2V 3A), 8.4V 3A, 12V 1.5A(14.4V 1.5A), 12.6V 1.5A, 12.6V 2A, 16.8V 1.5A , 21V 1A, 21V 1.2A and others...
Output Range: 6~24V / 0.8~3.0A
Charge Mode: CC (Pre-charge)--CC (Bulk)--CV--Cut off
Charge status: Red / Green Indicator light
Protection: Over load protection
Output over voltage protection
Short circuit protection
Certificate: Complied with UL 1310, CSA C22.2 No. 107.2-01, EN/IEC 60335-1/EN IEC 60335-2-29, FCC Part 15B, CE EMC(EN 55014-1+EN 55014-2)
Efficiency: Level VI
AC plug: EU / US / UK / AU / JP / KR/ INDIA and Others for your selection
Standard DC Connector: 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 / 4.0*1.7 / 3.5*1.35 / 6.3*3.0 with pin inside
Operating Temperature Range: 0--40°C
Storage Temperature Range: -20 --- 85°C
High Humidity Operation: + 40 °C and 90 ~ 95% Humidity
Size: 43*76*71mm
MTBF: 50,000 hours
Application: Power and gardening tools, small home appliances, e-bikes, or e-scooters, etc.
Packing: PE bag + Carton or White Box + Carton or As your Request
