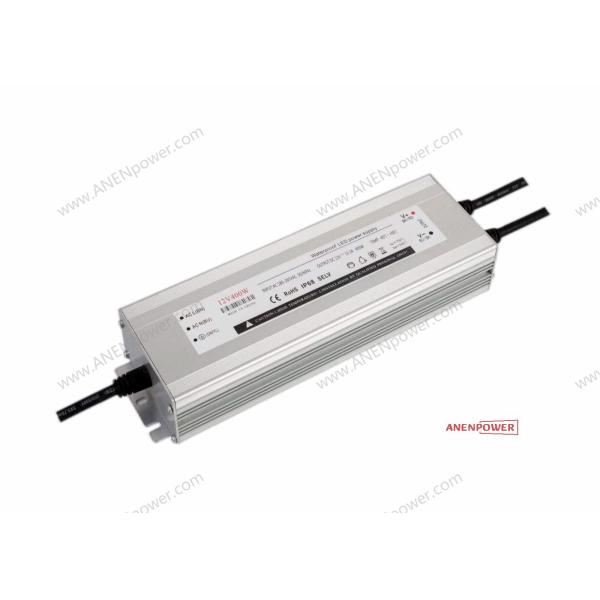

12V/24V/36V/48V Waterproof LED Power Supply - 400W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
12V/24V/36V/48V Waterproof LED Power Supply - 400W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
Specifications
Brand Name :
ANENpower
Model Number :
APL400W
Certification :
GS CE ROSH CB UL cUL FCC KC PSE SAA UKCA
Place of Origin :
Shenzhen
MOQ :
500pcs
Price :
Please contact our Sales
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Delivery Time :
18~25 working days after receiving the deposit
Packaging Details :
PE bag / White box / Custom made
Input :
100~277VAC, 50/60Hz
Output Power :
400W Max
Output Voltage :
12V or 24V or 36V or 48V
Safety Approvals :
UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA
Standard :
EN/IEC 61347, UL 1310
Applicants :
LED Lighting Advertising, LED Display, LED Strips, etc.
Warranty :
3~5 Years
Waterproof Grade :
IP67 / IP68
Description

12V/24V/36V/48V Waterproof LED Power Supply - 400W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver

The 400W Waterproof LED Power Supply delivers powerful and versatile performance with selectable output options of 12V, 24V, 36V, and 48V, catering to a wide range of LED applications. From outdoor lighting installations to signage and architectural projects, this power supply ensures consistent, high-efficiency operation to meet your needs.

Engineered for outdoor durability, its IP67-rated enclosure provides excellent protection against water, dust, and extreme temperatures, ensuring reliable performance in harsh environments. Built with robust materials, this power supply is designed to withstand the demands of long-term outdoor use while maintaining optimal efficiency.

Whether for residential or commercial lighting projects, this LED driver offers a reliable and high-performance solution. With its combination of flexibility, durability, and robust 400W output, it is the perfect choice for professionals looking to power their outdoor lighting systems with confidence.

MODEL DETAIL SPEC. APL400W-12033333 APL400W-24016666 APL400W-36011111 APL400W-48083333
INPUT Input Voltage: 100-240VAC/200-240VAC
Input Frequency: 50/60Hz
Inrush Current: 65A/230VAC at full load
AC Current: 2.27A/115VAC 1.14A/230VAC
Leakage Current: ＜0.25mA/240VAC
Efficiency: 88%
OUTPUT DC Voltage: 12V 24V 36V 48V
Rated Current: 33.33A 16.66A 11.11A 8.33A
Rated Power: 400W
Voltage Tolerance: ±5.0%
Ripple and Noise: 120mVp-p 240mVp-p 360mVp-p 480mVp-p
Line Regulation: ±3%
Load Regulation: ±5%
Setup, Rise, Hold Up time: 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTAL Operating Temperature: -20 ~ +50 (Refer to "Derating Curve")
Storage Temp: -40℃ ~ 85℃
Storage Humidity: 20 ~ 95% RH
Working Humidity: 20 ~ 95% RH non-condensing
PROTECTION Over Load: Above 105%-130% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V
36V:41.4 ~ 48.6V 48V:55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature: Shut down o/p voltage, re-power on to recover
SAFETY & EMC Safety Regulations: EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
Withstand Voltage: I/P-O/P:3.75KVAC
Harmonic EN61000-3-2 Class C EN61000-3-3
EMI: Compliance to EN55015
EMS: compliance to 61547:2009
OTHER MTBF: 200,000 Hours Minimum at Full Load at 25℃ Ambient
Size: 230*127*58mm
Weight: 3200g / pcs
Packaging: 5PCS/CTN

12V/24V/36V/48V Waterproof LED Power Supply - 400W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
