Specifications
Brand Name :
ANENpower
Model Number :
APM24U
Certification :
UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA
Place of Origin :
Shenzhen
MOQ :
500pcs
Price :
Please contact our Sales
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Delivery Time :
18~25 working days after receiving the deposit
Packaging Details :
PE bag / White box / Custom made
Input Range :
100 ~ 240Vac, 50 / 60Hz
Power Range :
16 ~ 36W
Certificates :
UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA
Application :
Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc.
MTBF :
100,000 Calculated Hours
Case Size :
76L X 43W X 30H (mm)
Description

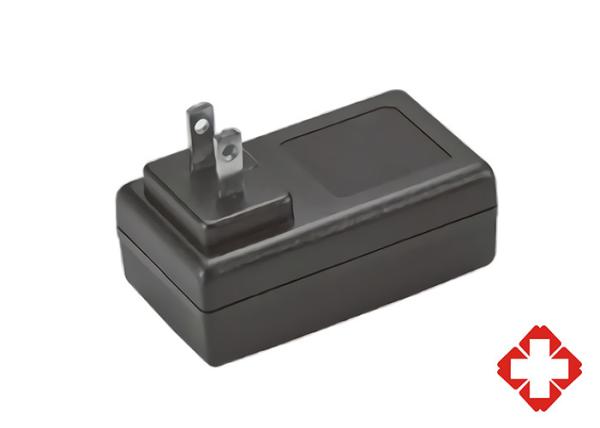

36W UL 60601 Certified Medical AC Adapter | 5V, 12V, 24V Power Supply for Medical Devices

The 36W UL 60601 Certified Medical AC Adapter is a reliable and versatile power solution specifically designed for medical devices. This high-performance adapter offers multiple output options of 5V, 12V, and 24V, making it ideal for a variety of healthcare applications. With its UL 60601 certification, you can trust that it meets stringent safety and performance standards necessary for medical use.

  • UL 60601 Certified: Ensures compliance with the highest safety standards for medical equipment.
  • Multiple Voltage Outputs: Provides flexibility with 5V, 12V, and 24V outputs, accommodating different medical devices.
  • Compact and Lightweight: Designed for ease of use and portability, perfect for both stationary and mobile medical applications.
  • High Efficiency: Engineered for optimal energy efficiency, reducing heat generation and prolonging the life of your devices.
  • Reliable Performance: Delivers stable and consistent power, ensuring your medical devices operate effectively and safely.

This 36W UL 60601 Certified Medical AC Adapter is essential for healthcare professionals seeking a safe and dependable power supply for their medical equipment, ensuring the best care for patients.

• Power Range: 16~36W

• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~48 VDC

• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 76L x 43W x 30H (mm)
• Weight: 200g

Model NO. MAX OUTPUT POWER OUTPUT VOLTAGE MIN LOAD MAX LOAD LOAD REGULATION LINE REGULATION RIPPLE & NOISE
APM24UA 16W 5-8V 0A 2.0A ±5% ±1% 100mV
APM24UB 18W 5-8V 0A 3.0A ±5% ±1% 100mV
APM24UC 20W 5-8V 0A 4.0A ±5% ±1% 100mV
APM24UD 24W 9-11V 0A 1.5A ±5% ±1% 250mV
APM24UE 27W 9-11V 0A 2.0A ±5% ±1% 250mV
APM24UF 20W 9-11V 0A 3.0A ±5% ±1% 250mV
APM24UG 30W 12-17V 0A 1.66A ±5% ±1% 250mV
APM24UH 24W 12-17V 0A 2.5A ±5% ±1% 250mV
APM24UJ 30W 18-24V 0A 1.33A ±5% ±1% 350mV
APM24UK 30W 18-24V 0A 1.66A ±5% ±1% 350mV
APM24UL 20W 36-48V 0A 0.55A ±5% ±1% 480mV
APM24UM 30W 36-48V 0A 0.83A ±5% ±1% 480mV
APM24UN 36W 12V 0A 3.0A ±5% ±1% 250mV
APM24UP 24W 12V 0A 2.0A ±5% ±1% 250mV
APM24UQ 36W 24V 0A 1.5A ±5% ±1% 350mV
NOTED:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) = Vo x Io
