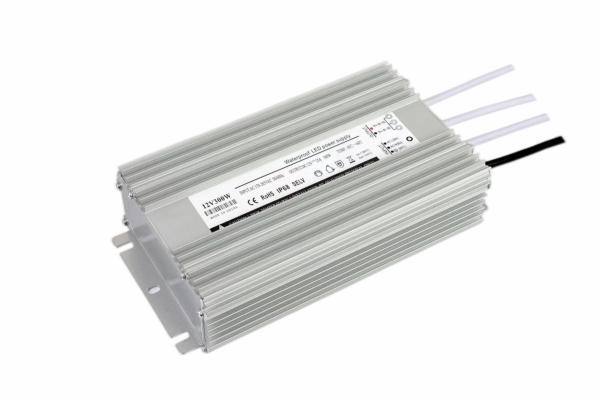

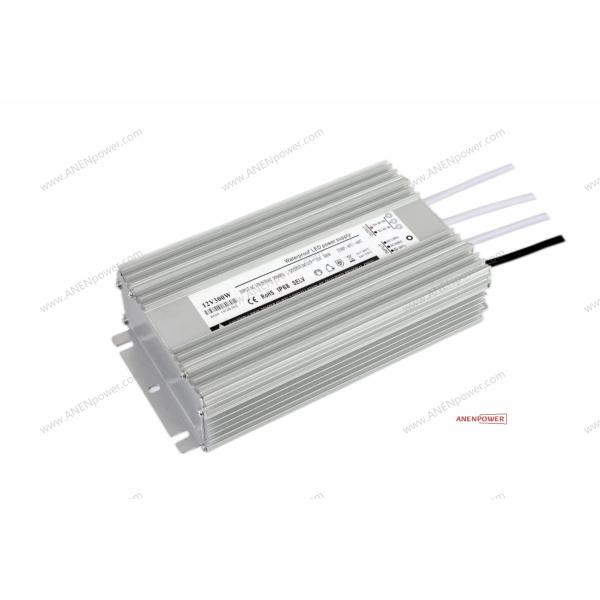

12V/24V/36V/48V Waterproof LED Power Supply - 300W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
12V/24V/36V/48V Waterproof LED Power Supply - 300W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
Specifications
Brand Name :
ANENpower
Model Number :
APL300W
Certification :
UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Place of Origin :
Shenzhen
MOQ :
500pcs
Price :
Please contact our Sales
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Delivery Time :
18~25 working days after receiving the deposit
Packaging Details :
PE bag / White box / Custom made
Input :
100~277Vac, 50/60Hz
Output Power :
300W Max
Output Voltage :
12V/ 24V/ 36V /48V
Safety Approvals :
UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA
Standard :
EN/IEC 61347, UL 1310
Applicants :
LED Lighting Advertising, LED Display, LED Strips, etc.
Warranty :
3~5 Years
Waterproof Grade :
IP67 / IP68
Description

12V/24V/36V/48V Waterproof LED Power Supply - 300W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver

Our 12V/24V/36V/48V Waterproof LED Power Supply offers an impressive 300W output, providing consistent and reliable power for your outdoor lighting systems. Built to withstand the most demanding environments, this LED driver features an IP67 waterproof rating, ensuring protection against water, dust, and other harsh elements.

Ideal for outdoor applications, this power supply is engineered to endure challenging conditions, making it perfect for garden lighting, street lighting, signage, and industrial uses. The IP67 rating guarantees that your lighting systems will remain operational even in rain, snow, or extreme weather.

With multiple voltage options—12V, 24V, 36V, and 48V—and a 300W high output, this LED power supply can handle large-scale outdoor lighting projects. Its durable design ensures long-lasting performance, providing efficient power to your LED lights for superior illumination in any outdoor setting.

MODEL DETAIL SPEC. APL300-12025000 APL300-24022500 APL300-36083333 APL300-48062500
INPUT Input Voltage: 100-240VAC/200-240VAC
Input Frequency: 50/60Hz
Inrush Current: 65A/230VAC at full load
AC Current: 2.27A/115VAC 1.14A/230VAC
Leakage Current: ＜0.25mA/240VAC
Efficiency: 88%
OUTPUT DC Voltage: 12V 24V 36V 48V
Rated Current: 25A 22.5A 8.33A 6.25A
Rated Power: 300W
Voltage Tolerance: ±5.0%
Ripple and Noise: 120mVp-p 240mVp-p 360mVp-p 480mVp-p
Line Regulation: ±3%
Load Regulation: ±5%
Setup, Rise, Hold Up time: 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTAL Operating Temperature: -20 ~ +50 (Refer to "Derating Curve")
Storage Temp: -40℃ ~ 85℃
Storage Humidity: 20 ~ 95% RH
Working Humidity: 20 ~ 95% RH non-condensing
PROTECTION Over Load: Above 105%-130% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V
36V:41.4 ~ 48.6V 48V:55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature: Shut down o/p voltage, re-power on to recover
SAFETY & EMC Safety Regulations: EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
Withstand Voltage: I/P-O/P:3.75KVAC
Harmonic EN61000-3-2 Class C EN61000-3-3
EMI: Compliance to EN55015
EMS: compliance to 61547:2009
OTHER MTBF: 200,000 Hours Minimum at Full Load at 25℃ Ambient
Size: 230*127*58mm
Weight: 2800g / pcs
Packaging: 5PCS/CTN

12V/24V/36V/48V Waterproof LED Power Supply - 300W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
