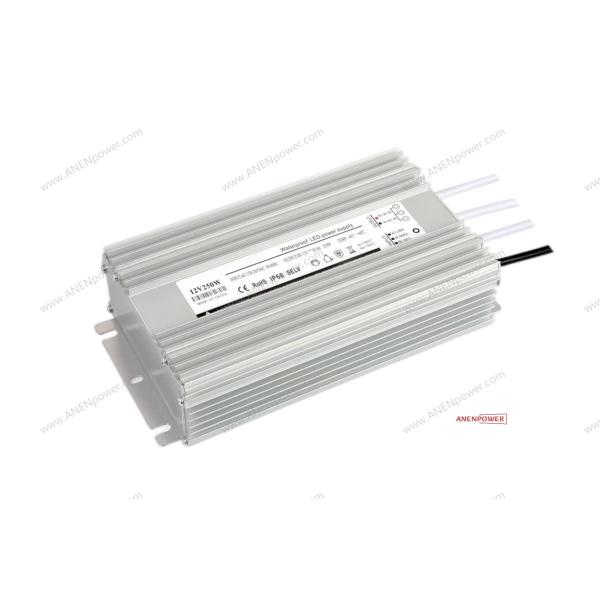

12V/24V/36V/48V Waterproof LED Power Supply - 250W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
12V/24V/36V/48V Waterproof LED Power Supply - 250W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
Specifications
Brand Name :
ANENpower
Model Number :
APL250W
Certification :
UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Place of Origin :
Shenzhen
MOQ :
500pcs
Price :
Please contact our Sales
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Delivery Time :
18~25 working days after receiving the deposit
Packaging Details :
PE bag / White box / Custom made
Input :
100~277Vac, 50/60Hz
Output Power :
250W Max
Output Voltage :
12V/ 24V/ 36V /48V
Safety Approvals :
UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA
Standard :
EN/IEC 61347, UL 1310
Applicants :
LED Lighting Advertising, LED Display, LED Strips, etc.
Warranty :
3~5 Years
Waterproof Grade :
IP67 / IP68
Description

12V/24V/36V/48V Waterproof LED Power Supply - 250W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver

Our 12V/24V/36V/48V Waterproof LED Power Supply delivers a powerful 250W output, providing reliable and stable performance for outdoor lighting systems. With an IP67 waterproof rating, this LED driver is engineered to withstand the toughest environmental conditions, ensuring your lighting setup remains functional no matter the weather.

Designed for outdoor use, this LED power supply is fully protected against dust, water, and other elements, making it the perfect choice for gardens, street lights, industrial lighting, and more. Its IP67 rating guarantees long-term durability, providing peace of mind for your outdoor projects.

With flexible voltage options—12V, 24V, 36V, and 48V—this high-power driver is capable of handling demanding lighting applications. The 250W output ensures your LED lights operate efficiently, providing consistent illumination for large-scale outdoor installations.

MODEL DETAIL SPEC. APL250W-12020883 APL250W-24010416 APL250W-36069444 APL250W-48052083
INPUT Input Voltage: 100-240VAC/200-240VAC
Input Frequency: 50/60Hz
Inrush Current: 65A/230VAC at full load
AC Current: 2.27A/115VAC 1.14A/230VAC
Leakage Current: ＜0.25mA/240VAC
Efficiency: 88%
OUTPUT DC Voltage: 12V 24V 36V 48V
Rated Current: 20.88A 10.42A 6.94A 5.21A
Rated Power: 250W
Voltage Tolerance: ±5.0%
Ripple and Noise: 120mVp-p 240mVp-p 360mVp-p 480mVp-p
Line Regulation: ±3%
Load Regulation: ±5%
Setup, Rise, Hold Up time: 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTAL Operating Temperature: -20 ~ +50 (Refer to "Derating Curve")
Storage Temp: -40℃ ~ 85℃
Storage Humidity: 20 ~ 95% RH
Working Humidity: 20 ~ 95% RH non-condensing
PROTECTION Over Load: Above 105%-130% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V
36V:41.4 ~ 48.6V 48V:55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature: Shut down o/p voltage, re-power on to recover
SAFETY & EMC Safety Regulations: EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
Withstand Voltage: I/P-O/P:3.75KVAC
Harmonic EN61000-3-2 Class C EN61000-3-3
EMI: Compliance to EN55015
EMS: compliance to 61547:2009
OTHER MTBF: 200,000 Hours Minimum at Full Load at 25℃ Ambient
Size: 230*127*58mm
Weight: 2600g / pcs
Packaging: 5PCS/CTN

12V/24V/36V/48V Waterproof LED Power Supply - 250W Output, IP67 Rated, Reliable Outdoor Lighting LED Driver
