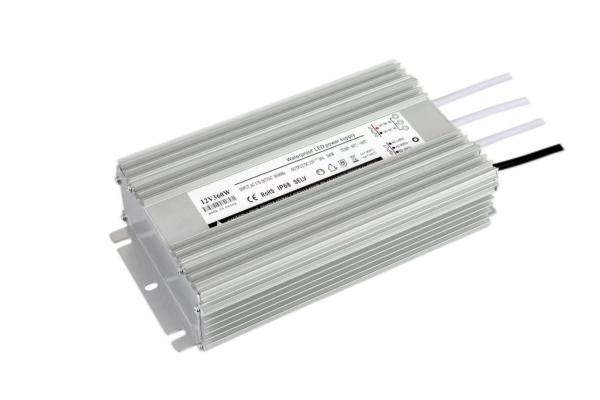

12V/24V/36V/48V Waterproof LED Power Supply - 360W Output, CE FCC Certified, IP67 Rated, Reliable Outdoor Lighting LED Driver
12V/24V/36V/48V Waterproof LED Power Supply - 360W Output, CE FCC Certified, IP67 Rated, Reliable Outdoor Lighting LED Driver
Specifications
Brand Name :
ANENpower
Model Number :
APL360W
Certification :
UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Place of Origin :
Shenzhen
MOQ :
500pcs
Price :
Please contact our Sales
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Delivery Time :
18~25 working days after receiving the deposit
Packaging Details :
PE bag / White box / Custom made
Input :
100~277Vac, 50/60Hz
Output Power :
360W Max
Output Voltage :
12V/ 24V/ 36V /48V
Safety Approvals :
UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA
Standard :
EN/IEC 61347, UL 1310
Applicants :
LED Lighting Advertising, LED Display, LED Strips, etc.
Warranty :
3~5 Years
Waterproof Grade :
IP67 / IP68
Description

12V/24V/36V/48V Waterproof LED Power Supply - 360W Output, CE FCC Certified, IP67 Rated, Reliable Outdoor Lighting LED Driver

The 12V/24V/36V/48V waterproof LED power supply offers a powerful 360W output, making it the perfect solution for outdoor lighting applications. Designed to provide consistent and reliable performance, it supports multiple voltage options to accommodate a wide range of LED systems, ensuring seamless compatibility for architectural lighting, garden fixtures, and streetlights.

With an IP67 rating, this LED driver is built to withstand harsh environmental conditions, offering superior protection against dust, water, and extreme weather. Certified by CE and FCC, it adheres to international safety and quality standards, providing peace of mind for long-term use. The durable aluminum casing enhances heat dissipation, ensuring the longevity of both the power supply and connected LED devices.

This power supply is engineered for high efficiency, reducing energy consumption while delivering stable voltage output for flicker-free LED performance. Compact and easy to install, it is ideal for residential and commercial outdoor lighting projects, offering a reliable and durable solution for all your lighting needs.

MODEL DETAIL SPEC. APL360W-12030000 APL360W-24015000 APL360W-36010000 APL360W-48075000
INPUT Input Voltage: 100-240VAC/200-240VAC
Input Frequency: 50/60Hz
Inrush Current: 65A/230VAC at full load
AC Current: 2.27A/115VAC 1.14A/230VAC
Leakage Current: ＜0.25mA/240VAC
Efficiency: 88%
OUTPUT DC Voltage: 12V 24V 36V 48V
Rated Current: 25A 22.5A 8.33A 6.25A
Rated Power: 360W
Voltage Tolerance: ±5.0%
Ripple and Noise: 120mVp-p 240mVp-p 360mVp-p 480mVp-p
Line Regulation: ±3%
Load Regulation: ±5%
Setup, Rise, Hold Up time: 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTAL Operating Temperature: -20 ~ +50 (Refer to "Derating Curve")
Storage Temp: -40℃ ~ 85℃
Storage Humidity: 20 ~ 95% RH
Working Humidity: 20 ~ 95% RH non-condensing
PROTECTION Over Load: Above 105%-130% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 12V:13.8 ~ 16.2V 24V : 27.6 ~ 32.4V
36V:41.4 ~ 48.6V 48V:55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature: Shut down o/p voltage, re-power on to recover
SAFETY & EMC Safety Regulations: EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
Withstand Voltage: I/P-O/P:3.75KVAC
Harmonic EN61000-3-2 Class C EN61000-3-3
EMI: Compliance to EN55015
EMS: compliance to 61547:2009
OTHER MTBF: 200,000 Hours Minimum at Full Load at 25℃ Ambient
Size: 230*127*58mm
Weight: 3000g / pcs
Packaging: 5PCS/CTN

12V/24V/36V/48V Waterproof LED Power Supply - 360W Output, CE FCC Certified, IP67 Rated, Reliable Outdoor Lighting LED Driver
