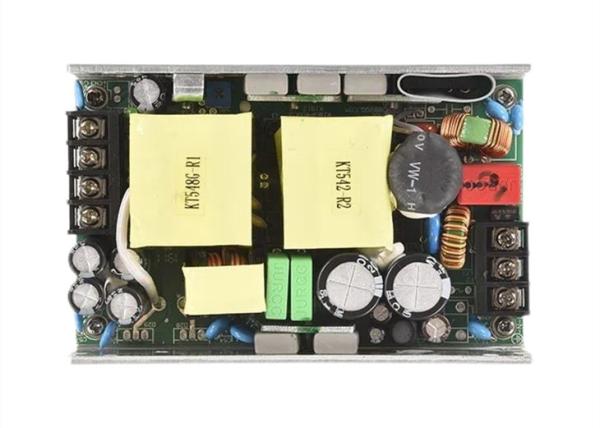

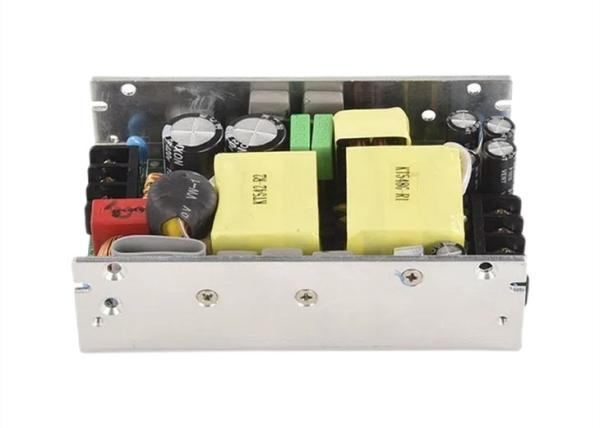

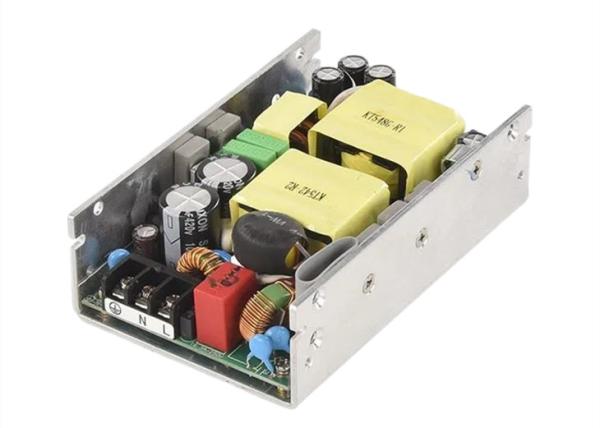

500W SMPS 48V Open Frame Power Supply Dual Output 36V AC DC Converter 24V Transformer 12V PSU
500W SMPS 48V Open Frame Power Supply Dual Output 36V AC DC Converter 24V Transformer 12V PSU
500W SMPS 48V Open Frame Power Supply Dual Output 36V AC DC Converter 24V Transformer 12V PSU
500W SMPS 48V Open Frame Power Supply Dual Output 36V AC DC Converter 24V Transformer 12V PSU
500W SMPS 48V Open Frame Power Supply Dual Output 36V AC DC Converter 24V Transformer 12V PSU
500W SMPS 48V Open Frame Power Supply Dual Output 36V AC DC Converter 24V Transformer 12V PSU
Specifications
Brand Name :
ANENpower
Model Number :
AP500F
Certification :
UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Place of Origin :
Shenzhen
MOQ :
500pcs
Price :
Please contact our Sales
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Delivery Time :
18~25 working days after receiving the deposit
Packaging Details :
PE bag / White box / Custom made
Power :
500W max.
Input :
90~264V AC
Output Voltage :
5V/ 12V/ 24V/ 36V/ 48V/ 60V
Efficiency :
≥89%
Dimension :
127*82*48mm(L*W*H)
Weight :
0.6Kg
Description

500W SMPS 48V Open Frame Power Supply Dual Output 36V AC DC Converter 24V Transformer 12V PSU


*Universal Input: 90~264V AC 47/63Hz
*Safety: UL/CUL/TUV/GS/CE/CCC compliance
*RoHS Compliance
*With PFC or without PFC for optional
*High efficiency & Low power consumption
*Short Circuit Protection
*Over Current Protection
*Over Voltage Protection
*Light Weight & Small size

SPECIFICATION AP500F-D2412 AP500F-D3612 AP500F-D4812 AP500F-D5624
OUTPUT DC Output Voltage CH1: 24V CH2: 12V CH1: 36V CH2: 12V CH1: 48V CH2: 12V CH1: 56V CH2: 24V
Output Rated Current 10A 5A 13A 2A 9A 4A 8A 2.2A
Rated Power 500W
Ripple & Noise 240mVp-p 120mVp-p 360mVp-p 120mVp-p 480mVp-p 120mVp-p 560mVp-p 240mVp-p
Dc Voltage Adjustable ±10% (for example:5V: -5%~+10%)
Voltage Tolerance ±1%
Line Regulation ±0.5%
Load Regulation ±0.5%
INPUT Voltage Range 90~264V AC
Input Current 6A/115V, 3A/230V AC
Input Frequency 47~63Hz
Efficiency >93%@230V,＞89%@115V
Power Factor >0.91
Inrush Current COLD START 30A/230VAC, 15A@115VAC
Leakage Current <0.5mA@240V
ENVIROMENT Working Temp., Humidity -20~85℃,10~95% RH
Storage Temp., Humidity -20~85℃,10~95% RH
Temp. Coefficient ±0.03%/℃ (0~50℃)
Vibration 10~500Hz, 2G 10min./1cycle, Period for 60min, Each axes
OTHER Protection Hiccup, Automatic recovery, Short Circuit Protection, Over Load Protection, Over Voltage Protection, Over Temp. Protection
Satety & EMC EN/IEC 62368, EN/IEC 60601, EN/IEC 61347
Dimension 127*82*48mm(L*W*H)
Weight 0.5Kg

500W SMPS 48V Open Frame Power Supply Dual Output 36V AC DC Converter 24V Transformer 12V PSU

Advantages:

1, Custom designed power supply developed and manufactured by us.


2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.


3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.

4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.


5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.


6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.

FAQ:
1. Are you a trading company or factory?
We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.


2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.


3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.


4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.


5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong


6. How long is the warranty?
It’s 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.

Contact:
Your inquiry and mail will be quickly responded. If you have no ideas on choosing the right power supply, please do not hesitate to contact us: info@ANENpower.com
