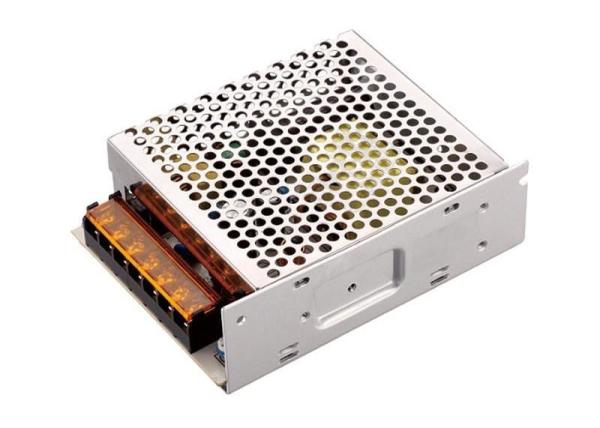

Aluminium case 72W PSU 5V 12V 24V Standard Enclosed Power Supply | AC-DC Converter | High-Efficiency Industrial Power Module
Aluminium case 72W PSU 5V 12V 24V Standard Enclosed Power Supply | AC-DC Converter | High-Efficiency Industrial Power Module
Specifications
Brand Name :
ANENpower
Model Number :
APE072
Certification :
UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Place of Origin :
Shenzhen
MOQ :
500pcs
Price :
Please contact our Sales
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Delivery Time :
18~25 working days after receiving the deposit
Packaging Details :
PE bag / White box / Custom made
Input :
100-240V AC, 50~60Hz
Output Power :
72W Max
Output Voltage :
5V ~24V
Safety Approvals :
UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA
Standard :
TUV BS EN/IEC62368
Applicants :
Industrial automation control, Communication equipment, Led Lighting, Industrial control equipment
Warranty :
3~5 Years
Description

Aluminium case 72W PSU 5V 12V 24V Standard Enclosed Power Supply | AC-DC Converter | High-Efficiency Industrial Power Module

The 72W Aluminium Case PSU is a compact and high-efficiency AC-DC converter designed to meet the power demands of industrial applications. Offering versatile output options of 5V, 12V, and 24V, it ensures stable and reliable power delivery for a wide range of devices in various operating environments.

Encased in a durable aluminium housing, this power supply provides excellent heat dissipation and protection, prolonging the lifespan of both the power supply and the equipment it powers. Its space-saving design makes it an ideal choice for integration into compact systems without compromising on performance or reliability.

Perfect for use in industrial automation, LED lighting, telecommunications, and other critical applications, the 72W PSU offers an energy-efficient and cost-effective solution for all your industrial power needs, delivering consistent performance in a variety of settings.

MODEL DETAIL SPEC. APE072-0506000 APE072-1206000 APE072-2403000
INPUT Input Voltage: 85-265VAC
Input Frequency: 50/60Hz
Inrush Current: Cold start 45A. at 240VAC/50Hz,full load
AC Current: 0.2A/115VAC 0.21A/230VAC
Leakage Current: ＜0.25mA/240VAC
Efficiency: 79% 84% 88%
OUTPUT DC Voltage: 5V 12V 24V
Rated Current: 6A 6A 3A
Rated Power: 30W 72W 72W
Voltage Tolerance: ±5.0% ±5.0% ±5.0%
Ripple and Noise: 75mVp-p 120mVp-p 200mVp-p
Line Regulation: ±3%
Load Regulation: ±5% ±5% ±5%
Setup, Rise, Hold Up time: 500ms, 30ms/120ms 230VAC 1000ms, 30ms/25ms 115VAC at full load
ENVIRONMENT
AL		 Operating Temperature: -20 ~ +60 (Refer to "Derating Curve")
Storage Temp: -40℃ ~ 85℃
Storage Humidity: 10 ~ 95% RH
Working Humidity: 20 ~ 95% RH non-condensing
PROTECTION Over Load: Above 105% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 5V:5.75~ 6.75V 12V:13.8 ~ 16.2V 15V:17.25 ~ 20.25V 24V:27.6 ~ 32.4V
Protection type: Shutdown o/p voltage, re-power on to recover
Over Temperature: Shutdown o/p voltage, re-power on to recover
SAFETY &
EMC		 Safety Regulations: UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1 approved
Withstand Voltage: I/P-O/P:3KV AC I/P-FG:2KV AC O/P-FG:0.5KV AC
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC Emission: Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3,
EAC TP TC 020, CNS13438 Class B
EMC Immunity: EN/EN61000-4-2,3,4,5,6,8,11
OTHER MTBF: 500Khrs min. MIL-HDBK-217F(25℃)
Size: 130*98*40mm
Weight: 370g / pcs
Packaging: 50PCS/CTN

Aluminium case 72W PSU 5V 12V 24V Standard Enclosed Power Supply | AC-DC Converter | High-Efficiency Industrial Power Module
Advantages:

1, Custom designed power supply developed and manufactured by us.


2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.


3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.

4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.

5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.


6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.

FAQ:
1. Are you a trading company or factory?
We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.


2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.


3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.


4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.


5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong


6. How long is the warranty?
It’s 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.
