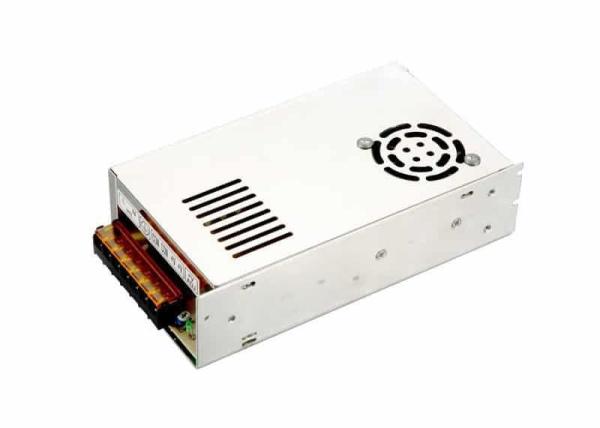

High-Performance 240W Standard Enclosed Power Supply - Multi-Output PSU with 5V, 12V, 24V, 36V, 48V Voltage Options
High-Performance 240W Standard Enclosed Power Supply - Multi-Output PSU with 5V, 12V, 24V, 36V, 48V Voltage Options
Specifications
Brand Name :
ANENpower
Model Number :
APE240
Certification :
UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Place of Origin :
Shenzhen
MOQ :
500pcs
Price :
Please contact our Sales
Payment Terms :
50% deposit, 50% before dispatch
Supply Ability :
500,000.00pcs/month
Delivery Time :
18~25 working days after receiving the deposit
Packaging Details :
PE bag / White box / Custom made
Input :
100-240V AC, 50~60Hz
Output Power :
240W Max
Output Voltage :
5V ~24V
Safety Approvals :
UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA
Standard :
TUV BS EN/IEC62368
Applicants :
Industrial automation control, Communication equipment, Led Lighting, Industrial control equipment
Warranty :
3~5 Years
Description

High-Performance 240W Standard Enclosed Power Supply - Multi-Output PSU with 5V, 12V, 24V, 36V, 48V Voltage Options

The 240W Standard Enclosed Power Supply is designed to deliver reliable and efficient performance for various applications. With output options of 5V, 12V, 24V, 36V, and 48V, it meets the diverse needs of industrial automation, telecommunications, LED systems, and other demanding projects.

Built with durability in mind, this power supply features a robust enclosed design for enhanced safety and long-term use. Its high efficiency reduces energy waste, while built-in protections like overload and short-circuit safeguards ensure stable and secure operation under challenging conditions.

Compatible with a universal input voltage range of 100-240V, this power supply is ideal for global use. Its compact size and ease of installation make it a practical choice for professionals seeking a dependable and versatile power solution.

MODEL DETAIL SPEC. APE240-05030000 APE240-12020000 APE240-24010000
INPUT Input Voltage: 90-264VAC
Input Frequency: 50/60Hz
Inrush Current: 250 Amps max. at 240VAC/50Hz,full load
AC Current: 0.2A/115VAC 0.21A/230VAC
Leakage Current: ＜0.25mA/240VAC
Efficiency: 74% 80% 85%
OUTPUT DC Voltage: 5V 12V 24V
Rated Current: 30A 20A 10A
Rated Power: 150W 240W 240W
Voltage Tolerance: ±5.0% ±5.0% ±5.0%
Ripple and Noise: 75mVp-p 120mVp-p 200mVp-p
Line Regulation: ±3%
Load Regulation: ±5% ±5% ±5%
Setup, Rise, Hold Up time: 500ms, 30ms/120ms 230VAC 1000ms, 30ms/25ms 115VAC at full load
ENVIRONMENT
AL		 Operating Temperature: -20 ~ +60℃ (Refer to "Derating Curve")
Storage Temp: -40℃ ~ 85℃
Storage Humidity: 10 ~ 95% RH
Working Humidity: 20 ~ 95% RH non-condensing
PROTECTION Over Load: Above 105% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 5V:5.75~ 6.75V 12V:13.8 ~ 16.2V 15V:17.25 ~ 20.25V 24V:27.6 ~ 32.4V
Protection type: Shutdown o/p voltage, re-power on to recover
Over Temperature: Shutdown o/p voltage, re-power on to recover
SAFETY &
EMC		 Safety Regulations: UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1 approved
Withstand Voltage: I/P-O/P:3KV AC I/P-FG:2KV AC O/P-FG:0.5KV AC
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC Emission: Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3,
EAC TP TC 020, CNS13438 Class B
EMC Immunity: EN/EN61000-4-2,3,4,5,6,8,11
OTHER MTBF: 500Khrs min. MIL-HDBK-217F(25℃)
Size: 200*110*50mm
Weight: 770g / pcs
Packaging: 10PCS/CTN

High-Performance 240W Standard Enclosed Power Supply - Multi-Output PSU with 5V, 12V, 24V, 36V, 48V Voltage Options

Advantages:

1, Custom designed power supply developed and manufactured by us.


2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.


3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.

4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.

5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.


6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.

FAQ:
1. Are you a trading company or factory?
We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.


2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.


3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.


4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.


5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong


6. How long is the warranty?
It’s 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.
