Product Description

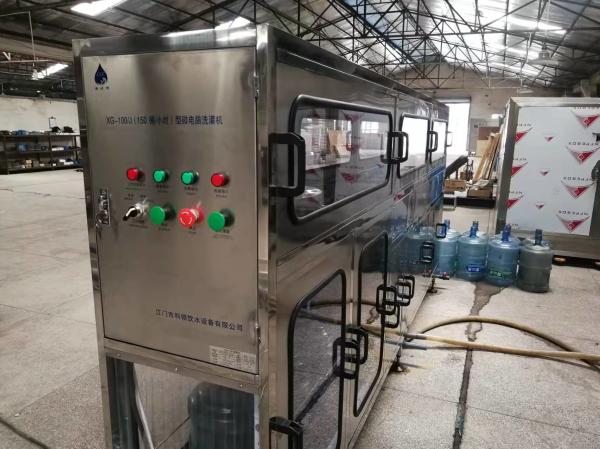

1 line 5 gallon water filling machine with stainless steel belt conveyor for output

Principle:

This 5 gallon water filling machine is integrated with jar washing-filling-capping functions together;

Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;

Washing will be devided into 3 parts, 1st process is by disinfectant fluid, 2nd process is by recycle water washing, 3rd process is by pure water;

After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force;

Then the jars will be pushed by pushing cylinder to under filling head, then filling start;

Filling volume can be controlled by filling time set up.

The filled jars will be pushed to under capping head by empty jars afterwards.

Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail.

When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.

Characters:

1, The whole 5 gallon water filling machine is controlled by PID system, all cylinder travel is calculated in advance for driven distance;

2, The 5 gallon water filling machine can work under automatic model, manual model is for machine checking;

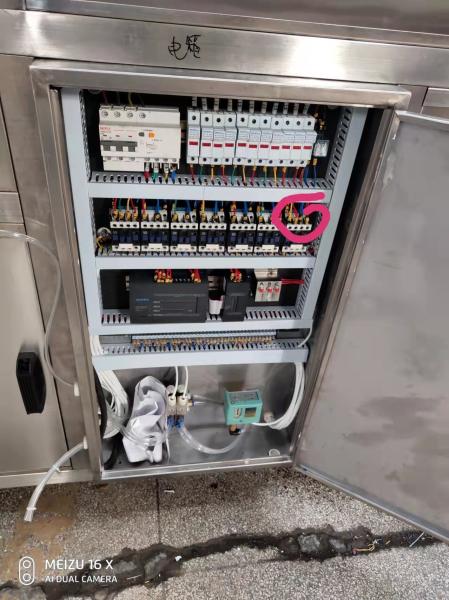

Electrical contect details:

Parameters:

Rinsing pump 1: 0.37KW

Rinsing pump 2: 0.37KW

Filling pump: 0.55KW

Cap sorting motor: 0.09KW

Dimension: 3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)+ 2000mm conveyor

Weight: 400kg

Recommended Spare parts list:

Packing & Delivery

1. the gallon bottle water filling machine is packed by wooden case.
2. The delivery date of gallon bottle water filling machine is within 30 days after payment.

1. installation&commissioning

After the equipment arrived at the customer's site. the customer is responsible for unpacking and arranging the equipment according to the placement drawing;Our technician will do equipment set up and commissioning,buyer should offer necessary help if needed

2. Training

We are responsible for offering the technical training to user.Through training,users' technical staff can grasp and the skill of operation and maintenance proficiently.The buyer also can send staff to our company for learning.

3. Quality assurance

The warranty period is 12 months after acceptance chech of the production line.if there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract.
