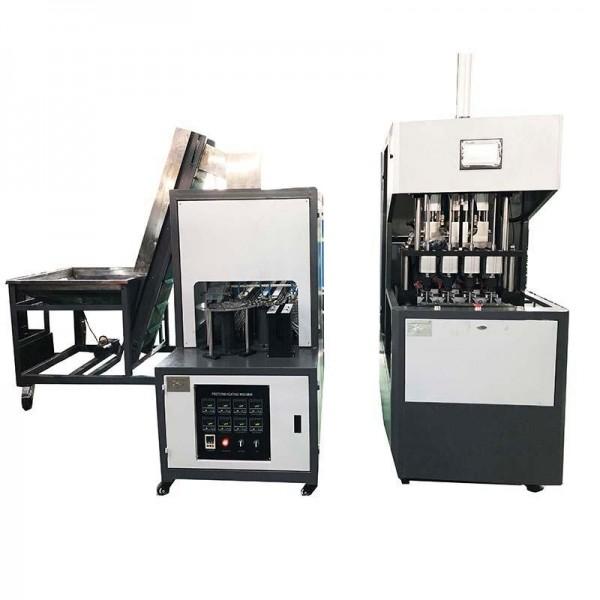

HY-B-4 Semi-Automatic Bottle Blow Molding Machine（4 Cavity）
HY-B-4 Semi-Automatic Bottle Blow Molding Machine（4 Cavity）
Specifications
Payment Terms :
TT
Place of Origin :
Guangdong JiangMen city of China
Certification :
ISO9001
MOQ :
1 set
Packaging Details :
mood
Delivery Time :
30-45day
Supply Ability :
60 set
Description

Equipment

Item

Unit

Specification

Blowing Main Machine

Machine Dimension

mm

200*110*210mm

Weight

kg

800

Max Bottle Size

ml

1500

Minimum Bottle Size

ml

50

Maximum Bottle Mouth Diameter

mm

40

Minimum Bottle Mouth Diameter

mm

18

Maximum Bottle Diameter

mm

125

Maximum Bottle Height

mm

420

Mould Cavity

mold

4

Maximum Capacity

pcs/h

2200

Mould Clamping Power

T

5.7(56KN)

Mould Thickness

mm

200(max)

Mold stroke

mm

210

Maximum Stretch Length

mm

420

Working Pressure

Mpa

0.8-1.0Mpa

Blowing Air Pressure

Mpa

2.0-3.0Mpa

Voltage/ Power Capacity

V/KW

220V(110V)/1KW

Preform Heater

Machine Dimension

mm

1870*630*1450mm

Weight

kg

260

Voltage/ Power Capacity

V/KW

380V/14KW
