(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine
(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine
(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine
(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine
(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine
(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine
(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine
(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine
(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine
(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine
(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine
(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine
Specifications
Brand Name :
XM
Model Number :
cs-a
Certification :
iso9001
Place of Origin :
china
MOQ :
1SET
Price :
5200usd/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50SET/MONTH
Delivery Time :
within 10 days from we got the payment advance
Packaging Details :
Wooden Pallet and Plastic Package in The Container
Motor Power:2.2/3.0 Kw :
Barbed Distance:3′(7.5cm) 4′(10cm) 5′(12.5cm) 6′(15cm)
Production Efficiency;120kg/H (Line Wire2.8mm, Barbed Wire 2.2 mm) :
Life Time:More Than 10 Years
Material:galvanized, pvc coated :
Producing Speed:3′(740m) 4′(990m) 5′(1235m) 6′(1485m)
After Sales Service;Reply Within 24 Hours :
Transport Package:Wooden Pallet and Plastic Package in The Container
Twisted Number:3-5 :
Theoretical output:120kg/h
Description

Best price and high speed barbed wire making machine


Product description

Barbed wire machine is used to produce barbed wire, which is widely used for safety protection function,national defense, animal husbandry, playground fence,agriculture,expressway, etc.

Our barbed wire making machine is the specialized machine for manufacturing barbed wires. The machine has high efficiency and quality with compact structure, low noisy, easy operation and regulation, convenient maintenance and low power consumption, which is suitable for producing all kinds of barbed wires.

The material can be galvanized wire, pvc coated wire,low carbon wire etc.

Advantage of barbed wire machine
Double twisted barbed wire machine is designed to produce screens with single or double-strand barbed steel wire,thermo-plated with zinc.
The machine is of horizontal design,consisting of two parts,assembled together at the middle.
It is safe and realible in operation,capable of turnning out high quality products with consistency.
(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine
Application of the end mesh:
Mainly used for freeway fence ect

Manufacturer Automatic Barbed Wire Mesh MachineTechnical Parameters

Unit CS-A CS-B CS-C
Motor power KW 2.2 2.2 2.2
Main drive shaft speed r/min 402 355 355
Strand wire diameter mm 1.6-3.0 2.0-3.0 1.6-2.8
Barb wire diameter mm 1.6-2.8 1.6-2.8 1.6-2.8
Barb pitch Inch 3" 4" 5" 6" or as your request
Twisted number 3-5 5 7
Raw material Galvanized steel wire or PVC coated wire. Galvanized steel wire or stainless wire Galvanized steel wire or stainless wire
Production

70kg/h,

20 meters/minute

40kg/h,

17 meters/minute

40kg/h,

16.5 meters/minute
Total weight KG 1200 1000 1000
Dimension mm 1950×950×1300 3100×1000×1150 3100×1000×1150

(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine(CS-A) Factory Price full Automatic Double twist Stranded Barbed Wire Making Machine

It is the specialized machine for manufacturing barbed wires. The machine has high efficiency and quality
with compact structure, small volume, easy operation and regulation, convenient maintenance and low power
consumption, which is suitable for producing all kinds of barbed wires. The material can be galvanized wire,
pvc coated iron wire. The products are most used in highway, railway, grassland parapet and other places.

1.Traditional double twisted barbed wire machine
(1)It is designed to prcoduce double-strand barbed steel wire.
(2)The machine is of horizontal design,consisting of two parts,assembled together at the middle.

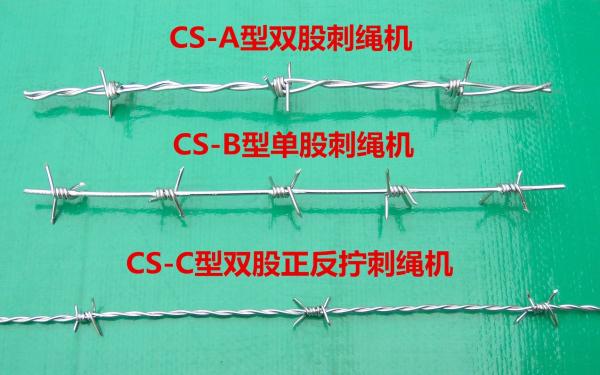

2.Reverse Twist Barbed Wire Machine
(1)Twistsis for Two-strand Wire with Two-way Twists can produce the barbed wire with two-way twists.
(2)It could produce both single strand and double strands barbed wire.
(3)This way is easy to operate and install as they will not entwist with each other.

After SalesService

1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer's factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions, 24 hours support service.
