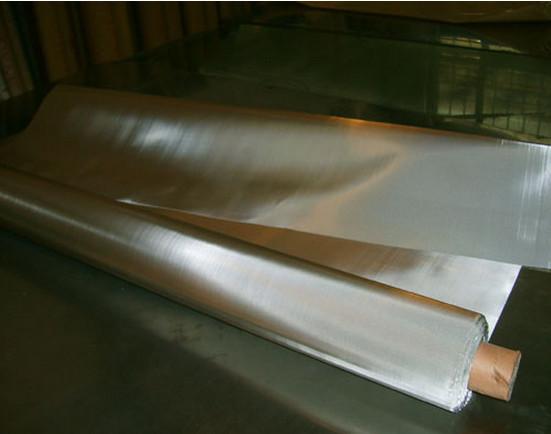

304,316 Stainless Steel reverse Dutch Woven Wire Mesh for Filtration
304,316 Stainless Steel reverse Dutch Woven Wire Mesh for Filtration
304,316 Stainless Steel reverse Dutch Woven Wire Mesh for Filtration
304,316 Stainless Steel reverse Dutch Woven Wire Mesh for Filtration
304,316 Stainless Steel reverse Dutch Woven Wire Mesh for Filtration
304,316 Stainless Steel reverse Dutch Woven Wire Mesh for Filtration
304,316 Stainless Steel reverse Dutch Woven Wire Mesh for Filtration
304,316 Stainless Steel reverse Dutch Woven Wire Mesh for Filtration
304,316 Stainless Steel reverse Dutch Woven Wire Mesh for Filtration
304,316 Stainless Steel reverse Dutch Woven Wire Mesh for Filtration
Specifications
Brand Name :
XM
Model Number :
XM-1
Certification :
ISO9001
Place of Origin :
china
MOQ :
1 rolls
Price :
8usd-500usd
Supply Ability :
2000rolls/month
Delivery Time :
within 7days from we got the payment advance
Packaging Details :
waterproof paper and woven bag
Materual: 304,304L.316,316L :
Wire Mesh Width: 1.2m,1m,1.5m,2m.3m,4m
Wire Diameter: Wire Diameter: 0.025- 3.5 mm :
Weave Technique: Plain Weave, twill weave
Mesh: 2-635mesh :
Nickels: 8%-12%
Description

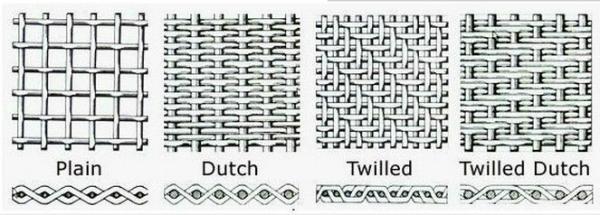

Dutch wire mesh
Stainless steel dutch wire mesh is made of high quality stainless steel wire .The performance tested of Stainless steel is wear-resisting , heat-resisting , acid - resisting and corrosion resisting. Just because of these characteristics, the wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.

Plain dutch weave
Gauge No. Mesh Wire Dia.(MM) Reference Aperture
(um)
40 10×64 0.55×0.42 260
50 12×75 0.45×0.35 220
80 24×110 0.35×0.25 160
100 25×140 0.28×0.20 100
120 30×150 0.25×0.18 80
140 35×180 0.20×0.16 70
160 40×200 0.18×0.13 60
180 45×220 0.16×0.12 56
200 50×250 0.15×0.11 50
240 60×300 0.14×0.09 45
260 65×320 0.13×0.08 36
280 70×400 0.125×0.07 34
300 80×700 0.11×0.039 32

Twill dutch weave
Gauge No. Mesh Wire Dia.(MM) Reference Aperture
(um)
80II 20×250 0.28×0.2 38
120II 30×300 0.25×0.18 36
200II 50×500 0.14×0.11 34
320I 80×700 0.10×0.17 32
320II 80×780 0.10×0.07 30
360 90×780 0.10×0.07 25
400I 100×780 0.10×0.07 22
400II 100×900 0.10×0.063 20
500 120×1100 0.07×0.05 17
630 150×1400 0.063×0.04 16
650 165×1400 0.07×0.04 14
685 180×1800 0.063×0.032 13
795I 200×1400 0.07×0.04 12
795II 200×1800 0.05×0.032 10
850 210×1900 0.045×0.03 10
1000 250×2000 0.045×0.028 8
1125 280×2200 0.036×0.026 7
1200 300×2200 0.036×0.026 6
1280 325×2300 0.035×0.025 5
1600 400×2800 0.03×0.018 3

304,316 Stainless Steel reverse Dutch Woven Wire Mesh for Filtration

304,316 Stainless Steel reverse Dutch Woven Wire Mesh for Filtration

304,316 Stainless Steel reverse Dutch Woven Wire Mesh for Filtration

Advantages ]
· Dedicated and experienced weavers.
· Consistent quality products.
· On-time delivery.
· We have 15 R&D technical staffs,with more than 10 years experience.
· 80% repeat customers.
· Reasonable claim refund system.

We use imported precision slitting machine,can article points precision mesh, plain weave, twill weave.
Maishi supply high quality which has smooth and bright surface,high hardness,high temperature resistance,non-deformation features.
