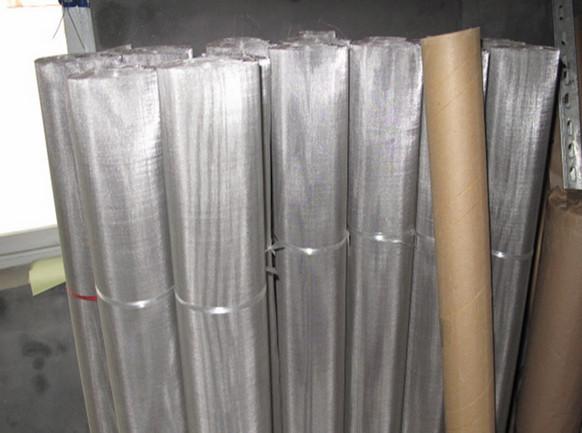

304,316 Stainless Steel woven wire mesh for filtration with SGS certificate

Specifications

Brand Name :

Model Number :

XM-1

Certification :

ISO9001

Place of Origin :

china

MOQ :

1 rolls

Price :

8usd-500usd

Supply Ability :

2000rolls/month

Delivery Time :

within 7days from we got the payment advance

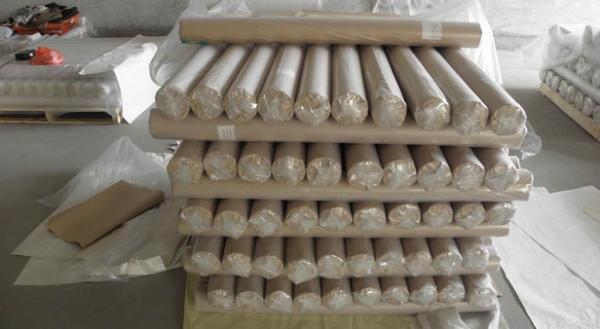

Packaging Details :

waterproof paper and woven bag

Materual: 304,304L.316,316L :

Wire Mesh Width: 1.2m,1m,1.5m,2m.3m,4m

Wire Diameter: Wire Diameter: 0.025- 3.5 mm :

Weave Technique: Plain Weave, twill weave

Mesh: 2-635mesh :

Nickels: 8%-12%

Description

Product Description

Stainless steel wire materials in SUS302, 304, 316, 304L, 316L.
Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, Dutch weave.
General Use of: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc
Mesh size of stainless steel wire mesh: From 3mesh to 600mesh
Want to know more information about stainless steel wire mesh pls contact with us.

Specification list of Stainless Steel Wire Mesh / Woven Wire Cloth
Meshes Per Linear Inch	Diameter of Wire		Width of Opening		Open Area, %
Meshes Per Linear Inch	Inches	mm	Inches	mm	Open Area, %
10 x 10	0.047	1.2	0.053	1.34	28.1
10 x 10	0.035	0.9	0.065	1.65	42.3
10 x 10	0.032	0.8	0.068	1.27	46.2
10 x 10	0.025	0.63	0.075	1.90	56.3
12 x 12	0.041	1.0	0.042	1.06	25.4
12 x 12	0.035	0.9	0.048	1.22	33.2
12 x 12	0.032	0.8	0.051	1.29	37.5
12 x 12	0.028	0.7	0.055	1.39	43.6
12 x 12	0.023	0.58	0.060	1.52	51.8
14 x 14	0.032	0.8	0.039	1.52	29.8
14 x 14	0.025	0.63	0.046	0.99	41.5
14 x 14	0.023	0.58	0.048	1.22	45.2
14 x 14	0.020	0.5	0.051	1.30	51.0
16 x 16	0.028	0.7	0.035	0.89	30.5
16 x 16	0.023	0.58	0.040	1.01	39.9
16 x 16	0.018	0.45	0.045	1.14	50.7
18 x 18	0.020	0.5	0.036	0.91	41.1
18 x 18	0.018	0.45	0.038	0.96	48.3
20 x 20	0.023	0.58	0.027	0.68	29.2
20 x 20	0.020	0.5	0.030	0.76	36.0
20 x 20	0.018	0.45	0.032	0.81	41.0
20 x 20	0.016	0.40	0.034	0.86	46.2
24 x 24	0.014	0.35	0.028	0.71	44.2
28 x 28	0.010	0.25	0.026	0.66	51.8
30 x 30	0.013	0.33	0.020	0.50	37.1
30 x 30	0.012	0.30	0.021	0.53	40.8
35 x 35	0.012	0.30	0.017'	0.43	33.8
35 x 35	0.010	0.25	0.019	0.48	42.4
40 x 40	0.014	0.35	0.011	0.28	19.3
40 x 40	0.012	0.30	0.013	0.33	27.4
40 x 40	0.010	0.25	0.015	0.38	36.0
40 x 40	0.0095	0.24	0.016	0.40	38.4
50 x 50	0.009	0.23	0.011	0.28	30.3
60 x 60	0.0075	0.19	0.009	0.22	30.5
70 x 70	0.0065	0.17	0.008	0.20	29.8
80 x 80	0.0070	0.18	0.006	0.15	19.4
80 x 80	0.0055	0.14	0.007	0.17	31.4
90 x 90	0.0055	0.14	0.006	0.15	25.4
100 x 100	0.0045	0.11	0.006	0.15	30.3
120 x 120	0.0040	0.10	0.0043	0.11	26.6
120 x 120	0.0037	0.09	0.005	0.12	30.7
150 x 150	0.0026	0.066	0.0041	0.10	37.4
165 x 165	0.0019	0.048	0.0041	0.10	44.0
180 x 180	0.0023	0.058	0.0032	0.08	33.5
180 x 180	0.0020	0.050	0.0035	0.09	41.1
200 x 200	0.0020	0.050	0.003	0.076	36.0
200 x 200	0.0016	0.040	0.0035	0.089	46.0
220 x 220	0.0019	0.048	0.0026	0.066	33.0
230 x 230	0.0014	0.035	0.0028	0.071	46.0
250 x 250	0.0016	0.040	0.0024	0.061	36.0
270 x 270	0.0014	0.040	0.0022	0.055	38.0
300 x 300	0.0012	0.030	0.0021	0.053	40.1
325 x 325	0.0014	0.040	0.0017	0.043	30.0
325 x 325	0.0011	0.028	0.0020	0.050	42.0
400 x 400	0.0010	0.025	0.0015	0.038	36.0
500 x 500	0.0010	0.025	0.0011	0.028	25.0
635 x 635	0.0009	0.022	0.0006	0.015	14.5

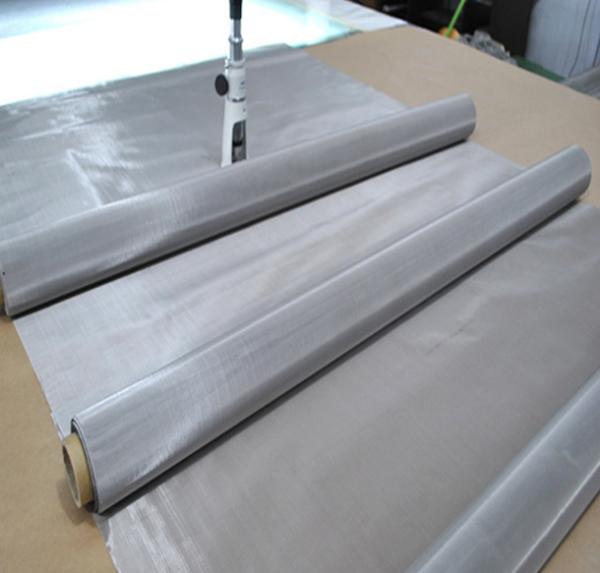

304,316 Stainless Steel woven wire mesh for filtration with SGS certificate

Duth weaving stainless steel wire mesh reference specification:

mesh	wire dia (MM)	Material (AISI)
12 X 64	0.58/0.40	304 316
24 X 110	0.36/0.25	30.316
14 X88	0.50/0.33	30.316
30 X150	0.18/0.14	30.316
40 X200	0.14/0.11	30.316
50 X250	0.10/0.071	30.316
80 X700	0.06/0.05	30.316
165 X800	0.071/0.040	30.316
165 X1400	0.05/0.032	30.316
200 X1800	0.05/0.03	30.316
325 X2300	0.030/0.025	316L
400 X2800	0.030/0.02	316L

304,316 Stainless Steel woven wire mesh for filtration with SGS certificate

Advantages ]
· Dedicated and experienced weavers.
· Consistent quality products.
· On-time delivery.
· We have 15 R&D technical staffs,with more than 10 years experience.
· 80% repeat customers.
· Reasonable claim refund system.

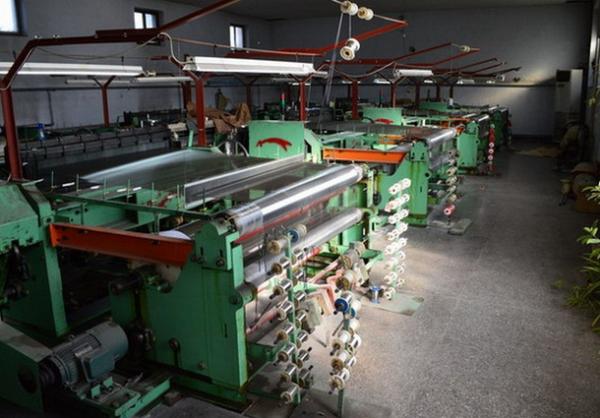

We use imported precision slitting machine,can article points precision mesh, plain weave, twill weave.
Maishi supply high quality which has smooth and bright surface,high hardness,high temperature resistance,non-deformation features.
