Specifications
Brand Name :
XM
Model Number :
XM
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
10000SET-20000SET
Supply Ability :
10SET/MONTH
Delivery Time :
WITHIN 15 DAYS FROM WE GOT THE PAYMENT ADVANCE
Packaging Details :
WOODEN BOX OR ACCORDING TO CUSTOMERS REQUEST
Mesh Width: 1219.2, 1524, 1828.8, 2133.6 :
Wire Diameter: 0.65mm-2.2mm
Mesh Opening Size: 1/4′′-4′′ :
Capacity: 60kVA*4/5/6/7
Voltage: 3phase, 220V/380V/415V/440V :
Motor: 2.2kw;4kw
Welding Speed: Max80rows/Min :
Weight: 2.0t, 2.5t, 3.0t, 3.5t
Description
Product Description
best price fully automatic light welded wire mesh machine

Product Description
1. introduction for the light welded wire mesh machine

1.Professional independent production workshop, dozens of older skilled workers for production and commissioning of production machinery, to ensure the normal operation of the machine.
2.Variety of specifications can be customized according to the requirements, including the wire diameter, wire width, hole size.
3.PLC automatic control
4.Commissioning the machine in the factory and assembled complete assurance can be used immediately after purchase, no longer to assemble,complete accessories.
5.Easy to operate, only one person can operate, lower labor costs
6.Have all kinds of certificate.

2. specification for the light welded wire mesh machine

1.
wire diameter 0.5-1.2mm
aperture of the mesh 12.7*12.7,25.4*25.4mm
width 1219.2mm
length 100m
transformer 60KVA*4
motor 4.0KW
speed 80-100times/min
voltage 380v 50hz

2.
wire diameter 1.2-1.4mm
aperture of the mesh 25.4*25.4/50.8*50.8mm
width 1219.2,1524mm
length 100m
transformer 75KVA*5
motor 5.5KW
speed 80-100times/min
voltage 380v 50hz

3.
wire diameter 1.4-2.7mm
aperture of the mesh 25.4*25.4,50.8*50.8mm
width 1219.2,50.8*50.8mm
length 100m
transformer 85KVA*5
motor 5.5KW
speed 80-100times/min
voltage 380v 50hz

4.
wire diameter 0.7-2.0mm
aperture of the mesh 12.7*12.7,25.4*25.4,50.8*50.8
width 1219.2,1525mm
length 100m
transformer 85KVA*7
motor 5.5KW
speed 80-100times/min
voltage 380v 50hz

5.
wire diameter 0.8-2.5mm
apertue of the mesh 12.7*12.7,25.4*25.4,50.8*50.8
width of the mesh 1219.2,1524,2006.6mm
length 100m
transformer 90KVA*5
motor 5.5KW
speed 80-100times/min
voltage 380v 50hz

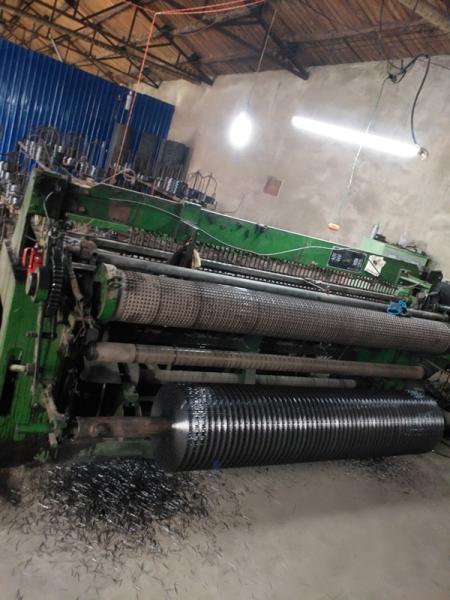

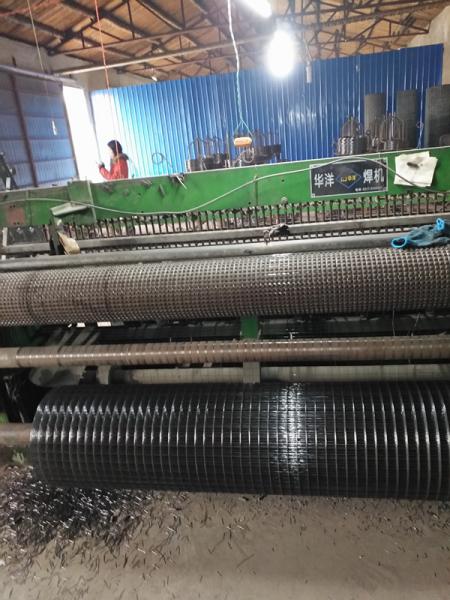

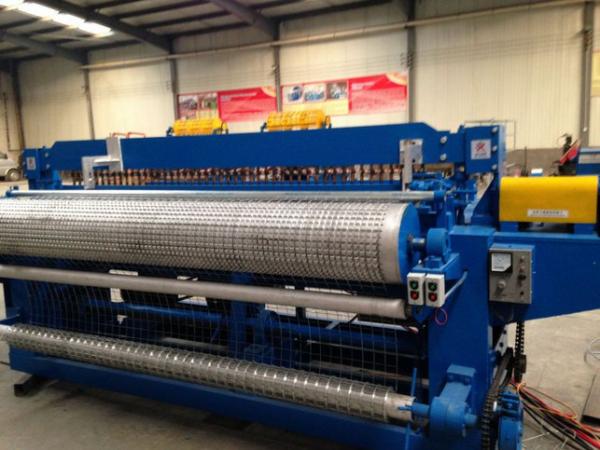

the main welded wire mesh machineHigh Efficiency Automatic Welded Wire Mesh Making Machine Factory from XM

mesh repair machine

High Efficiency Automatic Welded Wire Mesh Making Machine Factory from XM

Mesh repairing table High Efficiency Automatic Welded Wire Mesh Making Machine Factory from XM

Welded wire mesh machine wire spool winding machineHigh Efficiency Automatic Welded Wire Mesh Making Machine Factory from XM

bobbin stand-off

High Efficiency Automatic Welded Wire Mesh Making Machine Factory from XM

Electric control cabinetHigh Efficiency Automatic Welded Wire Mesh Making Machine Factory from XM

In order to give you one accurate quotation sheet,please supply us more of your requirements as below:

1.wire diameter range
2.mesh width
3.panel length
4.mesh opening size
5.industrial votage/frequency

We are a manufacturer of mesh welding machines in China, our factory is located in Anping county, Hebei Province. Our main products are:
Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, roll mesh welding machine, wedged wire screen welding machine, wire straightening and cutting machine etc.
