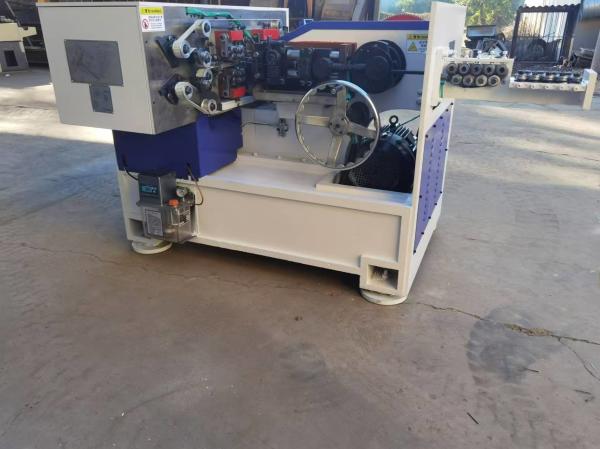

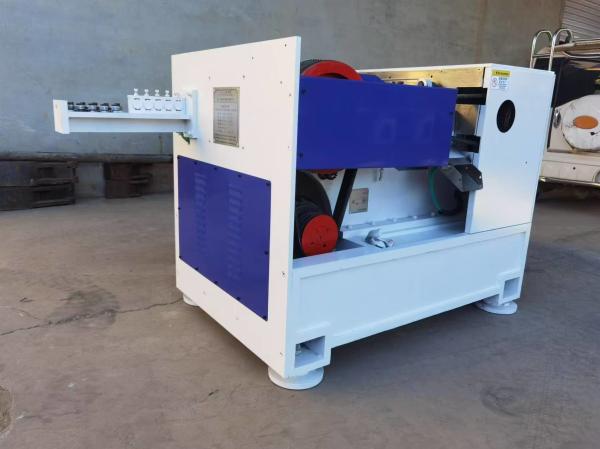

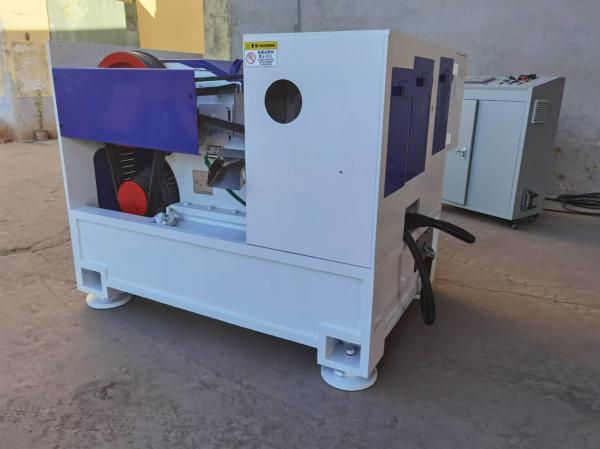

X90( 50-90mm ) High Speed Nail 750pcs/min Making Machine for Make Nails
X90( 50-90mm ) High Speed Nail 750pcs/min Making Machine for Make Nails
X90( 50-90mm ) High Speed Nail 750pcs/min Making Machine for Make Nails
X90( 50-90mm ) High Speed Nail 750pcs/min Making Machine for Make Nails
X90( 50-90mm ) High Speed Nail 750pcs/min Making Machine for Make Nails
X90( 50-90mm ) High Speed Nail 750pcs/min Making Machine for Make Nails
X90( 50-90mm ) High Speed Nail 750pcs/min Making Machine for Make Nails
X90( 50-90mm ) High Speed Nail 750pcs/min Making Machine for Make Nails
X90( 50-90mm ) High Speed Nail 750pcs/min Making Machine for Make Nails
X90( 50-90mm ) High Speed Nail 750pcs/min Making Machine for Make Nails
Specifications
Brand Name :
CR
Model Number :
X90
Place of Origin :
CHINA
Certification :
ISO9001
MOQ :
1SET
Price :
15800USD
Packaging Details :
BULK
Delivery Time :
WITHIN 30DAYS FROM WE GOT THE PAYMENT ADVANCE
Payment Terms :
30%PAYMENT ADVANCE. 70%BALANACE BEFORE LOAD THE CONTAINER
Supply Ability :
20SET
Production Capacity :
760 Pcs/min
Control :
PLC+ Touch Screen
Wire Nails Length :
45-90mm
Wire Diameter :
2.0-3.5mm
Type :
Automatic
Pass Rate :
98%
Nail Making Speed :
760pcs/min
Function :
Make Common Nails
Description

High Speed Nail Making Machine with Competitive Price Low Noise

High speed nail making machine introduce

The high-speed automatic nail making machine is suitable for the nail making requirements of large batches, high precision and high production capacity. The high-speed automatic nail making machine has excellent safety performance, stable quality, high reliability, convenient use and maintenance, PLC control and equipped with full-range optically controlled wire disorder shutdown system.

Main Technical Parameter

P/N
Nail Length (mm)
Nail Dia. (mm)
Production (pcs/min.)
Weight (kg)
Power (kw)
Dimension (mm)
ZS-X50

25-60
1.8-2.8
800
2800
7.7
1850*1200*1150
ZS-X90
38-90
2.2-3.4
750
2800
7.7
 1850*1220*1150
ZSX130
70-130
2.8-4.5
600
3000
9.9
2010*1220*1150
ZS-X150
80-150
3.7-5.5
500
3500
13
2550*1250*1150


X90( 50-90mm ) High Speed Nail 750pcs/min Making Machine for Make Nailsloading pic

X90( 50-90mm ) High Speed Nail 750pcs/min Making Machine for Make NailsX90( 50-90mm ) High Speed Nail 750pcs/min Making Machine for Make Nails

Features of High Speed Nail Making Machine
Advantages of High Speed Nail Making Machines:
1. Increased productivity. The output is three times higher than the traditional Z94 type.
For example, the output in 8 hours is:
10cm nails: 3600 kg;
7cm nails: 1800 kg;
5cm nails: 750kg;
2. Improved efficiency and reduced labor costs. One worker can operate 6-8 sets of machines at the same time.
3. Consistent quality of nails produced. The nails made by this high speed nail making machine have higher consistency and are more suitable for making wire nails, coil nails, paper strip nails, plastic strip nails, etc.
4. Save electricity consumption and workshop space.

Advantages:

-- High productive: 760pcs/min
-- Defective rate: No defective nails, every nail is a good product
-- Labor cost down by 50%--70% on nail making
-- Labor cost down by 35%--45% on nail coiling; Because of no defective nails, there is no break off during nail coiling.
-- 1 worker can operate 10 machines
-- Clean, low-noise production
-- Cost down by $20.00 by producing 1 ton of nails (Based on price in China, if your local price is higher, you'll save more)
-- Easy to operate: A common worker can operate this machine after a simple demo
-- Easy maintenance: No longer relying on experienced skillful workers
-- Our high speed nail making machine is of tantamount quality with the Germany famous nail making machine N90, but price is much cheaper
-- Spare parts are with long lifetime and cheap price; Very low use-cost

Note: Due to the continuous development and upgrade of our nail making machine, the above nail making machine parameters are for reference only, the actual data is subject to the contract!
