Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Specifications
Brand Name :
ChangTong
Model Number :
LXT190409-7
Certification :
SGS, ISO2008:9001
Place of Origin :
China
MOQ :
1 pi
Price :
USD1000-1500/Ton
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20000Ton/year
Delivery Time :
30-45days
Packaging Details :
Container transpor, the general situation of the tower for metal reinforcement bind,Bolts are bagged from professional containers.
Material :
SteelQ345/Q235
Appearance Treatment :
Hot-dip galvanized/powder coated/painting
Height :
10m-120m/Customized
Design wind speed :
36m/s
Connection structure :
flange connection/bolts connection
Quantity of Platform :
1/2/3/4/Customized
Lifetime :
More than 20years
Description

Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure

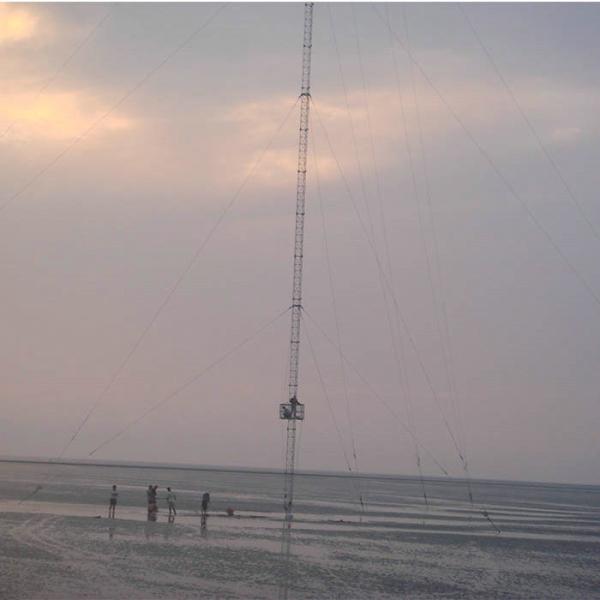

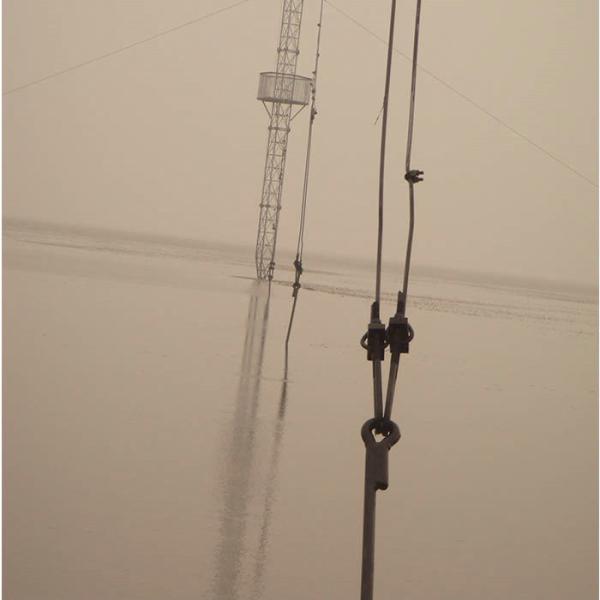

Guyed tower has a novel appearance,and its biggest characteristic is strengthened by using steel guy wire. Guyed tower is a common type of communication tower which is economical and practical. It is lighter and cheaper than the others. It is very suitable for the geographical wide areas.

Package

Set-wisely packing or member-wisely packing as per client's requirements.

Tower members: One steel tower is separated into several bundles.

Bolts: Packing material is robust nylon bag or steel drum.

Technical Data

Quality control

100% inspection: Each member will be checked by our QC team to ensure all members are qualified before delivery.

Experiences

Our products have been exported to more than 40 countries, such as Finland, Macedonia, Colombia, Venezuela, Chile, Cuba, Myanmar, South Korea, Kazakhstan, Pakistan, Philippines, India, Indonesia, Ethiopia, Sudan, Rwanda, Ghana, Benin, Nigeria, South Africa, UAE and Bahrain etc.

Our Commitment and target

Four ZEROs---Zero Quality Defect, Zero Quantity Shortage, Zero Delivery Delay, Zero Client Complaint

Height 20 meter or more higher
Wind Speed 0-300KM/H
Material Q345B/A572,minimum yield strength>=345MPA
Structure Three Support Legs
Galvanized Hot Dipped Galvanized
Delivery Time 30 Days after receiving 30% Deposit
Galvanizing Standard ENISO 1461, ASTM/A123
Appearance Hot Dip Galvanization Minimum 120um and Color Painted As Per Request
Working & Resting Platform Quantity 1-3 PCS
Antenna Support 3-18 PCS
Microwave Dish 3-18 PCS
Nuts & Bolts Grade 8.8
Lifetime More than 20 Years

Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure

Production Process
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Testing process
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel StructureTubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure
Relet Product
Tubular Hot Dip Galvanized 40m Guyed Wire Tower Customizable Steel Structure

Product tags

galvanized substation steel structure

,

steel tubular pole specification

,

tubular steel +poles
