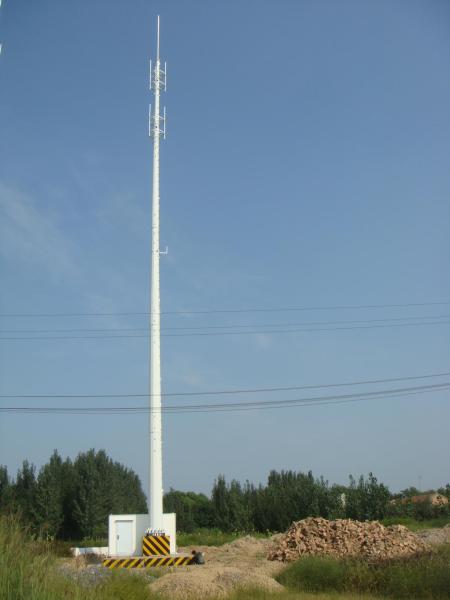

ChangTong 36M Monopole Telecom Tower For Mountain
ChangTong 36M Monopole Telecom Tower For Mountain
ChangTong 36M Monopole Telecom Tower For Mountain
ChangTong 36M Monopole Telecom Tower For Mountain
ChangTong 36M Monopole Telecom Tower For Mountain
ChangTong 36M Monopole Telecom Tower For Mountain
ChangTong 36M Monopole Telecom Tower For Mountain
ChangTong 36M Monopole Telecom Tower For Mountain
Specifications
Brand Name :
ChangTong
Model Number :
JGT190409-2
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1piece
Price :
USD1000-15000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000Tons/year
Delivery Time :
30-45days
Packaging Details :
Container transpor, the general situation of the tower for metal reinforcement bind.
Product name :
Mobile Cell Tower
Material :
SteelQ345/Q235/ASTM A36 A572 Gr50
Appearance Treatment :
Hot-dip galvanized/powder coated/painting
Height of Tower :
15m-80m/Customized
Connection structure :
flange connection/bolts connection
Maximum Design Wind Speed :
30m/s
Quantity of Platform :
2/3/Customized
Antenna Type :
GSM, RRU,CDMA, MW etc.
Lifetime :
More than 30 Years
Description


Tubular Telecommunication Tower 36M 4 Sections Slip Joint Galvanized Surface Monopole Steel Tower

Monopole tower

​

The external climbing (plug-in) single pipe tower is formed by bending steel plate, and the cross section of the pipe body is 12 or 16 sided. The tower body is made of multi section steel pipes. The length of single section of steel pipe is between 7m and 10m. The tower body is generally made of stainless steel

Q235B, Q345B or high strength steel. The tower type ladder is arranged on the pipe body. Main features: 1, small area, 2, fast installation, 3, high anti-theft performance, 4, low maintenance workload, 5, safety factor

High.

The inner flange single pipe tower is formed by steel plate circle, and the section of the pipe body is round. The tower body is made of multi section steel pipes. The length of single section of steel pipe is between 7m and 10m. The tower body is generally made of Q235B and Q345B steel

Wood. The climbing ladder of the tower type is arranged inside the tower body. Main features: 1, small area, 2, fast installation, 3, high anti-theft performance, 4, low maintenance workload, 5, can effectively reduce the psychological pressure of maintenance personnel.

Products Specifications

Products Name 36M 4 Sections Slip Joint Galvanized Tubular Telecommunication Tower
Poles Height 15-60M
Poles Design wind 100KM/H or depending on clients requirements

Calculation Report

(Deflection Calculation)

 Steel Pole Structure Analysis report
Wind Pressure Calculation report
Poles Applications Telecommunication, wireless internet.
Application place Park,Mountain etc
Pole Work Platform The Work Platform Layers Quantity Depending on the antennas installations Quantity/Size/Weight
Telecommunication Equipment Bracket

Equipment Bracket usually use 76mm(OD) Pipe,The bracket length depending on the Work platform Layers and spacing of

the work Platform.
Telecommunication Equipment Equipped RRU,Microwave-Dish,Radome,Antenna Etc
Telecommunication Equipment Equipped Method Equipment Equipped Method by “U” Type anchor bolt to fixed on 76mm(OD)pipe bracket.
Shape Conical, Polygonal,
Length of per section Within 14m once forming without slip joint
Material Q235, Q355, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55
Minimum yield strength 355 Mpa
Minimum ultimate tensile strength 490 Mpa
Max ultimate tensile strength 620 Mpa
Surface Treatment Hot Dip Galvanization in accordance with Chinese Standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 or BS EN ISO 1461 and different Color Powder Coated.
Connection Method Slip joint by lower section insert into upper section
Flange connect to flange(outer flange/inner flange)
Welding

Welding complies with AWS D1.1 standard.

CO2 Welding or Submerged Arc Auto methods

No fissures, scars, overlaps, layering or other defects
Welds Seam longitudinal welding seam and transverse welding seam
Welds slags removing Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing.
Mounting Method Direct Burial/With Base Template and Anchor Bolts
Base plate Base plate is square/round/polygonal with slotted holes for anchor bolts or according to clients’ requirement.
Life Expectancy More than 25 years depending on various environmental factors
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:CT
Model Number:
DGT190311-2
Product name:
Hot galvanized telecom monopole tower
Material:
SteelQ345/Q235
Appearance Treatment:
Hot-dip galvanized/powder coated/painting
Height of Tower:
15m-80m/Customized
Connection structure:
flange connection/bolts connection
Maximum Design Wind Speed:
32m/s
Quantity of Platform:
2/3/Customized
Antenna Type:
GSM, RRU,CDMA, MW etc.
Lifetime:
More than 30 Years
design software:
MS TOWER
Supply Ability
Supply Ability:
20000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
Container transpor, the general situation of the tower for metal reinforcement bind.
Port
TianJin Port
Lead Time :
Quantity(Tons) 1 - 10 >10
Est. Time(days) 20 To be negotiated

Product Show

ChangTong 36M Monopole Telecom Tower For MountainChangTong 36M Monopole Telecom Tower For Mountain

Production Process

Hebei Chang Tong Steel Structure Co., Ltd.
located in the hometown of China Tower, is a modern big-scale professional company fabricating triangular communicationtower,
four-corner communication tower, cable tower, single-tube tower, camouflage communication tower and transmission line
tower.integrating design,fabrication and marketing,annual production capacity reaches more than 30,000 tons.
Company always adhere to the business strategy of "survive by quality, develop by credit, increase efficiency by science and
technology", continuously carry out technical transformation,complete production equipment, reliable production process,
adopt advanced CNC angle steel production line, CNC sheet production line and various supporting equipment. The
equipment has a first-class iron tower stakeout center, all of which implement microcomputer lofting, which guarantees the
processing quality and provides a strong guarantee for production, which can fully meet the design and production requirements of various types of towers and substation structures.
Our steel tower products have won good reputation from our customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our products also were exported to many countries and
areas,including South American,Africa,Southeast Asia and Ireland.
ChangTong 36M Monopole Telecom Tower For MountainChangTong 36M Monopole Telecom Tower For Mountain

Detection

ChangTong 36M Monopole Telecom Tower For Mountain

Cooperative units

ChangTong 36M Monopole Telecom Tower For Mountain
