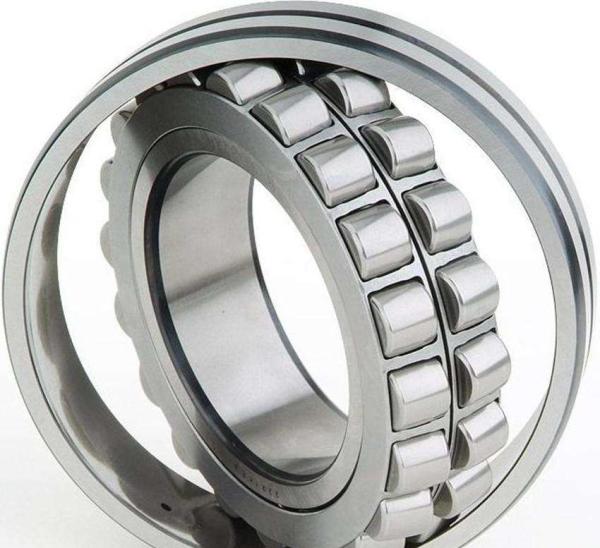

239/710 CAK/W33 Heavy Duty Spherical Thrust Roller Bearing Large Dynamic Load Capacity
239/710 CAK/W33 Heavy Duty Spherical Thrust Roller Bearing Large Dynamic Load Capacity
Specifications
Brand Name :
MONTON
Model Number :
239/710 CAK/W33
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Delivery Time :
7-35 days
Packaging Details :
Single box
Certification :
ISO9001
Payment Terms :
T/T
Supply Ability :
10000PCS/WEEK
Description

Specific classification and model comparison:
1, self-aligning roller bearings (20000 CC type)
2, tapered bore spherical roller bearings (20000 CCK type)
3, self-aligning roller bearings (20000 CC/W33 type)
4, tapered bore spherical roller bearings (20000 CCK/W33 type)
5, mounted on an adapter sleeve hole Spherical Roller Bearing (20000 CCK + H0000-type)
6, mounted on an adapter sleeve hole Spherical Roller Bearing (20000 CCK/W33 + H0000-type)

Specification:

Material: GCr15 --------bearing steels -----0Cr17Ni12Mo2------stainless steel ------SI3N4---SIN4---ceramics

Internal structure: CC/W33,CA/W33,MB/W33,MA/W33,CCK/W33.CAK/W33

Spherical roller bearing radial clearance:C0,C1,C2,C3,C4,C5

Precision Tolerance: self-aligning roller bearings can be divided according to accuracy class PO, P6, P5, P4, P2. Accuracy sequentially from low to high Sort

Quality standard: ISO9001:2000

Spherical roller bearing cage and its use:
Mainly used to maintain frame: sheet steel cage (suffix E), glass fiber reinforced polyamide 66 cage (suffix TVPB), machined solid brass cage (suffix M), vibration occasions sheet steel cage (suffix JPA )
Main purpose: paper machinery, deceleration devices, rail vehicles axles, gear box bearing rolling mill, rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery.

241/710 CA/W33C3

(d1)Bore Diameter: 710 mm
(D)Outside Diameter: 950 mm
(B)Overall Width: 180 mm
(C)Dynamic Load Capacity: 5600 kN
(Co)Static Load Capacity: 12000 kN
Reference speed: 340 RPM
Limiting speed: 600 RPM
Bearing weight 365 kg
239/710 CAK/W33 Heavy Duty Spherical Thrust Roller Bearing Large Dynamic Load Capacity 239/710 CAK/W33 Heavy Duty Spherical Thrust Roller Bearing Large Dynamic Load Capacity
