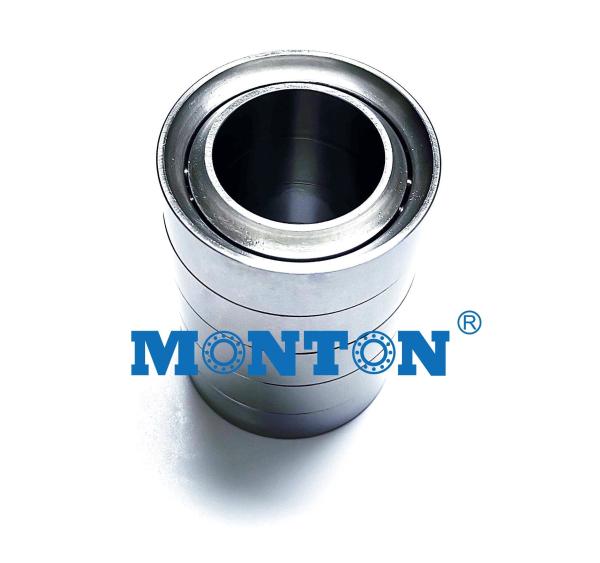

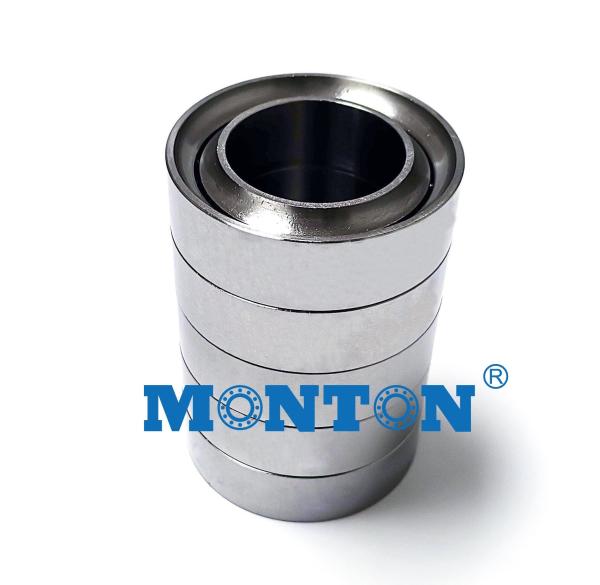

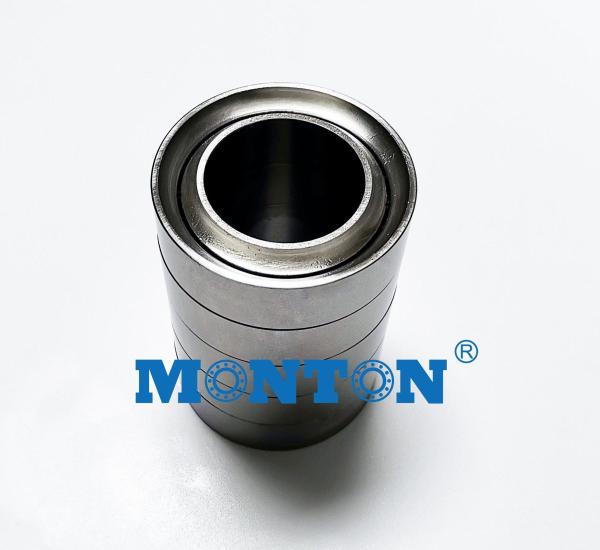

Mud Stack Thrust Bearings Mud Motor Bearings For Downhole Drill 128713K
Mud Stack Thrust Bearings Mud Motor Bearings For Downhole Drill 128713K
Mud Stack Thrust Bearings Mud Motor Bearings For Downhole Drill 128713K
Mud Stack Thrust Bearings Mud Motor Bearings For Downhole Drill 128713K
Mud Stack Thrust Bearings Mud Motor Bearings For Downhole Drill 128713K
Mud Stack Thrust Bearings Mud Motor Bearings For Downhole Drill 128713K
Specifications
Brand Name :
MONTON
Model Number :
128713K
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Material :
55SiMoVA or G20CrNi4A
Row :
8Row or 10Row or More
Types :
Thrust angular contact ball bearings
Bearing life :
200 hours
Application :
Drilling motor or downhole motor
Customer :
Oil drilling industry
Description

Thrust Angular Contact Ball Bearing For Downhole Drilling Motor

Mud Stack Thrust Bearing for Downhole Drill

128713K

65*128*351.5mm

Application:Downhole drilling motor

Main customers:SLB,GE,etc

This kinds bearings working together with TC bearings in the downhole motor.

Product Description

The bearings in a mud motor at the end of a drill string would place a huge influence on productivity and reliability in terms of oil
drilling or gas drilling.The working condition of these mud motor bearings are extremely harsh: the bearings bear heavy axial and
shock loads, and they are also exposedwith highly abrasive mud.

• Special steel for all bearing components
• Full complement bearing
• Precision matched rings
• Unique bearing design to support heavy
• axial drilling loads

Bearing Assembly of Downhole Motor is used to transmit motor rotary dynamic force to the bit, meanwhile to withstand axial and radial load from drilling weight. Inside of the Bearing Assembly,Monton uses TC Radial Bearing and a stacked thrust bearings. The thrust bearings support the downward force resulting from the “weight on bit” (WOB) and the loads from the combination of hydraulic thrust and weight loads from internal components.Monton provides different bearing assemblies, designed to meet the diverse requirements of the drilling industry.
1) Bit nozzle pressure loss is 7.0 Mpa, Monton uses a stacked multiple balls design for the thrust bearings. The thrust bearings support the downward force resulting from the “weight on bit” (WOB) and the loads from the combination of hydraulic thrust and weight loads from internal components.
Rolling Element Bearings (Ball Bearings)
Rolling element bearings, or ball bearings, have conventionally been used to react thrust, or axial, loads in downhole mud motors. When low rpm power sections are used in the application such bearings provide suffcient life and reliability. However, bearing component fatigue causes life to decrease linearly as speed increases; fatigue makes ball bearings unsuitable for high rpm motors. In addition to life, friction and horse-power losses are often of interest in drilling. Ball bearings are referred to as frictionless bearings due to the rolling nature of the elements; however in practice frictional losses exist duo to rolling resistance and sliding. An order of magnitude approximation of the coefficition of friction (CoF) for an angular contact bearing operation in ideal non-abrasive lubricant conditions is 0.0032. In drilling mud, the CoF can be assumed to be significantly higher.

Mud Stack Thrust Bearings Mud Motor Bearings For Downhole Drill 128713K

Mud Stack Thrust Bearings Mud Motor Bearings For Downhole Drill 128713K
