YRTS325 325*450*60mm High Speed Turntable Bearings Small Frictional Torque
YRTS325 325*450*60mm High Speed Turntable Bearings Small Frictional Torque
Specifications
Brand Name :
MONTON
Model Number :
YRTS325
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Certification :
ISO9001
Description

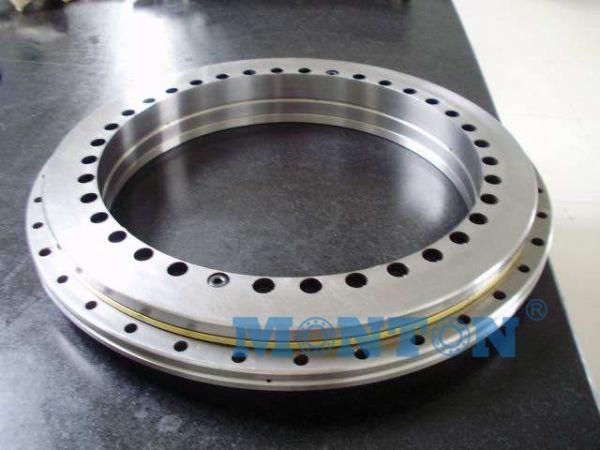

YRTS325 325*450*60mm High Speed Turntable Bearings Small Frictional Torque

YRTS rotary table bearing
bearing type boundary dimensions fixing holes
d D T H C d1 dn dm inner ring outer ring
unit: mm d0 ds TS quantity dL quantity
mm mm
YRTS325 325 450 60 40 20 415 342 430 9.3 15 8.2 34 9.3 33

bearing type Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed weight
axial radial
dynamic load static load dynamic load static load
MA2) Ｃａ Coa Cr Cor grease
G quantity qty×t Ｎｍ KN r/min Kg
YRTS325 2 M12 3 36×10° 34 191 1260 109 320 760 25

YRTS High speed turntable BearingsFeatures:YRTS turntable bearing is that YRT bearings radial rollers adopt nylon retainer. YRTM turntable bearing is YRT combination bearing installed with steel encoder,Website:http://www.bearinglbr.com, achieving real-time monitor and adjustment of two directions cylindrical roller combination bearings rotation accuracy, to ensure high-precision operation of the machine.Applications:Used in construction crane, high-precision CNC turntable, dividing head, aerospace, other high-precision field in measurement and testing.ModelNameFeaturesYRTSHigh speed turntable BearingsHaving features of high speed compared with YRT type.

YRTS325 325*450*60mm High Speed Turntable Bearings Small Frictional Torque
