EE923095 / 923175 Sealed Ball Bearings Small Ball Bearings EE 390095 390200
EE923095 / 923175 Sealed Ball Bearings Small Ball Bearings EE 390095 390200
Specifications
Brand Name :
MONTON
Model Number :
EE923095/923175
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Payment Terms :
TT
Supply Ability :
1000/pcs/week
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Material :
G20CrNi4A or GCr15SiMn
Accuracy :
P5
Vibration :
Z1V1 or Z2V2
Application :
Rolling mill or rolling steel for steel or aluminum factory
Main customers :
Aluminum or steel factory
Main Market :
Germany,Turkey
Description

EE923095/923175

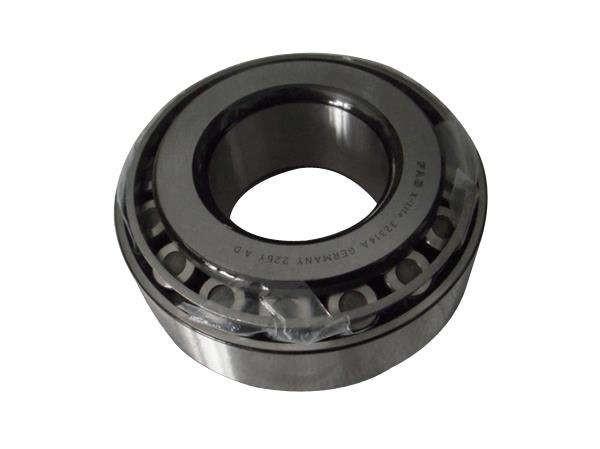

Tapered roller bearings EE923095/923175

Bearing number : EE923095/923175

Size (mm) : 241.3x444.5x101.6

Brand : Monton

Bore Diameter (mm) : 241,3

Outer Diameter (mm) : 444,5

Width (mm) : 101,6

Bearing dimensions and specification in Timken catalogue:

d - 241,3 mm

D - 444,5 mm

T - 101,6 mm

B - 100,012 mm

C - 76,2 mm

R - 6,3 mm

r - 4,8 mm

a - -19,3 mm

Da - 407 mm

db - 277 mm

da - 268 mm

Db - 403 mm

Weight - 62 Kg

Basic static load rating (C0) - 2420 kN

Factor (G1) - 1626,7

Factor (G2) - 136,5

Factor (Cg) - 0,0454

Factor (K) - 1,73

Basic dynamic load rating (C90) - 403

Basic dynamic load rating (Ca90) - 233

Basic dynamic load rating (C1) - 1560 kN

Calculation factor (e) - 0,34

Calculation factor (Y) - 1,78

Tags : 241.3x444.5x101.6

As different row configurations for rollers are required, tapered roller bearings can also be divided to double row tapered roller bearings and four row tapered roller bearings. These bearings have the advantage of combined load capacity in both radial and axial environments. Compared to other bearings of the same size, these tapered roller bearings have a relatively longer working life.

Tapered roller bearings are widely used in automotive, rolling mill, mining, metallurgy, plastics machinery and a host of other industries.

We can facilitate any enquiry for EE923095/923175 bearings including availability, pricing and technical details.

We can help our customers meet their requirements for branded bearings. Please call us or email to check on our latest prices, stock availability and to request product data sheets.
