Specifications
Brand Name :
MONTON
Model Number :
PE5A
Certification :
ISO9001
Place of Origin :
LUOYANG
MOQ :
1
Price :
USD
Payment Terms :
TT
Supply Ability :
1000/pcs/week
Delivery Time :
7-35 days
Packaging Details :
Single box/Wooden case
Material :
50Mn or 42CrMo
Delivery :
35working days
Accuracy :
P0 or P6
Application :
Solar Tracker And Wind Turbine
Description

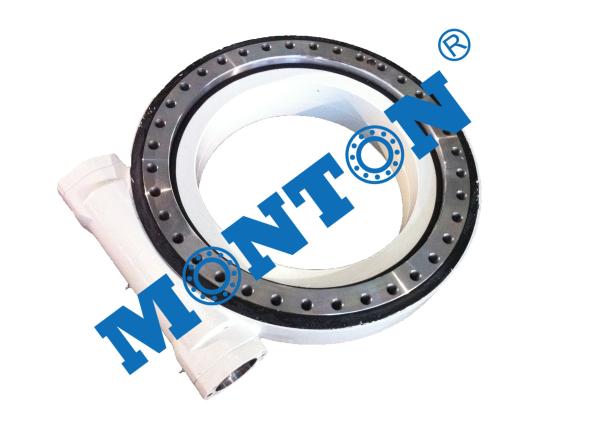

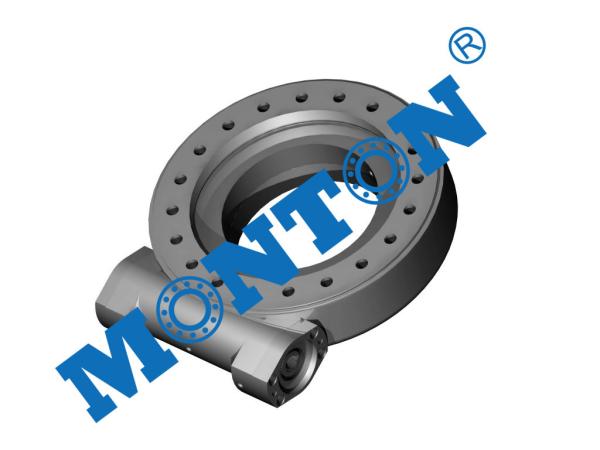

Totally enclosed housing slew drive High reliability For HCPV & PV

Typical applications:
Manlift platforms, steering gears for undercarriages of cranes, and heavy-duty vehicles, loading cranes

turntables, forklift rotators, mining equipment, photovoltaic and solar thermal applications

Slew drives are used for concurrent transmission of axial and radial forces, as well as transmission of tilting moments. Slew drives consist of a ball or roller slewing ring, hydraulic or electric drives, and a completely enclosed housing. Series WD slew drives are designed with worm gear.

Characteristics:

Exhibits high torque at low output speeds and transmits high tilting moments, axial and radial loads

Attains highest capacity with smallest diameter configuration

Flat design, due to tangentially located drives

Provides high torque transmission (however, the duty must be taken into consideration)

Self-locking and non-self-locking Slew Drives are available

Consider the position of the output shaft when selecting the Slew Drive

PE5A/ZE5A SLEWING DRIVE

MODEL OUTPUT TORQUE TILTING MOMENT HOLDING TORQUE STATIC AXIAL STATIC RADIAL DYNAMIC AXIAL DYNAMIC RADIAL GEAR RATIO TRACKING PRECISION UNIT WEIGHT
PE5A 600 N.m 3000 N.m 5500 N.m 45 kN 22 kN 14.4 kN 11.1 kN 62.1 I ≤.05°
II ≤.08°
III ≤.12°		 44 lb.
443 lbf-ft 2213 lbf-ft 4056 lbf-ft 10116 lbf 4946 lbf 3237 lbf 2495 lbf
ZE5A 360 N.m 3000 N.m 5500 N.m 45 kN 22 kN 14.4 kN 11.1 kN 62:1 0° 44 lb.
266 lbf-ft 2213 lbf-ft 4056 lbf-ft 10116 lbf 4946 lbf 3237 lbf 2495 lbf

se slewing drive
se slewing drive for construction machinery
se slewing drive is widely in machinery
se slewing drive is widely in machinery for aerial working platform
se slewing drive is widely in machinery for construction machinery
se14 slewing bearing
se-2 dual worm slewing drive for aerial working platform
se-2 dual worm slewing drive for construction machinery
se-2 series dual worm slewing drive for aerial working platform
se-2 series dual worm slewing drive for construction machinery
se-2 series slewing drive for solar system
se-2 series slewing drive for solar system for aerial working platform
se-2 series slewing drive for solar system for construction machinery
se-2 slewing drive for solar system
se-2 slewing drive for solar system for aerial working platform
se-2 slewing drive for solar system for construction machinery
se25 enclosed housing slewing drive manufacturers
se25 enclosed housing slewing drive suppliers
se5a slewing worm gear drive suppliers
single axis solar tracker

Attached the below model for your selection:

Standard Model Slewing Drive:
A. Enclosed housing (SE Series)
B. Open Housing (S Series)
C. Special Type
china tracker worm drive manufacturer ,dual axis tracker worm drive supplier

Enclosed Housing Slewing Drive  SE3 SE5 SE7 SE9 SE12 SE14 SE17 SE21 SE25
Precise Enclosed Housing Slewing Drive PE3 PE5 PE7 PE9 PE12 PE14 PE17 PE21 PE25
Worm Gear Slewing Drive WEA5 WEA7 WEA9 WEA12 WEA14 WEA17 WEA19 WEA21 WEA25
Dual Axis Slewing Drives SDE3 PDE3 SDE7A.5 PDE7A.5 SDE9 PDE9 WDE17
Vertical Enclosed Slewing Drive VE3 VE6 VE7 VE9A VE17 VE21 WVE27



Structure drawings
china tracker worm drive manufacturer ,dual axis tracker worm drive supplier

1, Housing base
2, Slewing Ring
3, Raceway
4, Seal
5, Top Plate
6, Drive(hydraulic motor /electronic motor )
7, Motor Adapter
8, O-ring
9, Input Hole
10, Shaft Opposite to Motor
11, End Cap
12, Cover
13, Encoder

Friendship Recommendation

  • Vertical installation

It is advised to mount the slewing drives referring to attached drawing upside in solar applications for better protection.
For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.

  • Horizontal installation

It is advised to mount the slewing drives upside down on the azimuth axis in solar applications for better protection and add protection for the elevation axis.
For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.

china tracker worm drive manufacturer ,dual axis tracker worm drive supplier

worm gear slew drives, for solar panel,slew worm drive,slewing ring for solar energy.
