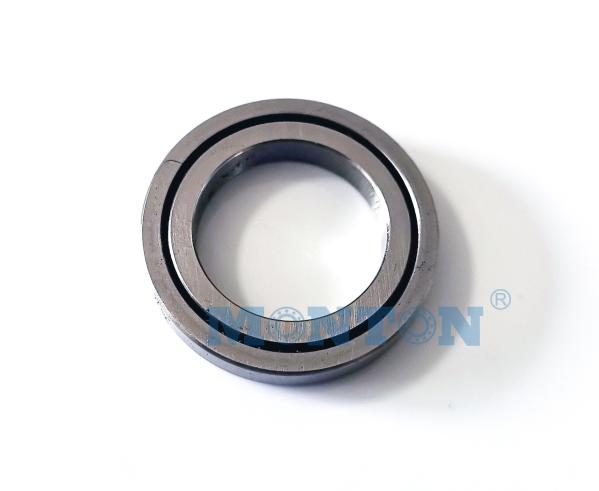

RAU1505 slim thin section crossed roller bearing Precision Servo Integrated Hollow Brushless Torque Arm Industrial
RAU1505 slim thin section crossed roller bearing Precision Servo Integrated Hollow Brushless Torque Arm Industrial
RAU1505 slim thin section crossed roller bearing Precision Servo Integrated Hollow Brushless Torque Arm Industrial
RAU1505 slim thin section crossed roller bearing Precision Servo Integrated Hollow Brushless Torque Arm Industrial
RAU1505 slim thin section crossed roller bearing Precision Servo Integrated Hollow Brushless Torque Arm Industrial
RAU1505 slim thin section crossed roller bearing Precision Servo Integrated Hollow Brushless Torque Arm Industrial
Specifications
Brand Name :
MONTON
Model Number :
RAU1505
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Ask
Payment Terms :
T/T
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Description

RAU1505 slim thin section crossed roller bearing Precision Servo Integrated Hollow Brushless Torque Arm Industrial

Shaft
diameter		 ModelNo. Main dimensions Shoulder height Basic load rating
(radial)		 Mass
Inner
diameter d		 Outer
diameter D		 Roller pitch
circle
diameter dp		 Width B B1 Greasing
hole d0		 r min ds
(max)		 Dh
(min)		 C kN Co kN g
15 RAU1505 15 26 19.7 5 1 0.15 17.5 22 1.32 1.1

12

Micro Cross-Roller Ring RAU

RAU1505 slim thin section crossed roller bearing Precision Servo Integrated Hollow Brushless Torque Arm Industrial

For a compact and lightweight system

・Micro Cross-Roller Ring with inner diameter of 10 mm and outer diameter of 21 mm

・More compact than a conventional angular contact ball bearing

・Spacer retainer enables smooth movement and high rotation accuracy.

RAU1505 slim thin section crossed roller bearing Precision Servo Integrated Hollow Brushless Torque Arm Industrial

Structure

In the RAU, the rollers travel on the V-shaped raceways ground into the inner and outer rings.

Alternating rollers are arrayed orthogonally so that one bearing can support loads and moments in any direction.

Also, because of the integrated structure, the RAU can be used for either inner ring or outer ring rotation.

Fig. 1 Structure of Cross Roller-Ring Model RAU

1. Compact and Rigid

The RAU is more compact and lighter weight than a double row angular contact ball bearing. It is also more rigid, even though it is made as compact as possible.

RAU1505 slim thin section crossed roller bearing Precision Servo Integrated Hollow Brushless Torque Arm Industrial

2. Light Weight

The cross-sectional area of the model RAU is 57% smaller than theCross-Roller Ring model RA, which was previously the thinnest ever. This enables further weight reduction. The line-up also includes other models

whose inner diameters are the smallest to date: 10, 15, 20, 30, and 40mm.
