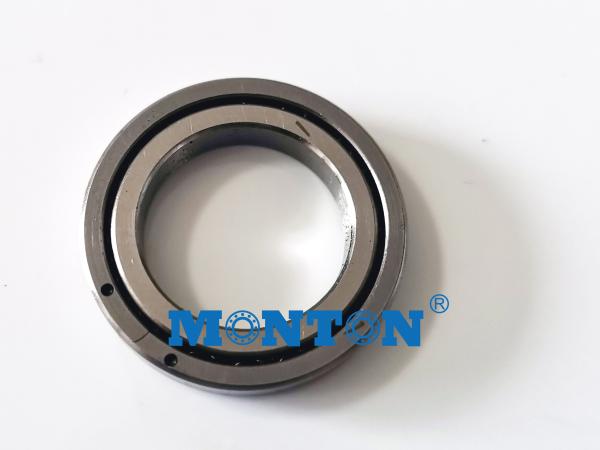

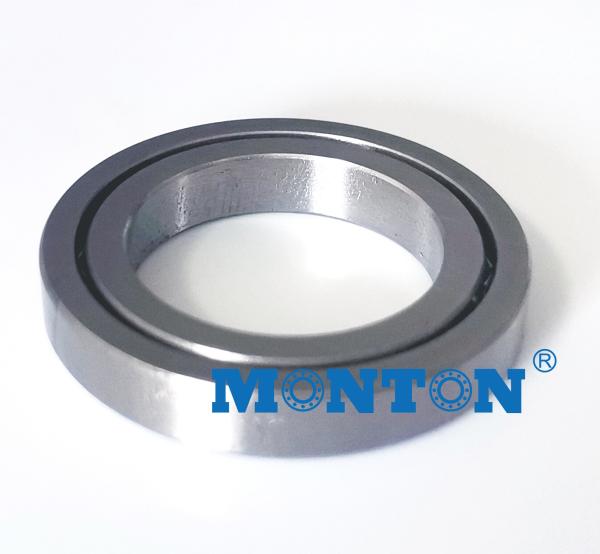

CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings
CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings
CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings
CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings
CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings
CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings
CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings
CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings
CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings
CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings
Specifications
Brand Name :
MONTON
Model Number :
CRBT20A
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Ask
Payment Terms :
T/T
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Description

CRBT20A 20*31*5mm

Super Slim Type Crossed Roller Bearings

CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings

Shaft
dia. mm		 Identification number Mass
(Ref.) g		 Boundary dimensions (mm) dimensions (mm) Basic dynamic
load rating C		 Basic static
load rating C0
d D B rmin da Da N N
20 CRBT20A 14.8 20 31 5 0.15 22.5 27 1400 1290

Features of Super Slim Type Crossed Roller Bearing CRBT

The world's thinnest roller type!

Very low cross sectional height of 5.5 mm.

The cross sectional height is reduced by 69% in comparison with CRBS, which was the thinnest before (bearing bore diameter 50 mm). The width is also as small as 5 mm and the cross sectional area is reduced by 43% in comparison with conventional products.

Significant weight saving by 38% in comparison with conventional types was realizedWeight reduction is thoroughly pursued. The mass ratio is 0.38 and significant weight saving was realized in comparison with conventional slim type CRBS (bearing bore diameter 50 mm).

CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings

CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings

CRBT20A 20*31*5mm Super Slim Type Crossed Roller Bearings
