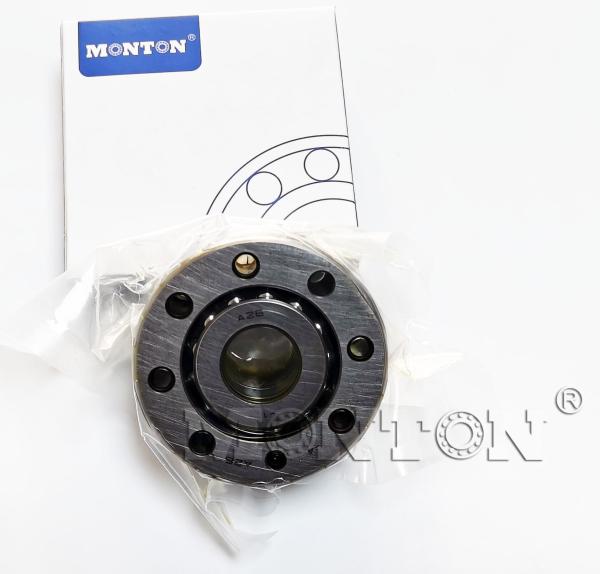

ZKLN0832-2RS 8*32*20mm Angular contact bearing high speed high precision ceramic spindle ball bearing
ZKLN0832-2RS 8*32*20mm Angular contact bearing high speed high precision ceramic spindle ball bearing
ZKLN0832-2RS 8*32*20mm Angular contact bearing high speed high precision ceramic spindle ball bearing
ZKLN0832-2RS 8*32*20mm Angular contact bearing high speed high precision ceramic spindle ball bearing
ZKLN0832-2RS 8*32*20mm Angular contact bearing high speed high precision ceramic spindle ball bearing
ZKLN0832-2RS 8*32*20mm Angular contact bearing high speed high precision ceramic spindle ball bearing
ZKLN0832-2RS 8*32*20mm Angular contact bearing high speed high precision ceramic spindle ball bearing
ZKLN0832-2RS 8*32*20mm Angular contact bearing high speed high precision ceramic spindle ball bearing
ZKLN0832-2RS 8*32*20mm Angular contact bearing high speed high precision ceramic spindle ball bearing
ZKLN0832-2RS 8*32*20mm Angular contact bearing high speed high precision ceramic spindle ball bearing
Specifications
Brand Name :
MONTON
Model Number :
ZKLN0832-2RS
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Number of row :
Single Row
Precision rating :
P0 P6 P5 P4 P2
Seals type :
Sealed
Structure :
Angular Contact,Ball beairng
Type :
Ball
Material :
Bearing steel
Service :
great
Feature :
long life,High Speed
Application :
Machine Parts
Sample :
Avaliable
Name :
Angular contact ball bearing
Description

ZKLN0832-2RS 8*32*20mm Angular contact bearing high speed high

precision ceramic spindle ball bearing​

Designation Dimensions Mounting dimensions Basic load ratings
axial		 Recommended precision locknut Required locknut force3)
axial
N		 Mass
m
= kg
d D
–0,010		 B
–0,25		 d1 r
min.		 r1
min.		 Da
max.		 da
min.		 dyn. Ca
N		 stat.
C0a N		 For radial locking For axial locking Tightening torque4)
MA
Nm
ZKLN0832-2RS 8 32 20 19 0.3 0.6 26 11 13800 16300 ZM08 – 4 3468 0.09
Product Description

ZKLF1255-2RS-XL Axial Angular Contact Bearing

These bearings are designed for the highly dynamic operating conditions in screw drives that require high accuracy, high load carrying capacity, high rigidity, low friction and maintenance-free or low-maintenance.

The bearings can support both radial forces and high axial forces due to the 60� contact angle.

The ZKLF bearing range are designed to be screw mounted directly on the adjacent construction or in a radial locating bore.

  • Double direction

  • Lip seals on both sides

    ZKLN0832-2RS 8*32*20mm Angular contact bearing high speed high precision ceramic spindle ball bearing
