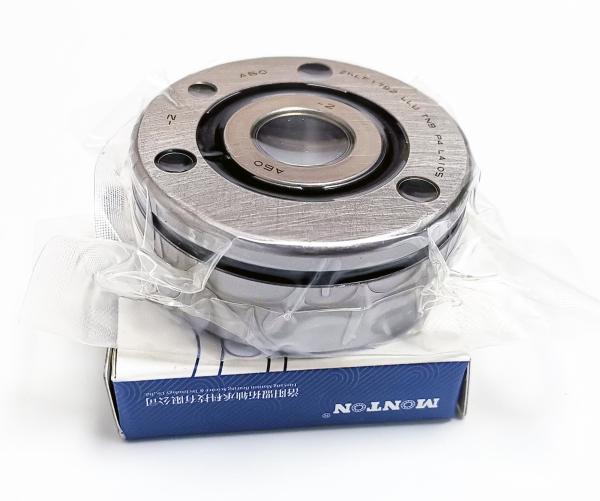

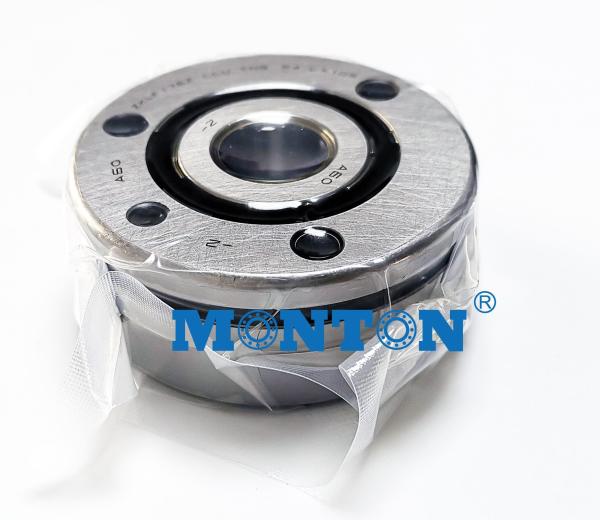

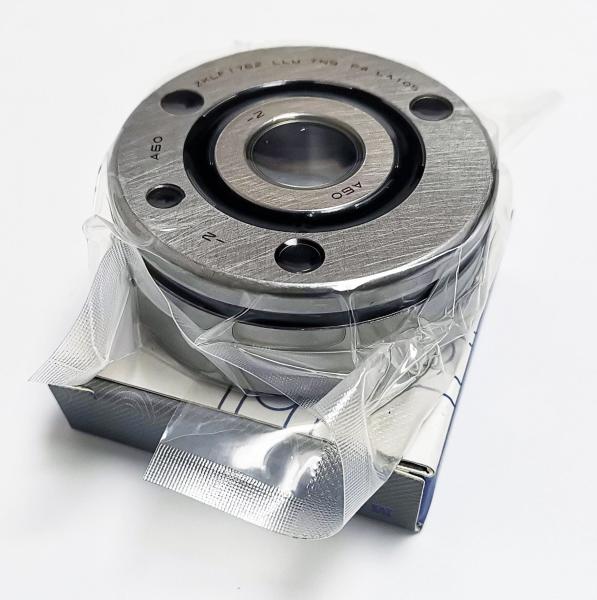

ZKLF1560-2RS-PE 15*60*25mm Angular Contact Ball Bearing Angular Contact Ball Bearing High Precision High Speed Bearing
ZKLF1560-2RS-PE 15*60*25mm Angular Contact Ball Bearing Angular Contact Ball Bearing High Precision High Speed Bearing
ZKLF1560-2RS-PE 15*60*25mm Angular Contact Ball Bearing Angular Contact Ball Bearing High Precision High Speed Bearing
ZKLF1560-2RS-PE 15*60*25mm Angular Contact Ball Bearing Angular Contact Ball Bearing High Precision High Speed Bearing
ZKLF1560-2RS-PE 15*60*25mm Angular Contact Ball Bearing Angular Contact Ball Bearing High Precision High Speed Bearing
ZKLF1560-2RS-PE 15*60*25mm Angular Contact Ball Bearing Angular Contact Ball Bearing High Precision High Speed Bearing
ZKLF1560-2RS-PE 15*60*25mm Angular Contact Ball Bearing Angular Contact Ball Bearing High Precision High Speed Bearing
ZKLF1560-2RS-PE 15*60*25mm Angular Contact Ball Bearing Angular Contact Ball Bearing High Precision High Speed Bearing
ZKLF1560-2RS-PE 15*60*25mm Angular Contact Ball Bearing Angular Contact Ball Bearing High Precision High Speed Bearing
ZKLF1560-2RS-PE 15*60*25mm Angular Contact Ball Bearing Angular Contact Ball Bearing High Precision High Speed Bearing
Specifications
Brand Name :
MONTON
Model Number :
ZKLF1560-2RS-PE
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Precision rating :
P4
Structure :
Angular Contact,Ball beairng
Material :
GCr15
Market :
Germany,Japan,Italy,USA,etc
Customers :
DMG,FFG,etc
Description

ZKLF1560-2RS-PE 15*60*25mm Angular Contact Ball Bearing Angular

Contact Ball Bearing High Precision High Speed Bearing

Designation Dimensions Pitch
n×t		 Mounting dimensions Recommended INA precision locknut Required locknut force
axial
N		 Mass
d
–0,005		 D
–0,01		 B
–0,25		 d1 r
min.		 r1 min. J d2 b I Da max. da min. t1 For radial locking For axial locking Tightening torque MA
Nm		 m
= kg
ZKLF1560-2RS-PE 15 60 25 28 0.3 0.6 46 6.8 3 17 3×120° 35 20 0.1 ZM15 AM15 10 5484 0.43

ZKLF1560-2RS-PE 15*60*25mm Angular Contact Ball Bearing Angular Contact Ball Bearing High Precision High Speed BearingZKLF1560-2RS-PE 15*60*25mm Angular Contact Ball Bearing Angular Contact Ball Bearing High Precision High Speed Bearing

d 17 mm Tolerance: 0/-0,01
D 62 mm Tolerance: 0/-0,013
B 25 mm Tolerance: 0/-0,25
M6 Threaded connector for lubrication
60 ° Contact angle
M6 Fixing screws to DIN EN ISO 4762 10.9

Screws not included in scope of delivery.
Tightening torque according to
manufacturer’s data.
b 3 mm
Da max 37 mm
d1 30 mm
d2 6,8 mm
da min 23 mm
I 17 mm
J 48 mm
na x ta 3 x 120° Fixing screws to DIN EN ISO 4762 10.9

Screws not included in scope of delivery.
Tightening torque according to
manufacturer’s data.
Number of holes in adjacent construction corresponds to n a.
n x t 6 x 60° Pitch
r1 min 0,6 mm
rmin 0,3 mm
t1 0,1 mm
m 0,45 kg ≈ Mass
Ca 18800 N Basic dynamic load rating, axial
C0a 31000 N Basic static load rating, axial
Cua 1420 N Fatigue limit load, axial
nG Fett 7600 1/min Limiting speed for grease lubrication
nϑ 3300 1/min Thermally safe operating speed
MRL 0,24 Nm Bearing frictional torque
caL 450 N/µm Axial rigidity
ckL 80 Nm/mrad Tilting rigidity
Mm 0,132 kg * cm^2 Mass moment of inertia for rotating inner ring
5 µm Axial runout
The axial runout data for screw drive bearing arrangements are based on the rotating inner ring.
ZM17 Recommended INA precision locknuts with radial clamping

The recommended INA precision locknuts are not included in the scope of delivery and must be ordered separately.
AM17 Recommended INA precision locknuts with axial clamping

The recommended INA precision locknuts are not included in the scope of delivery and must be ordered separately.
MA 15 Nm Tightening torque

Only valid in conjunction with INA precision locknuts.
Observe the guidelines on locating/locating bearing arrangements.
7514 N Requisite locknut force, axial

The requisite axial locknut force must be observed when using other locknuts.

Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e. simultaneously supporting radial and axial loads.The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions.
