XU050077 40*112*22mm crossed roller bearing Harmonic Drive Reducer Gear box for DC Motor
XU050077 40*112*22mm crossed roller bearing Harmonic Drive Reducer Gear box for DC Motor
XU050077 40*112*22mm crossed roller bearing Harmonic Drive Reducer Gear box for DC Motor
XU050077 40*112*22mm crossed roller bearing Harmonic Drive Reducer Gear box for DC Motor
XU050077 40*112*22mm crossed roller bearing Harmonic Drive Reducer Gear box for DC Motor
XU050077 40*112*22mm crossed roller bearing Harmonic Drive Reducer Gear box for DC Motor
XU050077 40*112*22mm crossed roller bearing Harmonic Drive Reducer Gear box for DC Motor
XU050077 40*112*22mm crossed roller bearing Harmonic Drive Reducer Gear box for DC Motor
XU050077 40*112*22mm crossed roller bearing Harmonic Drive Reducer Gear box for DC Motor
XU050077 40*112*22mm crossed roller bearing Harmonic Drive Reducer Gear box for DC Motor
Specifications
Brand Name :
MONTON
Model Number :
XU050077
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Type :
Roller
Seals type :
Sealed
Material :
GCr15 bearing steel
Bore size :
40mm
Outside diameter :
112mm
Precision rating :
P0 P6 P5 P4 P2
Application :
Harmonic Drive Servo Actuator
Number of row :
Single Row
Feature :
Long Life,High Speed
Service :
OEM Customized Services
Product name :
Crossed Roller Bearing
Cage :
Steel Cage.Brass Cage.Nylon Cage
Description

XU050077 40*112*22mm crossed roller bearing

Harmonic Drive Reducer Gear box for DC Motor

XU050077 40*112*22mm crossed roller bearing Harmonic Drive Reducer Gear box for DC Motor

Identification number Main dimensions Basic load rating(axial) Basic load rating(radial) weight
inner ring outer ring width φLa na φLi ni Ca C0a Cr Cor Kg
d D KN KN KN KN
(mm) (mm) B (mm)
XU050077 40 112 22 97 6-φ6.6 56 6-M8 22.4 29 14.3 14.2 1.4

Product Description

The Structure and Character of Cross Roller Bearing Crossed roller bearing is a special type bearing with split inner ring and outer ring rotation. The divided inner ring or outer ring is fixed with the cross roller collar after the roller and the spacer are installed to prevent separation, so the operation is simple when installing the cross roller collar. because the inner or outer ring of the cross roller bearing has a two-part structure, the bearing gap can be adjusted, and even if a preload is applied, a high-precision rotary motion can be obtained. Moreover, due to its special structure, it can be applied to the joints and rotating parts of industrial robots, rotary tables of machining centers, rotating parts of manipulators, precision rotary tables, medical equipments, measuring instruments, IC manufacturing machines, etc.

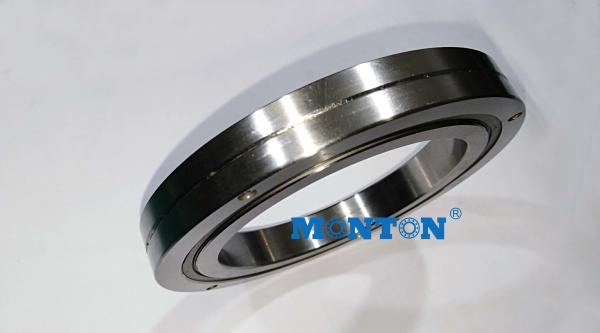

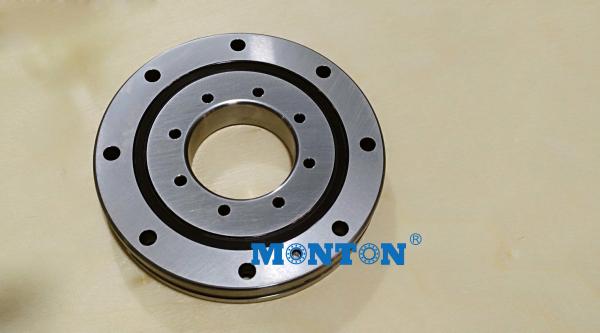

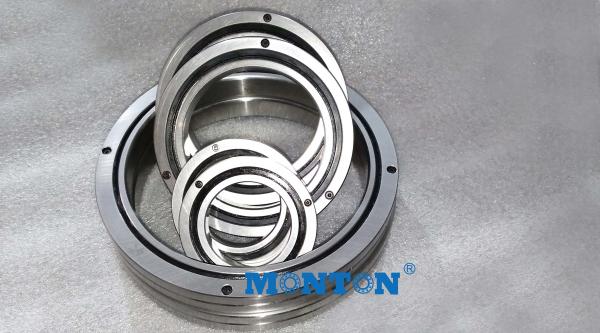

cross roller bearing picture display​

XU050077 40*112*22mm crossed roller bearing Harmonic Drive Reducer Gear box for DC Motor
