30TAC62CSUHPN7C 30*62*15mm Thrust Angular Contact Ball Bearing for Ball Screw
30TAC62CSUHPN7C 30*62*15mm Thrust Angular Contact Ball Bearing for Ball Screw
Specifications
Brand Name :
MONTON
Model Number :
30TAC62CSUHPN7C
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Ask
Payment Terms :
T/T
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Number of row :
Single Row,Double Row
Precision rating :
P4,P5
Seals type :
Open,ZZ 2RS OPEN
Structure :
Angular Contact
Type :
Angular contact
Bore size :
0 - 20 mm
Outside diameter :
10 - 55 mm
Application :
Machine Parts,Air compressor,Reducer,Pump,Car wheel
Sample :
Avaliable
Product name :
30TAC62CSUHPN7C
Package :
Standard package
Vibration :
V1 V2 V3 V4
Clearance :
C0
Description

30TAC62CSUHPN7C 30*62*15mm Thrust Angular Contact Ball Bearing for Ball Screw

Part Number 30TAC62BSUC10PN7B
Weight 1.0000
Brand MONTON
Bearing Type Angular Contact Ball Screw Support Bearing - ABEC 7 Precision
Inside Diameter 30 MM
Outside Diameter 62 MM
Width 15 MM
Other Dimensions N/A
Enclosure None
Material Bearing Steel
Lubrication Provided on Package
Special Features N/A
Reference Number L3062H; MM30BS62; 30TAB06; 30TAC62B; BSB030062; BSD3062G

Super Precision Ball Screw Support Metric Ball Bearing

60 Degree Contact Angle

SU = Single Universal Ground

Can Combine For: Duplex, Triplex, Quad -- Face to Face or Back to Back

C10 = Standard Preload Symbol for Metric Series

PN7B = Tighter Bore and O.D. Accuracy for SU Bearing

P4 = ABEC 7 Precision

Note: Pricing is for 1 Bearing Single, Duplex Pair = 2, Triplex = 3 Bearing Singles

1 Features


This is highly rigid and accurate ball screw support bearing often used for the machine tool driving mechanism.
1 High axial rigidity
Uses many balls, and set high contact angle at 60 degrees.


2 Small friction torque
Friction torque is smaller than that of tapered or cylindrical roller bearing. This contributes to
accurate rotation by a small driving power.


3 Axial play is pre-adjusted


Combination bearings are already adjusted to a suitable preload. Universal combination bearing
(SU) furnishes certain preload for all combinations
(DB, DF, and other).


4 Simple mounting structure


A duplex combination of bearings can receive axial
and radial loads. Therefore, the installation
structure is simpler than when both a thrust bearing
and a radial bearing are used.


5 Easy handling
Inner and outer rings are inseparable, and are easy to handle.


6 Superb polyamide resin retainer


Uses polyamide resin retainer which is superb to
friction and furnishes high precision rotations.

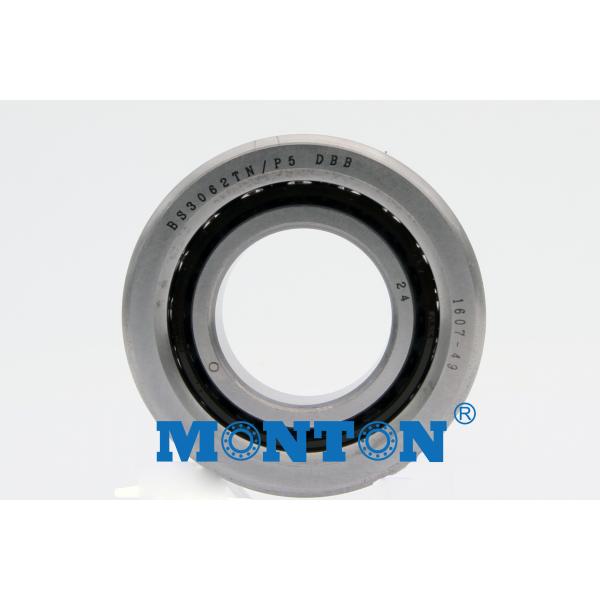

30TAC62CSUHPN7C 30*62*15mm Thrust Angular Contact Ball Bearing for Ball Screw

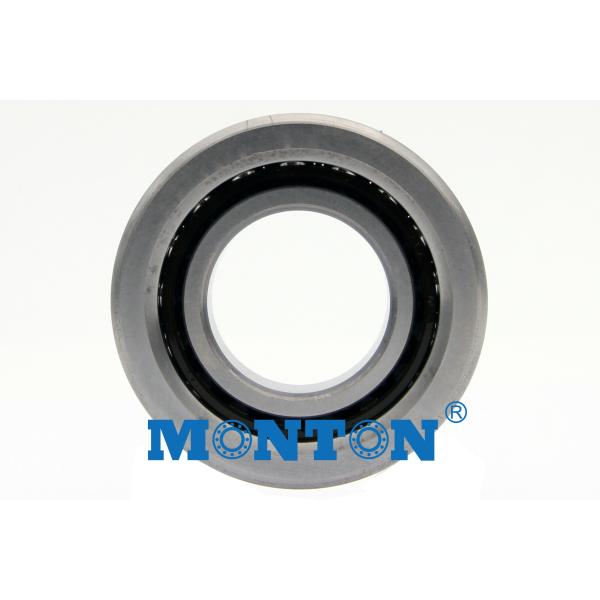

30TAC62CSUHPN7C 30*62*15mm Thrust Angular Contact Ball Bearing for Ball Screw
