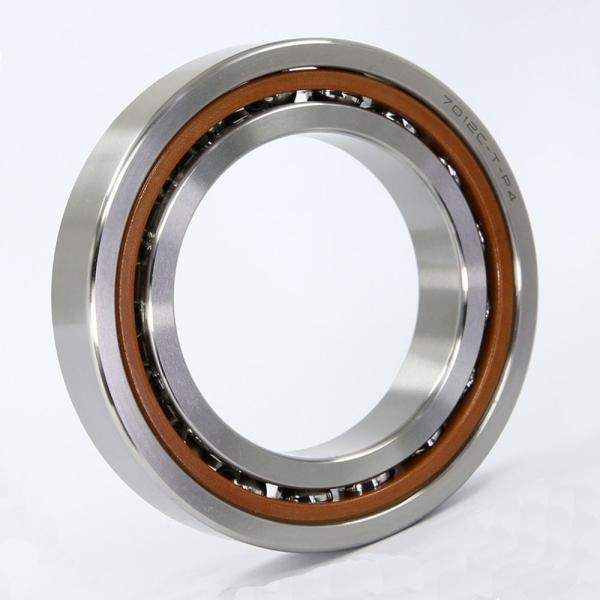

High Speed Customized Ceramic Angular Contact Ball Bearing For Cnc Machine Spindle
High Speed Customized Ceramic Angular Contact Ball Bearing For Cnc Machine Spindle
High Speed Customized Ceramic Angular Contact Ball Bearing For Cnc Machine Spindle
High Speed Customized Ceramic Angular Contact Ball Bearing For Cnc Machine Spindle
High Speed Customized Ceramic Angular Contact Ball Bearing For Cnc Machine Spindle
High Speed Customized Ceramic Angular Contact Ball Bearing For Cnc Machine Spindle
High Speed Customized Ceramic Angular Contact Ball Bearing For Cnc Machine Spindle
High Speed Customized Ceramic Angular Contact Ball Bearing For Cnc Machine Spindle
High Speed Customized Ceramic Angular Contact Ball Bearing For Cnc Machine Spindle
High Speed Customized Ceramic Angular Contact Ball Bearing For Cnc Machine Spindle
Specifications
Brand Name :
MONTON
Model Number :
H7005C-2RZHQ1P4DBA
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Certification :
ISO9001
Payment Terms :
T/T
Description

H7005C-2RZHQ1P4DBA 25*47*12mm

high speed customized ceramic angular contact ball bearings for cnc machine spindle

Part Number H7005C-2RZHQ1P4DBA
For Load Direction Combined Radial and Thrust
Bearing Type Angular contact ball bearing
Construction Combined Radial and Thrust
Single Row/Double Row Single
Seal Type Open
Precision Rating P4 (ABEC-7) P5 (ABEC-5)
Contact Angle 15
Part Number 7005C
Duplex DF (face-to-face arrangement)
DT (tandem arrangement)
Bore Dia (d) 25 mm
Bore Dia Tolerance -0.005mm to 0
Outer Dia (D) 47 mm
Outer Dia Tolerance -0.006mm to 0
Width (B) 12 mm
Width Tolerance -0.12mm to 0
Ring Material 52100 Chrome steel
Ball Material SN24 Ceraimc Ball Si3N4
Cage Material TYN (ball guided polyamide resin cage)
TR (outer ring guided polyamide resin cage)
Dynamic Load Rating (Cr) (KN) 12.3
Static Load Rating (Cor) (KN) 7.4
Axial Load (KN) 5.2
Max Speed (Grease) (RPM) 32000
Max Speed (Oil) (RPM) 48700
Preload EL (extra light preload)
L (light preload)
M (medium preload)
H (heavy preload)
CP (special preload)
CA (special axial clearance)
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Weight (grams) 0.078
H7005C-2RZHQ1P4DBB,H7005C-2RZHQ1P5DBA,H7005C-2RZHQ1P5DBB,H7005C-2RZHQ1P4SUL,H7005C-2RZHQ1P5SUL
