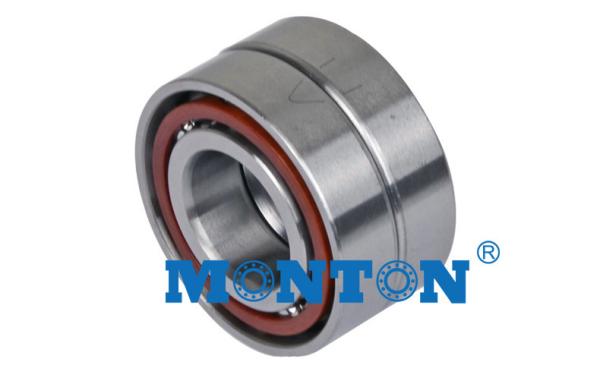

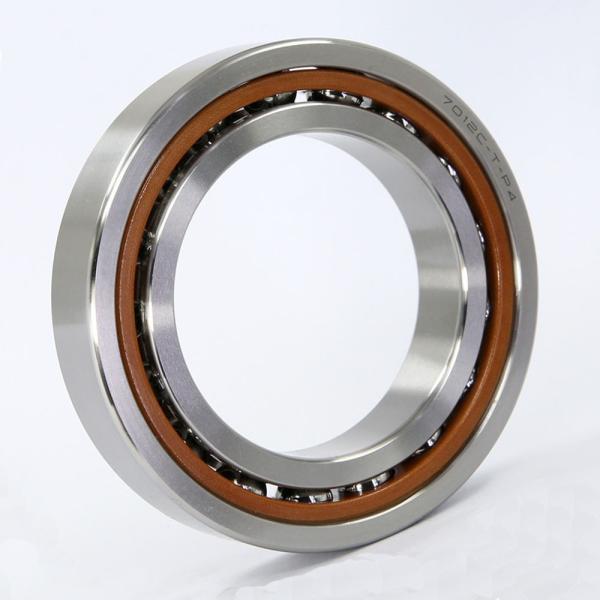

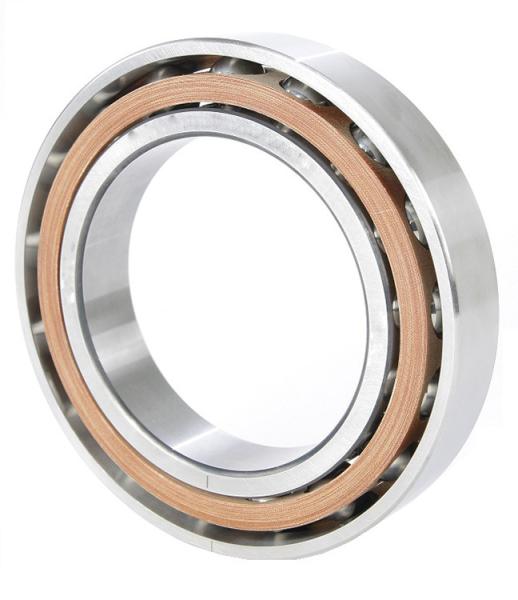

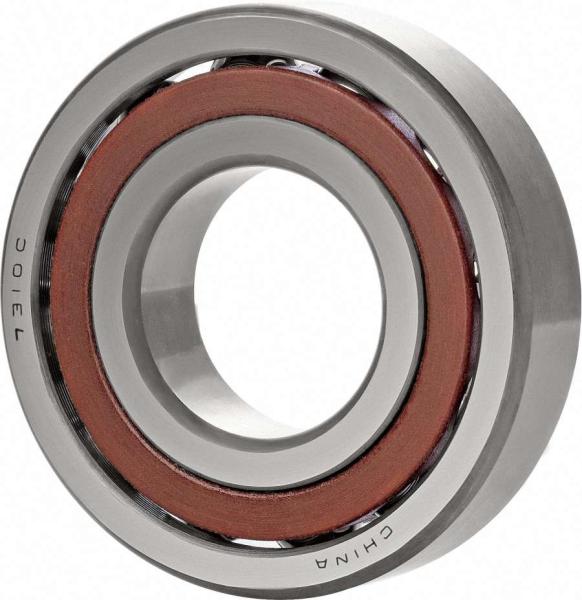

H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle
H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle
H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle
H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle
H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle
H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle
H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle
H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle
H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle
H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle
Specifications
Brand Name :
MONTON
Model Number :
7014ACP5DBB
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Certification :
ISO9001
Payment Terms :
T/T
Description

H7011C/ACP4 High precision angular contact ball bearings machine tool spindle factory

Mechanical angular contact ball bearing H7011C/AC definition

angular contact ball bearings in a tandem arrangement are used when the actual thrust force exceeds the thrust load capacity of a single angular contact ball bearing , Single row angular contact ball bearings in tandem arrangement must always be adjusted against another bearing inversely arranged for shaft guidance in the opposite direction , Single row angular contact ball bearings in spindle bearing design must not be exposed to any misalignments .

Mechanical Angular contact ball bearing design draft :

H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle

Mechanical Angular contact ball bearing H7011C/AC basic information

Commodity name Angular contact ball bearing
Bearing model H7011C/AC bearing
Bearing specification 55*90*18 mm
Weight /KG 0.80 KG
Greese/Oil As requirement
Bearing Series 7xxx,B7xxx,718,719xx
Ring Materical Chrome Steel,Carbon steel, Stainless steel
Tolerance grade GB/T307.1-205
ID Size 10mm-280mm
Quality standard Bearing H7011C/AC passed ISO 9001:2008 standard
Bearing Precision P0,P6,P5 ,P4
Steel pressed cage Bending claw form or rivet form
Delivert Date Normally ready goods and stock within 7 days
Payment Terms A:30% T/T In Advance,70% Against Copy Of B/L B: 100% L/C At Sight C: Paypal D: Western Union
Application Home appliances, low noise and high speed electric motors,automotive
components,pumps,machinery.
Bearing Service Bearing H7011C/AC offer OEM service
Package Single box or according to buyers requirement
We promise We have complete process for the production and quality assurance to make
sure our products can meet your requirement.

Bearing H7011C/AC other Series :

7000C ∝15° 7000AC ∝25° 7000B ∝40°


Boundary dimensions
Limiting speeds
Bearing Desig-nations
d D B
Grease
Cor
mm r/min
12 21 5 70000 110000 71801C
15 24 5 60000 90000 71802C
17 26 5 60000 90000 71803C
20 32 7 45000 67000 71804C
25 37 7 38000 56000 71805C
30 42 7 32000 48000 71806C
35 47 7 26000 40000 71807C
40 52 7 24000 38000 71808C
45 58 7 20000 34000 71809C
50 65 7 18000 30000 71810C
55 72 9 16000 26000 71811C
60 78 10 15000 24000 71812C
65 85 10 14000 22000 71813C
70 95 10 12000 19000 71814C
75 95 10 12000 19000 71815C
80 100 10 11000 18000 71816C
85 110 13 10000 17000 71817C
90 115 13 9500 16000 71818C
95 120 13 9000 15000 71919C
100 125 13 8500 14000 71820C

H7011C / ACP4 High Precision Angular Contact Ball Bearing Machine Tool Spindle
