7005CTYNSULP4 25mm X 47mm X 12mm Spindle Bearing / Precision Angular Ball Bearing
7005CTYNSULP4 25mm X 47mm X 12mm Spindle Bearing / Precision Angular Ball Bearing
7005CTYNSULP4 25mm X 47mm X 12mm Spindle Bearing / Precision Angular Ball Bearing
7005CTYNSULP4 25mm X 47mm X 12mm Spindle Bearing / Precision Angular Ball Bearing
7005CTYNSULP4 25mm X 47mm X 12mm Spindle Bearing / Precision Angular Ball Bearing
7005CTYNSULP4 25mm X 47mm X 12mm Spindle Bearing / Precision Angular Ball Bearing
7005CTYNSULP4 25mm X 47mm X 12mm Spindle Bearing / Precision Angular Ball Bearing
7005CTYNSULP4 25mm X 47mm X 12mm Spindle Bearing / Precision Angular Ball Bearing
7005CTYNSULP4 25mm X 47mm X 12mm Spindle Bearing / Precision Angular Ball Bearing
7005CTYNSULP4 25mm X 47mm X 12mm Spindle Bearing / Precision Angular Ball Bearing
7005CTYNSULP4 25mm X 47mm X 12mm Spindle Bearing / Precision Angular Ball Bearing
7005CTYNSULP4 25mm X 47mm X 12mm Spindle Bearing / Precision Angular Ball Bearing
Specifications
Brand Name :
MONTON
Model Number :
7005CTYNSULP4
Place of Origin :
CHINA
MOQ :
1
Price :
USD
Supply Ability :
10000PCS/WEEK
Delivery Time :
7-35 days
Packaging Details :
Singlebox
Certification :
ISO9001
Payment Terms :
T/T
Description

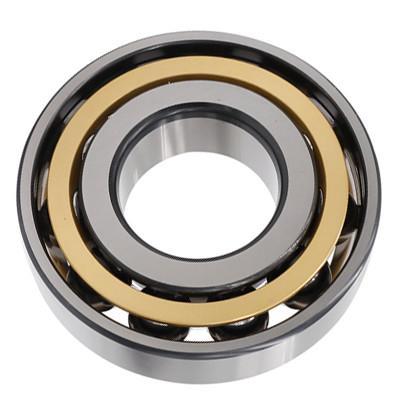

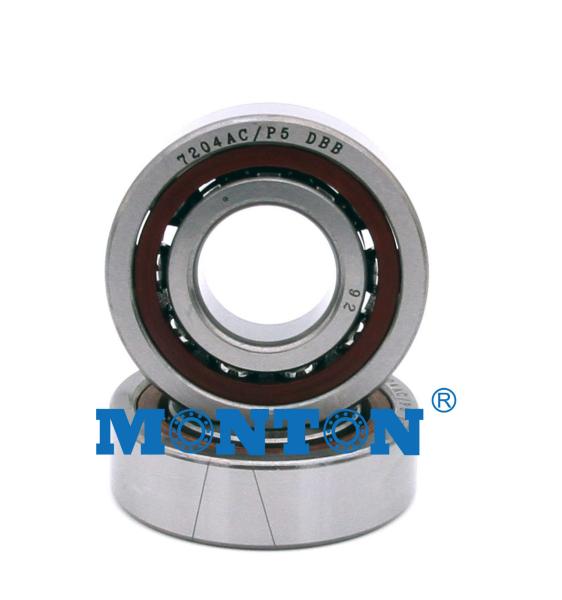

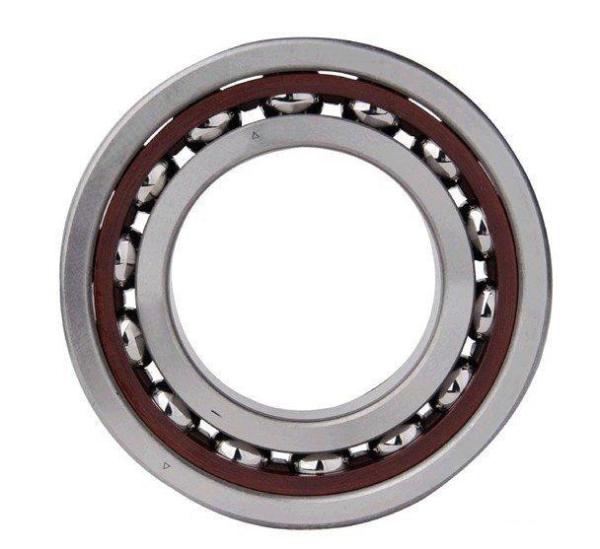

7005CTYNSULP4 Angular Contact Ball Bearing

25mm X 47mm X 12mm bearing for machine tool spindle

Super Precision Angular Contact bearings are designed for rigid, high speed, high tolerance applications. Spindle bearings used in pairs in a 'back to back' or 'face to face' arrangemet can support axial forces on both directions and moments. Bearings in a tandem arrangement can only support axial loads in one direction. Spindle bearings are available with a 15 degree or 25 degreee contact angle. Various cage options are available as well as the use of ceramic balls which allow for higher speed, lower friction and heat generation and a longer operating life. Available bore dimension range 10mm to 240mm. Super Precision also available in Radial Ball Bearings.

Measurements

  • Inner Diameter: 25
  • Outer Diameter: 47
  • Thickness: 12
  • Measurement Unit: Metric

Materials

  • Bearing Type: Radial Bearing
  • Product Seal: No Seal (N)
  • Ball Material: Chrome Steel
  • Retainer Material: Metal or High Speed Plastic

Technical Specifications

  • Quantity: 1
  • Condition: New Inventory From Factory.
  • Quality Level ABEC 3 or Better
  • Operating Temperature: Sealed or Metal Shields Ranges: –20 °F to +230°F [–30 °C to +110°C]. The determining factor will be the lube and the seal material.
  • Raceways: Finely polished superior finish for long life, and low noise.
  • Lubrication Wide temperature range (-50F to + 300F) High Quality Synthetic Lubricant.

7005C bearing

Bearing name 7005C bearing
Classification Angular Contact Ball Bearings Brand MONTON
New models 7005C Old Models 36105 bearing
Inner diameter d 25 Outer diameter D 47
Thickness B(mm) 12 Reference Model
Rated speed Limiting speed
Static Load Dynamic load
7005CTYNSULP4 25mm X 47mm X 12mm Spindle Bearing / Precision Angular Ball Bearing
