Small Home Use 100-1000kg/h Flat Die Chicken Animal Feed Pellet Mill

Introduction for Flat Die Chicken Animal Feed Pellet Mill:

This flat die chicken animal feed pellet mill is mainly used for producing feeds for chicken, cow, sheep, rabbit, chick, duck, pig, shrimp and making other industrial pellets. The flat die animal feed pellet mill is widely used for industry, plastic pellet, organic fertilizer and wood pellet.

Pellet size is available from 2mm to 8mm.

Pellets are formed through pressing, which can kill some common pathogenic microorganisms and parasites to prevent some diseases.

As the moisture of pellet is low, it is easy for storage and can keep its original shape in water, which increase the utilization rate of feed greatly.

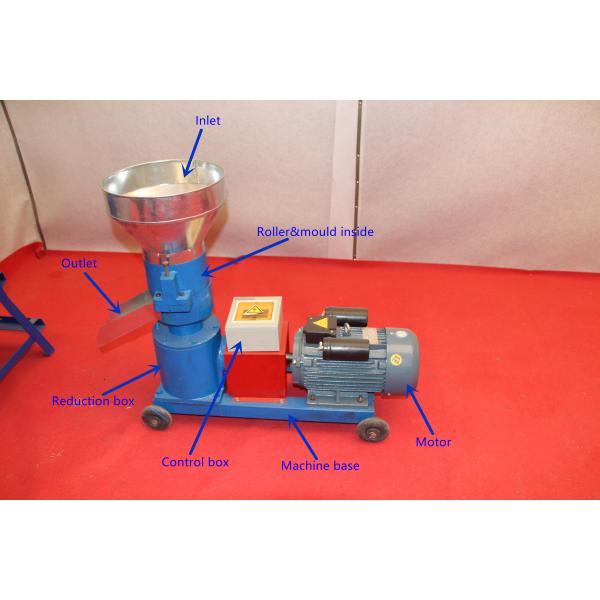

Structure of Flat Die Chicken Animal Feed Pellet Mill:

Main Parameters of Flat Die Chicken Animal Feed Pellet Mill:

Main Features of Flat Die Chicken Animal Feed Pellet Mill:

1. Simple structure, wide application range, small floor area and low noise.

2. Powder feeding, no need of adding water. The final feed pellets moisture is low and easy for storage.

3. The results showed that the pellet feed can improve the digestion and absorption of nutrients, and the pathogenic microorganisms and parasites can be killed during pelletizing. The feed pellet is suitable for raising rabbits, fish, ducks and experimental animals.

4. The die of chicken feed pellet making machine has die hole form 1.5 ~ 20 diameters, which is suitable for granulation of different materials and obtains the best results.

Application of Flat Die Chicken Animal Feed Pellet Mill:

This flat die chicken animal feed pellet mill can not only produce feed pellets for chicken, but can also produce feed pellets for pigs, cattle, sheep, rabbits, ducks, cattle, other poultry and animals, etc.

This series small flat die animal feed pellet mill is the most ideal equipment to make feed pellets for home use or small farms.

FAQ:

1. Why there is no pellet output during pelleting?

A: There are usually 2 cases causing this problem:

1). Die holes are corrosion and has poor finish.

2). Large gap between roller and die plate.

The ways to solve this problem are:

1). Clean the remaining pellet in the die hole. 2). Use oil containing material to make pellets for polishing the die hole.

2. Why the Pellets discharged have much powder or no pellets discharged?

A: There are usually 3 cases for causing this problem:

1). Moisture of material is too low.

2). Moisture of material is too high.

3). Too much crude fiber in raw material.

The ways to solve this problem are:

1). Increase water content.

2). Reduce water content.

3). Add more sticky powder.

3. Why the capacity becomes more and more lower?

A: There are usually 2 cases for causing this problem:

1). Large gap between roller and die plate.

2). Moisture of material is too low.

The way to solve this problem:

1). Adjust the gap between roller and die plate. 2). Increase the water content of material.

4. Why are the pellets too hard and bright?

A: Moisture of material is a little low will cause this problem, add more water for the powder material.

5. Why the pellets edge is soft and have rough surface?

A: There are 2 cases for causing this problem:

1). Moisture of material is not suitable. 2). New die for using.

The way to solve this problem:

1). Reduce or increase the moisture of material. 2). Polish the die by using oil containing material.
