Poultry Livestock Hammer Mill Machine Chicken Feed Hammer Crusher U Shaped
Poultry Livestock Hammer Mill Machine Chicken Feed Hammer Crusher U Shaped
Specifications
Brand Name :
AMEC
Model Number :
Chicken feed crushing machine
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T L/C Western Union
Supply Ability :
30 sets/month
Delivery Time :
7-9 work days
Packaging Details :
standard exportation wooden case
Item :
Chicken feed crushing machine
Function :
Crushing corn maize grain wheat into powder
Application :
Industrial chicken feed crushing machine
Capacity :
1-20t/h
Power :
30-110kw
Warranty :
1 year
Price :
Negotiable
Certification :
CE/ISO
Description

Poultry Livestock Hammer Mill Machine Chicken Feed Hammer Crusher U Shaped

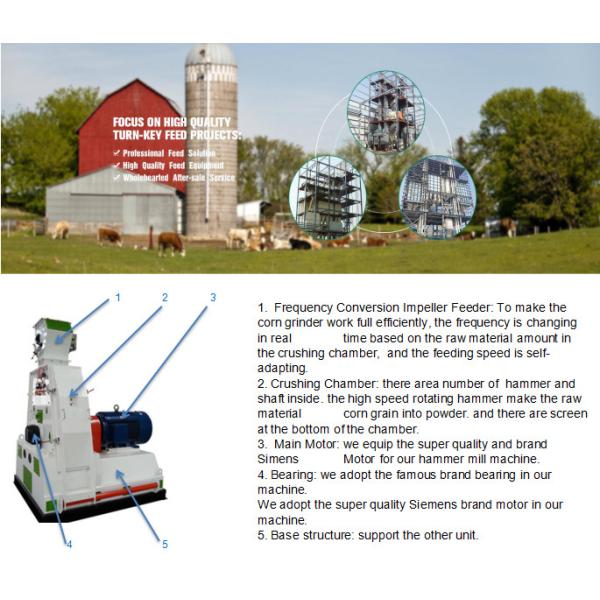

Features of Water Drop Type Chicken Feed Crushing Machine:

1. Application: used for grinding of poultry and livestock and aqua feed.

2. Feeder : has frequency control of motor speed and electromagnetic coupling for choice, that the speed of feed could be adjusted.

3.Structure: “U” shaped double grinding structure, increase the beating frequency of product , guarantee the more uniform particle size, also increase the output.

4. Advantage:equipped with safety control system ,high capacity,smooth running,long service life.

5.The following form is under the condition:raw material is corn,water content ≤14 % , the diameter of sieve hole is 1.0-2.0mm.

Operation Instructions of Water Drop Type Chicken Feed Crushing Machine:

1. The operator should understand thefeed grinder machine structure, and be familiar with the machine performace and operation methods.
2. Please carefully check each connection parts to avoid loose phenomenon.
3. With uniform feeding during the production rather than suddenly more or less to guarantee the motor work underrated load.
4. If strong vibration appears in the operation process, you should immediately stop the machine and find out the reasons, then continue.

Main Parameters of Water Drop Type Chicken Feed Crushing Machine:

Model

Output

capacity(t/h)

Main motor

power(kw)

Hammer

No.(pcs)

Diameter of

the Rotor(mm)

speed of

main shaft

(r/min)

width of

chamber(mm)

Dimension

(mm)

SFSP56x40

12-18

15/18.5

48

560

1440

400

1805×850×1105

SFSP56x60

16-25

22/30

72

560

1440

600

2005×850×1105

SFSP60x40

2--5

30/37

56

600

2930

400

1805×850×1105

SFSP60x60

3-7

45/55

96

600

2930

600

2005×850×1105

SFSP60x80

7-13

75/90

128

600

2930

800

2205×850×1105

SFSP66x60

2.5-9

55/75

64

660

2970

600

2115×1340×1455

SFSP66x80

5-13

90/110

88

660

2970

800

2620×1340×1455

SFSP66x100

7-18

132/160

128

660

2970

1000

3020×1345×1455

SFSP132x36

10-15

75/90

36

1320

1440

360

2320×2016×2113

SFSP132x65

15-20

132/160

64-96

1320

1440

650

2610×2016×2113
