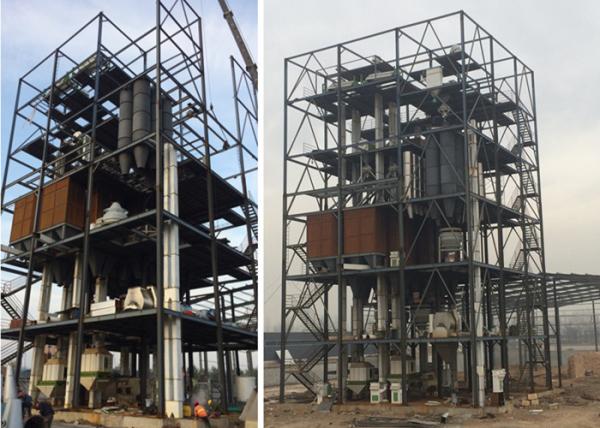

High Output Feed Pellet Production Line , Pellet Manufacturing Equipment

About our Animal Feed Production Process/Line:

Low cost animal feed production process for making feed pellet has the advantages of high output,continuous working ability of feed pellets. It is easy to operate,designed for making animals food: pig,horse, cow, lamb,chicken, duck, goose, rabbit and so on, it can make food for any poultry and livestock.

Flowchart of Animal Feed Production Process/Line:

1. Grinding section:
Before making pellet, the raw materials should be grinded into small pieces. We use hammer mill to grind raw materials into small particle.
2. Mixing section:
use mixer to mix the grinding raw materials to even particles. The mixer have two types: single shaft ribbon mixer and double shaft paddle mixer.
3. Pelleting section:
use pellet mill to make pellet. It is equipped with feeder, conditioner and pellet mill. The feeder can control the feeding amount. Conditioner can

make moisture and temperature of the feed more high, to make pelleting

easily.
4. Cooling section:
The pellet after cooling is more than 2-3 degree than room temperature. The pellet cooler we use is octagon. Octagon type is more beneficial to cool

the pellet. No dead cooling corner.
5. Crumbling section:
Crumbling section is optional. When required pellet is small, can use crumbler to break big pellets into small particles for small poultry like chicken.
6. Sieving section:
We use rotary screener to sieve the pellet. It has three layers sieves.
7. Bagging

Generally speaking,when the oupt is small,you can choose a scale and pack products manually.When the output is big,you can choose a automatic packing machine which include automatic weighing,conveying,and sewing.
