Flat Die Type Animal Waste Organic Fertilizer Livestock Manure Granulator

Introduction of livestock manure granulator

The SKJ series livestock manure granulator is good for press different kind of materials into columnar shape pellets, it is mainly suing for making grass type animal feed pellet making, organic fertilizer pellet making, and small capacity wood pellets making.

The livestock manure granulator working principle, the motor power is transmitted to the main shaft by the transmission mechanism, and the main shaft drives the die to rotate; the material rotates with the die and is forced to be squeezed between the die and the roller, under the above action mechanism, the livestock manure material is continuously pressed into the holes of the flat die, and finally pressed from the die hole to form columnar type pellets, which are finally rolled out from the discharging port through the material discharging device.

SKJ livestock manure granulator working, the feeding materials should be after fermentation. raw materials moisture less than 30%.

The chicken manure granulator can make different diameter size of pellets from diameter 2mm to 10mm, by change the machine inside flat die, but other parts no need change. The output livestock manure fertilizer pellets with columnar shape, and if you want to making ball like pellets, we can provide the ball shaper machine to connecting with the flat die pellet machine. Which can process the columnar type pellets into small ball type pellets.

The flat die livestock manure granulator machine can press different kind of animal waste into organic fertilizer, such as chicken dung, cow dung, sheep dung, and other animal waste or other wsate from livestock farm... The output pellets is good fertilizer for crop planting using.

Mainly Parameter of livestock manure pelletizer machine

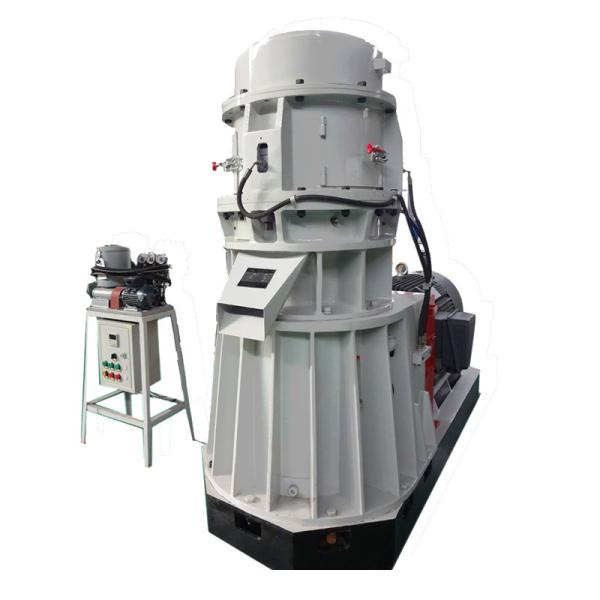

Photos of the livestock manure granulator:

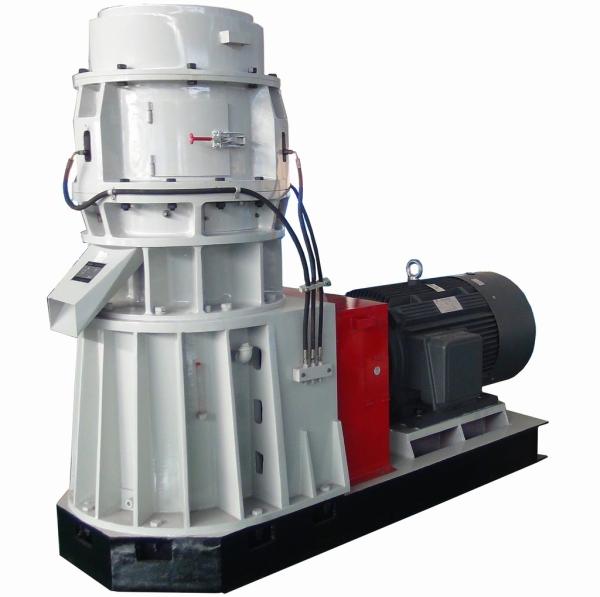

The photos of organic fertilizer livestock manure pelletizer machine:
