Specifications
Brand Name :
DEXI
Model Number :
GHG
Certification :
CE ISO
Place of Origin :
SHANDONG, CHINA
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets/ month
Delivery Time :
10-20 working days
Packaging Details :
Wooden box, Steel frame box, bulk into container
Condition :
New
Type :
Rotary Dryer Drum
Material :
Carbon Steel
Fuel :
wood blocks
Voltage :
can be customized
Power(kw) :
15-160
Warranty :
1 Year
Application :
biomass pellet making
Installation :
Engineer guidance installation
Raw material :
sawdust
Description

China hot sale Rotary Dryer Drum for drying Wood Chips/ Sawdust / Mineral Powder

Product Introduction of Rotary Dryer Drum:

GHG rotary dryer drum with heating furnace, feed port, rotating cylinder, delivery pipe, dust collector and discharge port. Wet material is continuously sent to the drying cylinder by a conveyor. Heat air makes full contact with the material. Being delivered and scattered by the high-speed hot air, water in the wet material is evaporated. The material gets fully dried in the rotating cylinder. GHG rotary dryer drum is widely used in industries like biomass fuel, wood pellet fuel, sawdust briquette, farming etc. The applicable materials are wood powder, wood shavings, sawdust, wood chips, straws, grass, etc

The drying body of rotary dryer drum is composed of cylinder body, ring gear and rolling ring. The rotary dryer drum drying body is on the tug rolling device and block rolling device supported by front and back rolling ring. It can control axial direction traversing of drying body by adjusting tug rolling device and block rolling device. The rotary dryer drum driving device drives drying body rotating through the ring gear. Electric motor (frequent) as the power can achieve stepless speed adjusting and meet the demand of different rotating speed.

The rotary dryer drum driving has two forms, left driving and right driving. Method of distinction: look at from the direction of inlet, the rotary dryer drum driving device that is at the left side of drying body is left driving; the driving device that is at the right side of drying body is right driving.

Main Parameters of rotary dryer drum:

Model
Power(kw)
Fan power(kw)
GHGΦ1.2×12×1
5.5
15
GHGΦ1.4×12×1
7.5
22
GHGΦ1.5×12×1
7.5
30
GHGΦ1.5×15×1
11
30
GHGΦ1.6×15×1
11
37
GHGΦ1.6×18×1
11
37
GHGΦ1.8×12×1
11
30
GHGΦ1.8×15×1
15
30
GHGΦ1.8×18×1
15
45
GHGΦ1.8×20×1
15
45
GHGΦ1.8×24×1
18.5
45
GHGΦ2.0×18×1
15
45
GHGΦ2.0×20×1
18.5
45
GHGΦ2.0×24×1
18.5
45
GHGΦ2.2×20×1
18.5
75
GHGΦ2.2×24×1
18.5
75
GHGΦ2.5×20×1
22
75
GHGΦ2.5×24×1
22
75
GHGΦ2.8×20×1
22
75
GHGΦ2.8×24×1
22
75
GHGΦ2.8×28×1
30
75
GHGΦ3.0×24×1
30
132
GHGΦ3.0×28×1
30
132
GHGΦ3.5×20×1
37
160
GHGΦ3.5×24×1
37
160

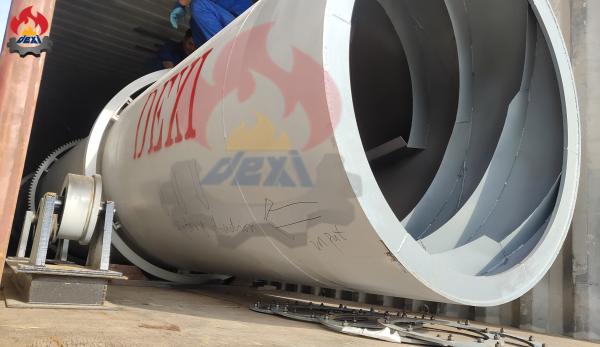

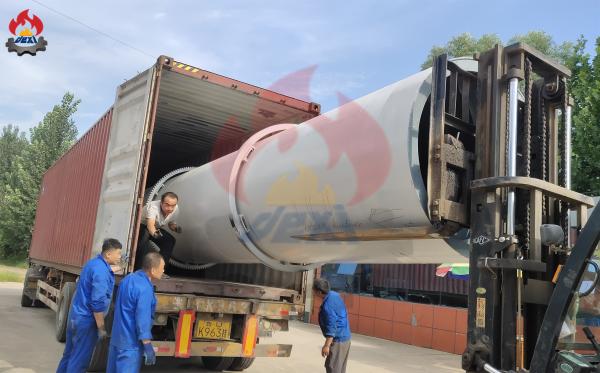

Product photos of rotary dryer drum:

GHG Drum Rotary Single Layer / 3 Layers  Wood Chips Sawdust Drum DryerGHG Drum Rotary Single Layer / 3 Layers  Wood Chips Sawdust Drum Dryer

GHG Drum Rotary Single Layer / 3 Layers  Wood Chips Sawdust Drum DryerGHG Drum Rotary Single Layer / 3 Layers  Wood Chips Sawdust Drum DryerGHG Drum Rotary Single Layer / 3 Layers  Wood Chips Sawdust Drum DryerGHG Drum Rotary Single Layer / 3 Layers  Wood Chips Sawdust Drum DryerGHG Drum Rotary Single Layer / 3 Layers  Wood Chips Sawdust Drum DryerGHG Drum Rotary Single Layer / 3 Layers  Wood Chips Sawdust Drum DryerGHG Drum Rotary Single Layer / 3 Layers  Wood Chips Sawdust Drum DryerGHG Drum Rotary Single Layer / 3 Layers  Wood Chips Sawdust Drum DryerGHG Drum Rotary Single Layer / 3 Layers  Wood Chips Sawdust Drum DryerGHG Drum Rotary Single Layer / 3 Layers  Wood Chips Sawdust Drum DryerGHG Drum Rotary Single Layer / 3 Layers  Wood Chips Sawdust Drum Dryer

OUR SERVICE


Pre-sale service
1. Our professional and experienced team helps every client to find his most suitable biomass wood pellet machine and chose the correct chipper, crusher, dryer and other machines for a complete biofuel pellet production plant line.
2. Any kind of legal logo printing or design are available.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

After you choose:
1. We will arrange production immediately based on customer's demand.
2. Empty loading running test once machine finished production.
3. Every equipment will be checked carefully before packing, take photos and video to you for confirmation.
4. Help you arrange shipment booking, machine delivery and help you for your importing documents.

After-sale service
1. 24hours on-line serivce, guide you doing installation and starting using for the purchased machines.
2. Video communication guide your local worker doing installation and commissioning, and normal maintenance.
2. We also can send engineers to customer's factory doing the guide installation for biomass pellet machine line and other big machines.


FAQ
Q. What is your payment term?
A: T/T 30% down payment, balance to be paid before shipment.

Q: What is your main market?
A: Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia

Q: What is your delivery time?
A: Producing time depends on which machines you ordered. Roughly all machines we have instock, some new produce produts takes 10 - 30 days.

Q: What documents you can offer?
A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff.

Q: If equipments have some quality problem, how would you deal with?
A: We will responsible for all the quality problems. Change all the parts for free.
