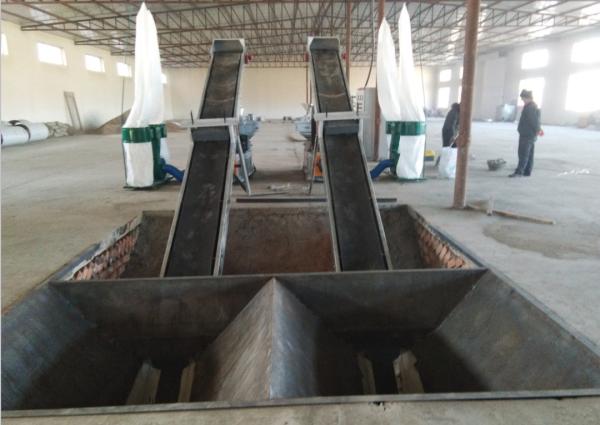

PSJ Wood Sawdust Belt Conveyor Machine 0.7m/s Conveying Equipment
PSJ Wood Sawdust Belt Conveyor Machine 0.7m/s Conveying Equipment
PSJ Wood Sawdust Belt Conveyor Machine 0.7m/s Conveying Equipment
PSJ Wood Sawdust Belt Conveyor Machine 0.7m/s Conveying Equipment
Specifications
Brand Name :
Dexi
Model Number :
PSJ
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
7-15 work days
Packaging Details :
iron sheet case or bulk into container
Name :
Belt Machine
Type :
Belt
Power :
1.5kw
Conveying speed :
0.4-0.7m/s
Capacity :
17.2～30.2m³/h
Conveying angle :
19-29°
Belt conveyor length :
6m—20m
Belt conveyor width :
500mm
Description

1.5-7.5kw Belt Machine for wood sawdust on sale

1, Products Introduction

PSJ type belt machine is conveyor tape as a bearing, transportation of materials equipment, with simple structure, reliable balance for work, easy operation and maintenance, low noise, large transport and low energy consumption advantages. The products are widely used in food, feed, chemical, pharmaceutical, mining and other industries.

2. Main Structure and Work Process

The Belt machine belt consists of electric roller, driven roller, tensioning device, belt,frame other components. When working, by the electric roller rotation, through the friction between the roller and belt drive belt around the main and driven roller running.

And then the material on the belt from feed side is sent to the outlet, and throwing out under gravity.

In order to meet transporting different materials, our company also can be designed according to the special requirements of customers to adjust its speed.

3. Maintenance

The belt machine and its main components should be well maintained according to the instructions, the moving parts and cleaning device for regular inspection, adjustment, maintenance and cleaning, these operations should be in static and close the driving device to carry out.

4. Main Parameter

Model PSJ50 PSJ65 PSJ80 PSJ100
Power: (kw) 1.5 2.2 3～5.5 4～7.5
Conveying speed:(m/s) 0.4-0.7
Capacity:(m³/h) 17.2～30.2 23～40.3 27.3～47.8 37.4～65.5
Conveying angle :° 19-29
Belt conveyor length: (m) 6m—20m 6m—20m 6m—20m 6m—20m

Belt conveyor width:(mm)

 500 650 800 1000
