CE ISO XGJ560 Hard Wood Pellet Machine 3PH 380V Fuel Pellet Making
CE ISO XGJ560 Hard Wood Pellet Machine 3PH 380V Fuel Pellet Making
Specifications
Brand Name :
DEXI
Model Number :
XGJ560P
Certification :
CE ISO
Place of Origin :
Shangdong, CHINA
MOQ :
1 set
Price :
Negotiated
Supply Ability :
50 SETS / MONTH
Delivery Time :
10-20 Working days
Packaging Details :
wooden box / iron sheet box / bulk into container
Type :
vertical ring die
Power :
90kw
Ring die :
double layer type
Roller :
2 rollers
Machine gurantee :
2 years
Power standard :
380v, 50hz, 3PH
After-sales service provided :
Engineers available
Condition :
new
Application :
Fuel pellets
Color :
gray, yellow
Pellet size :
5-8mm
Description

XGJ560 Vertical Ring Die Biomass Energy Hard Wood Pellet Maker

Introduction for wood pellet maker:
XGJ560 pellet maker is our main product which has adopted the essence of pellet mill in oversea market and domestick market.


Pellet maker with vertical ring die structurer, the inner ring die verticall installed on the biomass pellet mill, with 2 layers, one ring die can using 2 times, saving the running cost for the wood pellet mill.

Wood pellet maker have 2 pcs Big rollers rotary againsed the innerside of ring die inside, so big part ring die fixed on machine, only rollers rotary, make the wood pellet machine working more stable, and continually no stop working.

This biomass pellet maker machine mainly applicable for difficult molding materials with low adhesion rate, for example, hard wood sawdust, soft wood sawdust, rice husk, sunflower husk, peanut shell and coffe husk, or other fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks, and other biomass materials.

Mainly Parameters for wood pellet maker :

Model

Power

(kw)

Capacity for

wood pellets(kgs/h)

Weight of the

machine(kgs)

Dimension of the

machine (mm)
XGJ560 90+1.5+0.37+1.5 1000-1500 6100 2600x1300x2300
XGJ560P 132+1.5+0.37+1.5 1500-2000 4600 2600x1250x1600
XGJ850 220+3+0.37(0.55)+2.2 2000-3000 14500 3300x1400x3100
XGJ850P 220+3+0.37(0.55)+2.2 2500-3500 9600 2600x1600x1950

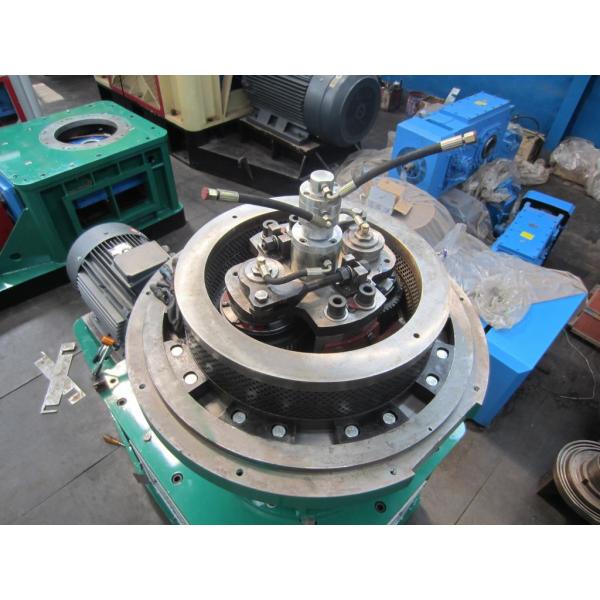

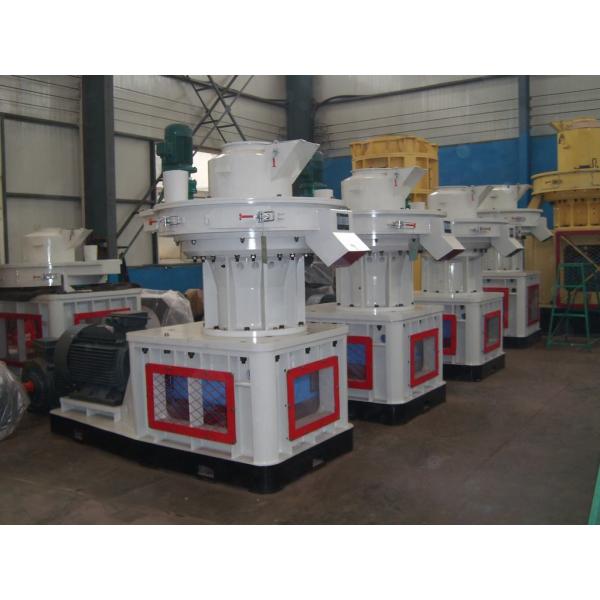

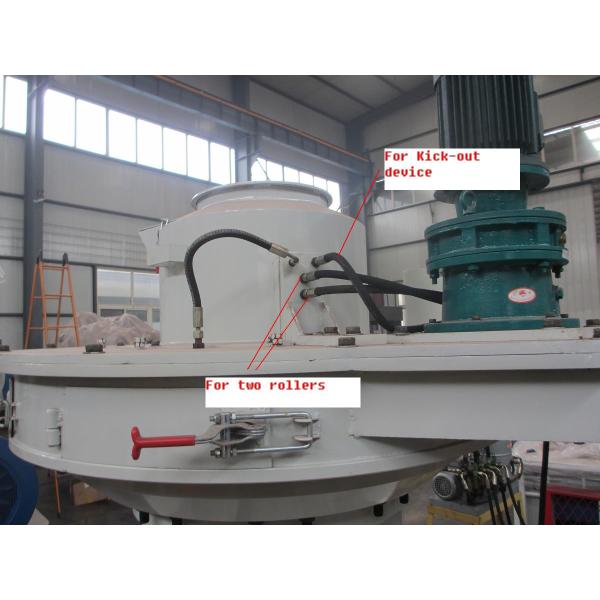

Photos of wood pellet maker:

CE ISO XGJ560 Hard Wood Pellet Machine 3PH 380V Fuel Pellet MakingCE ISO XGJ560 Hard Wood Pellet Machine 3PH 380V Fuel Pellet Making
CE ISO XGJ560 Hard Wood Pellet Machine 3PH 380V Fuel Pellet Making

CE ISO XGJ560 Hard Wood Pellet Machine 3PH 380V Fuel Pellet Making

CE ISO XGJ560 Hard Wood Pellet Machine 3PH 380V Fuel Pellet Making

Sucessful Case for biomass pellet mill customers:

We have installed many complete biomass pellet mill line in domestic and oversea, such as pellet making line in Malaysia, India, Indonesia, Vietnam, Myanmar....

CE ISO XGJ560 Hard Wood Pellet Machine 3PH 380V Fuel Pellet Making

CE ISO XGJ560 Hard Wood Pellet Machine 3PH 380V Fuel Pellet Making

CE ISO XGJ560 Hard Wood Pellet Machine 3PH 380V Fuel Pellet Making

Customers Visiting:

Welcome you visiting our company for more deply communication about the biomass pellet mill.

There are many photos for our cusotmer visited us before, hope it can give you a rougly idea about our biomass pellet mill and our company.

CE ISO XGJ560 Hard Wood Pellet Machine 3PH 380V Fuel Pellet Making
