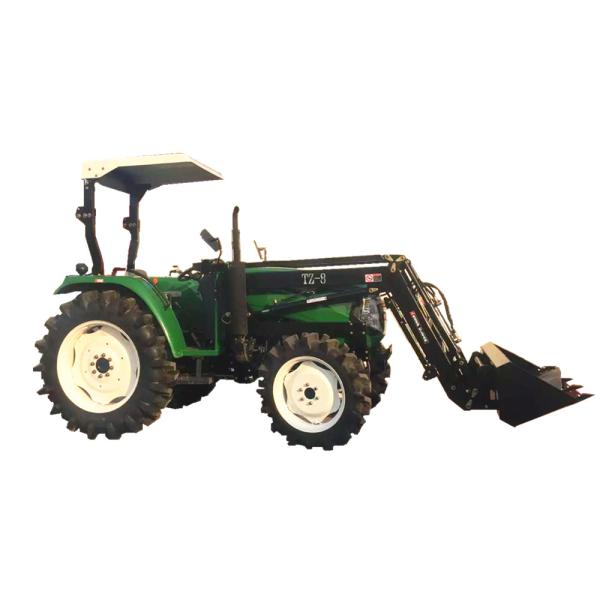

60/65HP farm tractor TT604TT654 4*4 4wheel drive Agricultural farm equipment
60/65HP farm tractor TT604TT654 4*4 4wheel drive Agricultural farm equipment
Specifications
Brand Name :
KATOP
Model Number :
TT604/TT654
Certification :
CE
Place of Origin :
Shandong
MOQ :
8 units
Payment Terms :
L/C, T/T
Supply Ability :
300 UNITS per month
Delivery Time :
15 days
Packaging Details :
Iron frame in 20GP container
Engine :
YUCHAI 498 TURBO
Power :
44.1KW (60HP)/47.8KW(65HP)
Driving Type :
4*4
Weight :
2.285ton
Dimension :
3579*1750*2105mm
Clutch :
10 inch , Dry-type, Double-acting
Gear box :
12F+12R
Size of Tire :
Front:8.3-20 Rear: 12.4-28
Wheel base :
2016mm
Min.Ground Clearance :
325mm
Description
MODEL TT604 TT654
DRIVE TYPE 4*4 4*4
ENGINE
ENGINE YUCHAI 498 Turbo YUCHAI 498 Turbo
OIL TANK(L) 38 38
Rated speed (r/min) 2400 2400
ENGINE RATED POWER (Kw) 44.1 47.8
MIN OIL CONSUPTION(g/kw·h) ≤242 ≤242
Minimum fuel consumption at full load( L/h) 9.26 10.04
TRANSMASSION
CLUTCH 10 inch dry, double-acting clutch 10 inch dry, double-acting clutch
PTO SPPED(rpm) 540&720 540&720
SHAFT 12F+12R 12F+12R
HYDRUALIC VALVE 1-Way 1-Way
Three point linkage
lifting force at 610mm KN ＞15 ＞15

Technical parameters
Dimension LxWxH mm 3579*1750*2105 3579*1750*2105
WEIGHT(KG) 2285 2285
WHEEL BASE(mm) 2016 2016
FRONT TREAD(mm) 1300 1300
REAR TREAD(mm) 1300 1300
MIN GROUND CLEARENCE (mm) 325 325
FRONT WHEEL 8.3-20 8.3-20
REAR WHEEL 12.4-28 12.4-28
EXW $9620 $9700
