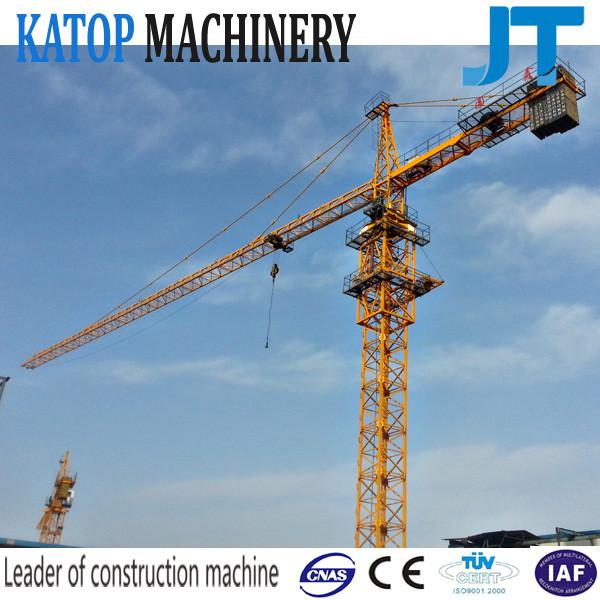

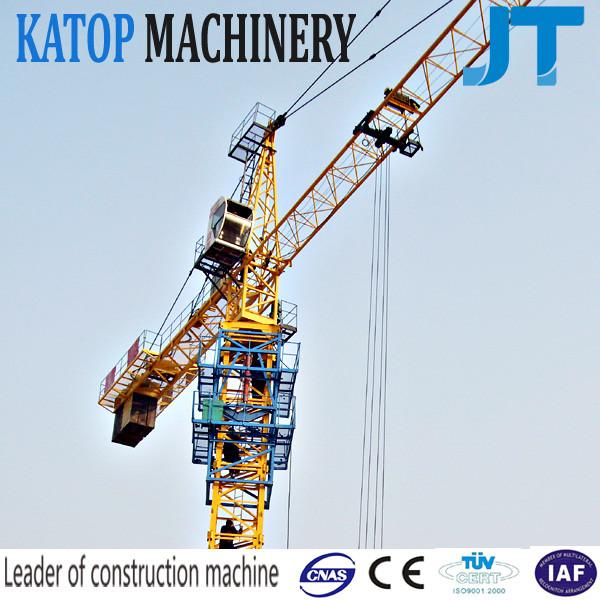

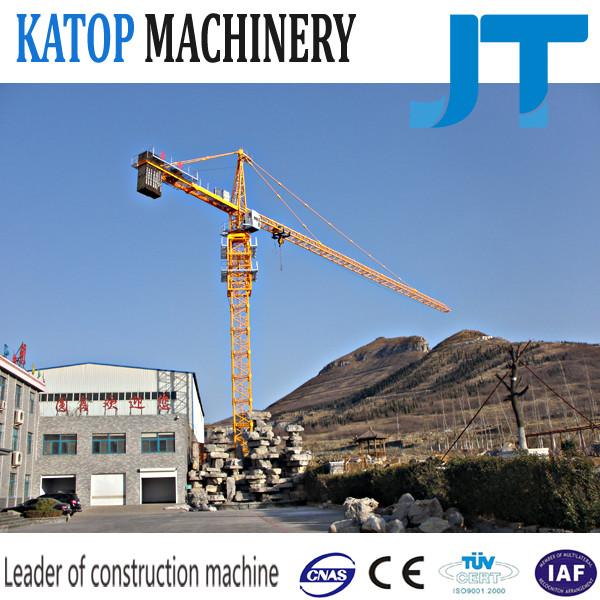

Building tower crane 1t~4t load TC5010 with factory price

Specifications

Place of Origin :

Shandong, China

Brand Name :

Katop

Certification :

CE, ISO9001

Model Number :

TC5010

MOQ :

1 UNIT

Price :

21,000.00~28,000.00

Packaging Details :

Nude packed, well fixed, uninstalled

Delivery Time :

within 20~30days after receipt the deposit

Payment Terms :

30%TT in deposit, the balance 70%TT before shipment or by LC at sight

Supply Ability :

30units/month

Description

Series: QTZ50 series;

Model: TC5010/5010

Work Features: Working range: 3~50m; Max.load capacity: 4.0t; Tip load capacity: 1.0t; Lifting height: 30~150m; 540 degree slewing;

Mast section: 1.615*1.615*2.5m; Main limb: ∠160x14 or □135x10;

Installation Structures: Bottom beam: "#" type and "+" type; With counter weight; with basic mast section and standard mast section; hydraulic jacking systerm; with Hammer top;

------------------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Techanism Parameters

Item					meaurement		Fall
							α=2		α=4
Max lifting torque					kN.m		600
Max loading					T		2		4
Working range					M		3 ～ 50
Tip load					T		1		1
Max loading range					M		28		15
Independent height			independent			M	30
			adhered				120		60
dimension	base					M	6.2*6.2
	height			indenpendent			46.3
				adhered			126
	top of the jib to slewing center						51.2
	Tail of the balance jib to slewing center						11.06
weight			independent(without balance weight)			T	25.5
			adhered(without balance weight)			T	48.5
Balance weight						T	10.2
others		Motor power				KW		25.82
		the wind speed of the top of the tower				m/s		Working ≤20
								jacking working ≤13
		Working temperature				⁰C		-20～+40

2. Mechanism Structures:

Mechanism loading rate

Lifting mechaanism

JC 40%

Slewing mechanism

JC 40%

Trolley mechanism

JC 40%

Trolley mechanism

motor

model

YEZS100L-4/6

Rotationalspeed

r/min

1380

720

power

2.2

1.5

Steel rope

model

6×19-7.7-1550

speed

m/min

39/27

Trolley speed

m/min

39/27

Lifting mechanism

motor

model

YZTD200-4/8/24

Rotational speed

r/min

1440

720

220

power

reducer

Center distance

450

transmission ration

12.64

reel

Dia

Φ330

Roping layers

layer

Drum capacity

280

Rotational speed

r/min

114

11.4

Brakestaff

model

YWZ-250/45-10

Braking force

400

Steel rope

traction

10000

model

6×19-12.5-1770-I

Lifting speed

m/min

Rated loading capacity

1/2

2/4

Min stable decline speed

m/min

≤7

Total weight

1.2

Slewing mechanis

motor

model

YZR132M2-6

Rotational speed

r/min

908

power

3.7

Slewing speed

r/min

0.62

Jacking mecahnism

Pump station

Working pressure

Mpa

power

Oil pump model

CBN-F306

3. Lifting Capacity:

FALL=4

Range(m)	3-15	16	17	18	19	20	22	24	26	28	30
Lifting (t)	4	3.73	3.5	3.29	3.10	2.93	2.64	2.39	2.19	2.01	1.86
Range (m)	32	34	36	38	40	42	44	46	48	50
Lifting (t)	1.72	1.61	1.5	1.41	1.32	1.24	1.18	1.11	1.05	1.00
