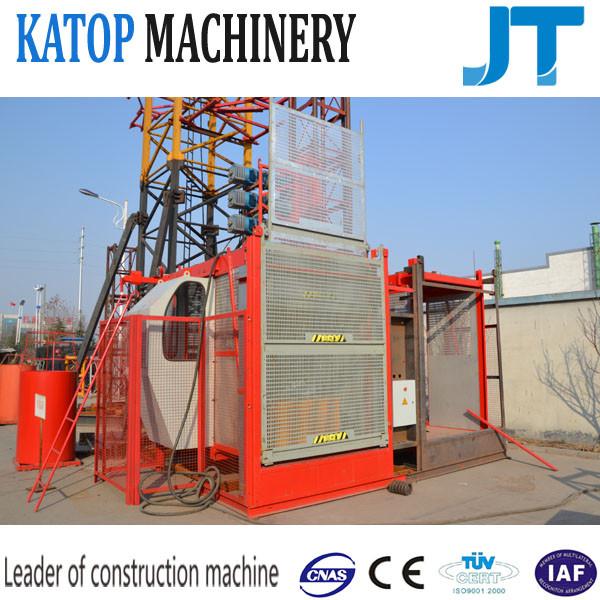

New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting
New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting
New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting
New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting
New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting
New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting
New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting
New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting
Specifications
Brand Name :
Katop
Model Number :
SC200/200
Certification :
CE, ISO9001
Place of Origin :
Shandong, China
MOQ :
1 UNIT
Payment Terms :
30%TT in deposit, the balance 70%TT before shipment or by LC at sight
Supply Ability :
60units/month
Delivery Time :
About 30-50workdays after receipt the deposit;
Packaging Details :
Nude packed, well fixed, uninstalled
Cage :
Double cages
Rated load :
2000kg/cage
Max.lifting height :
300m
Power supply :
motors matched with reducer
Description

New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting

New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting

1.Factory supply, ISO&CE Approved , low price and excelent quality, with adhered section optional

2.Installation support including oversea service, help customers to install and adjust the production well

3.Good after-sales service with 1 year warranty and in time supply of spare parts

Advantages of SC200/200 Construction Hoist

1.Facory direct offer, low price

2.Low operating cost but high efficiency;
3.Simplicity in operation;
4.High degree of safety;
5.Long durability;

6. Low energy consumption.

Technical Paramaters of SC200/200 Construction Hoist

Type

Construction Lifter Elevators SC200/200

Place of Origin

Jinan Shandong, China (Mainland)

Brand Name

KATOP

Model Number

SC200/200

Drive Type

Hydraulic

Lift Mechanism

Lift Chain

Lift Drive / Actuation

Electric Motor

YZZ132M-4

Power 11*3*2kw

Rated Loading Capacity

2*2000kg

Rated passengers

2*12

Max. Lifting Height

150m/300m

Maximum Lifting Weight

2 ton per cage

Construction Hoist

Construction Hoist

Cage inner dimensions L*W*H

3*1.5*2.45m/3*1.3*2.45m

Dimension of standard section

0.65*0.65*1.508m/0.8*0.8*1.508m

Rating hoisting speed

33/36 m/min

Gear reducer

center distance

125mm

transmission ratio

1:16

Safety device

form

incremental

spead of action

51.6m/min

braking torque

≥3000N.m

New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting

Specifications of SC200/200 Construction Hoist

1. Stable running and comfortable adaptability;

2. It is equipped with fully safety devices to guarantee the safe working;

3. The transmission system adopts two-drive motors and three-drive motors.

4. Simple electrical control system, easy operation and convenient maintenance withlow failure rate.

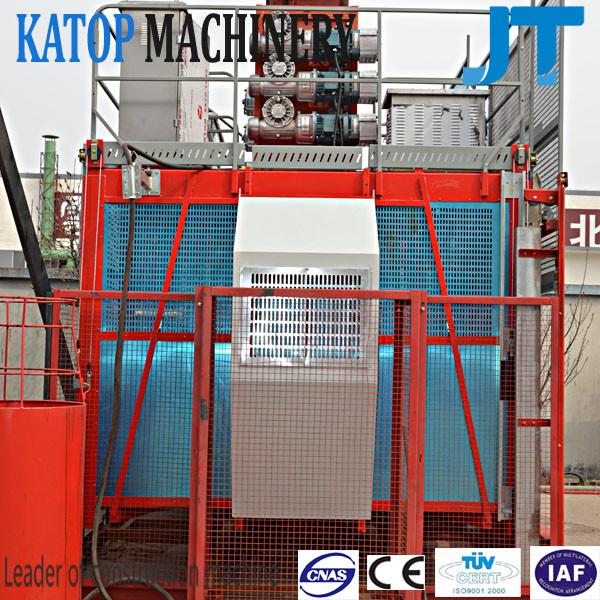

The parts of construction hoist

New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting

New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting

New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting

Packaging & Shipping

Delivering of Katop Machinery

1.Short delivery time, normally within 30 workdays;

2.All products will be well fixed;

3.More easy wear spare parts will be attached for free;

4.The transportation will be safe and stable;

Our Services

Our Services

1.All of our machines will be with 1 year warranty after receipt the destination port;

2.More easy ware spare parts will be attached for free;

3.Oversea service are available from us, our experts will help you to install and adjust the

construction lifter in your area;

4.Technology support for maintenance and maintenance spare parts will be supplied in time;

New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting

Why Choose US?

1. Experience. More than 10 years of experience in manufacturing construction hoist, assured

good quality.

2. Price. We supply factory direct price, will save your cost than buy from distributors or other

factories;

3.Excellent quality. All materials from famous plants to ensure the long time use and safety, and

we are one of the suppliers of standard mast for XCMG.

4. Services. Professional service team can give powerful support for our products. Engineers have

more than 10 years' experience in products and ready to solve all your problems.

5. Innovation. Technical and management innovation guarantee our quality to be in top position

in our industry.

Parts of Construction Hoist

1. Cages

New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting

2. Mast section

New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting

3. Distributer

New advanced tech 2t load competitive price double cage hoist SC200/200 for construction lifting
