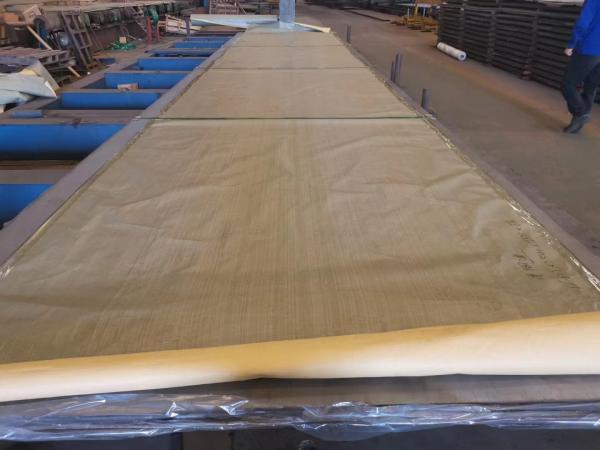

Duplex Carbon Steel Stainless Steel Clad Plate Heat And Water Resistance
Duplex Carbon Steel Stainless Steel Clad Plate Heat And Water Resistance
Specifications
Brand Name :
RUISEN
Place of Origin :
CHINA
Delivery Time :
60-90DAYS
Packaging Details :
PROTECT PACKING
Material :
Aluminium, Carbon steel, Copper, Titanium
Application :
Engineering for oil&gas, chemical industry
Process :
explosive bonding and hot rolled
Description
  • Duplex stainless steel Carbon steel Explosive Welding Clad Plates
  • Q235B+2205 9+3 x2504x12375mm
  • EN10204 TYPE3.2 available.
  • CARBON =0.23 wt%, CEQ=C+Mn/B+ (Cr+Mo+V)/5 +(Cu+NI)/15=0.43 wt%;
  • NACE MR0175 available.

  • -Advantages

    1, High bonding strength: the energy of explosive explosion makes the base plate(Carbon steel ) impact the clad plate(Stainless steel, Copper, Titanium, etc.) at high speed, generating high temperature and high pressure to achieve solid-phase welding of the interface of the different metals. Ideally, the shear strength of the interface can reach 400Mpa/mm2.

  • 2, Multi-metal bonding: Make the different metals to bonding well, even if these metal are in different melting point, strength, thermal expansion coefficient…, such as: aluminum, copper, titanium, stainless steel and other metals.

  • 3, The thickness range of clad plate is large.
